Sony MHC-V5 - ARAGON Board-2; ARAGON Board-3

MHC-V5
16

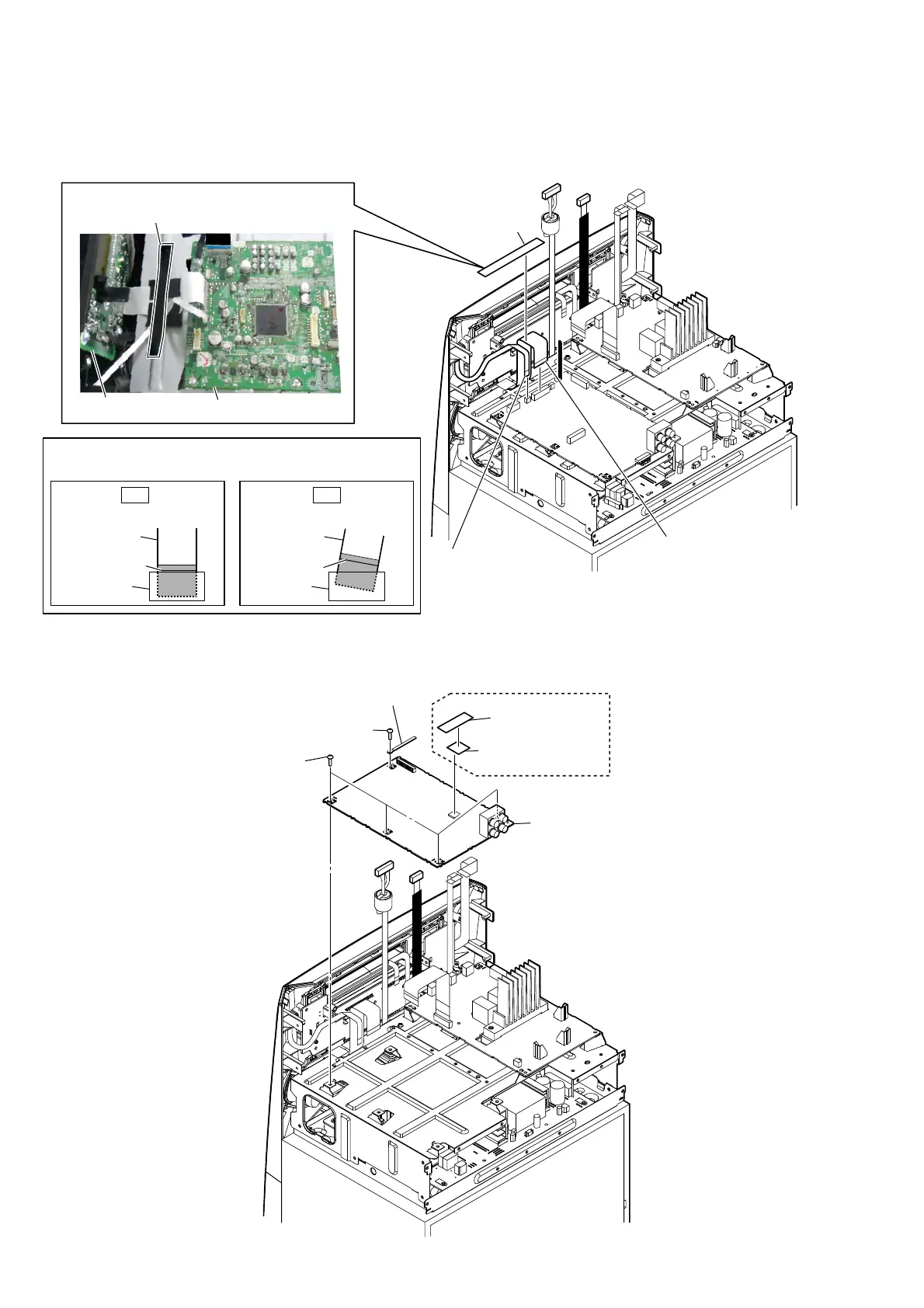

2-11. ARAGON BOARD-3
– Top rear view –
1 screw
(BV/RING)
1 four screws
(BV/RING)
2 coating clip
5 ARAGON board
4 sheet
(EMC-absober)
(US)
3 filament tape
(sub material)
:LUHVHWWLQJ
ARAGON board
FL board
cushion (H)
3 wire (flat type) (23 core)
(CN109)
2 wire (flat type)
(8 core)
(CN105)
1 cushion (H)
–7RSUHDUYLHZ–
Note:
When installing the wire (flat type),
ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type) wire (flat type)
connectorconnector
OK NG
2-10. ARAGON BOARD-2
• Continued on 2-11.
