Sony MHC-V5 - How to Bend Wire (Flat Type)

MHC-V5
34

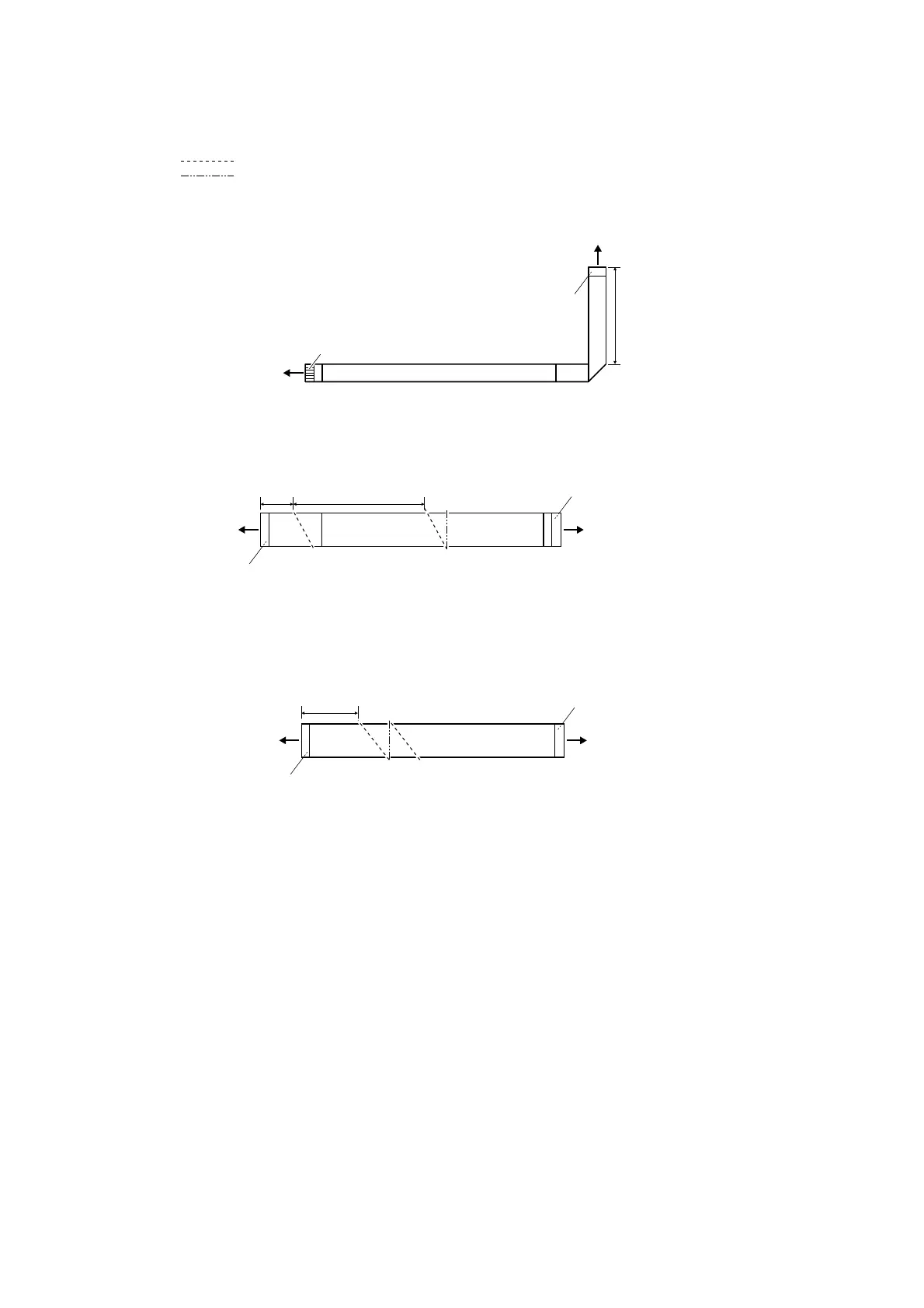

2-30. HOW TO BEND WIRE (FLAT TYPE)
IOH[LEOHIODWFDEOHFRUHOHQJWKPP5HI1R))&
IOH[LEOHIODWFDEOHFRUHOHQJWKPP5HI1R))&
ZLUHIODWW\SHFRUHOHQJWKPP5HI1R))&
The upper side
is terminal side.
ARAGON board
(CN302)
ARAGON board
(CN110)
D-AMP board
(CN1006)
ARAGON board
(CN851)
optical pick-up
The lower side
is terminal side.
: Mountain fold
: Valley fold
tuner unit
105 mm20 mm
The lower side
is terminal side.
The lower side
is terminal side.
40 mm
The lower side
is terminal side.
The lower side
is terminal side.
55 ± 1.5 mm
