Sony MVS-3000A System - Video Transitions Using Wipes or Mixes

48
Video Switching (Transitions)
Basic Image Creation Operations

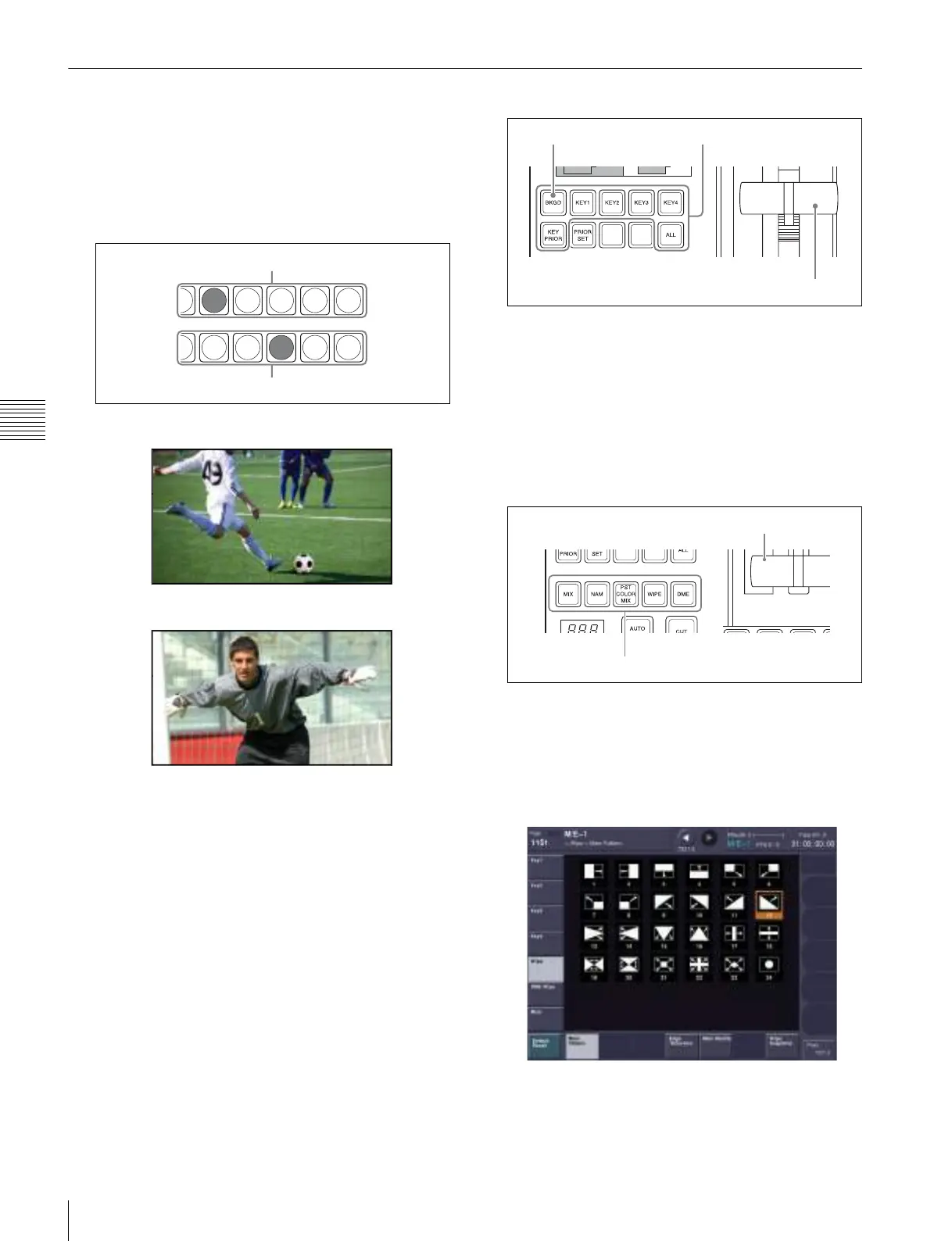

Video Transitions using Wipes or Mixes
In a wipe or mix, the video changes gradually.
The following describes the M/E-1 bank, as an example.
1 Select the video you want to display first in the
background A row, and then select the video to display
post-transition in the background B row.
Cross-point control block
Background A video
Background B video
2 Select the portion of the image to change using the
transition.
a Press one of the next transition selection buttons in
the transition control block, turning it on.
• [BKGD] button: Changes the background.
• [KEY1] to [KEY4] buttons: Inserts (or deletes)
key 1 to key 4, respectively.
In this example, press the [BKGD] button.
Transition control block
3 Select the type of transition (1 p. 45).
a Press one of the following transition type selection
buttons, turning it on.
• [MIX] button: Go to step 5.
• [NAM] button: Go to step 5.
• [WIPE] button: Go to step 4.
• [DME] (DME wipe) button (1 p. 50)
Transition control block
4 If the [WIPE] button is selected in step 3, choose a
wipe pattern.
a Open the M/E-1 >Wipe >Main Pattern menu
(1151).
Main Pattern menu
b Press the desired pattern to select it.
In this example, select “12”.
Background A row
Background B row
BKGD button Next transition selection buttons
Fader lever
Transition type selection buttons
Fader lever
