Saving DME Wipe Settings in a DME Wipe Snapshot
Basic Image Creation Operations
Saving/Recalling a DME Wipe Snapshot
A “snapshot” is a function where the various settings
required to apply a particular effect to an image are saved
in memory as a set of data, for recall as required, to
reproduce the original conditions.
There are various kinds of snapshot. The description in this
section uses a DME wipe snapshot.
As an example, the picture-in-picture data configured in
the previous section is registered as a DME wipe snapshot
and then recalled to reproduce the image.
The following describes the M/E-1 bank, as an example.
1 Register the DME wipe snapshot in a button.
a In the Flexi Pad, press the [DME WIPE] button.
b Press the [M/E1] button.
c Holding down the [DME WIPE] button, press the
button you want to register (0 to 9).
The button lights yellow when successfully
registered.
Buttons that are lit already have a registered DME
wipe snapshot. Pressing one of these buttons will
overwrite the existing contents.

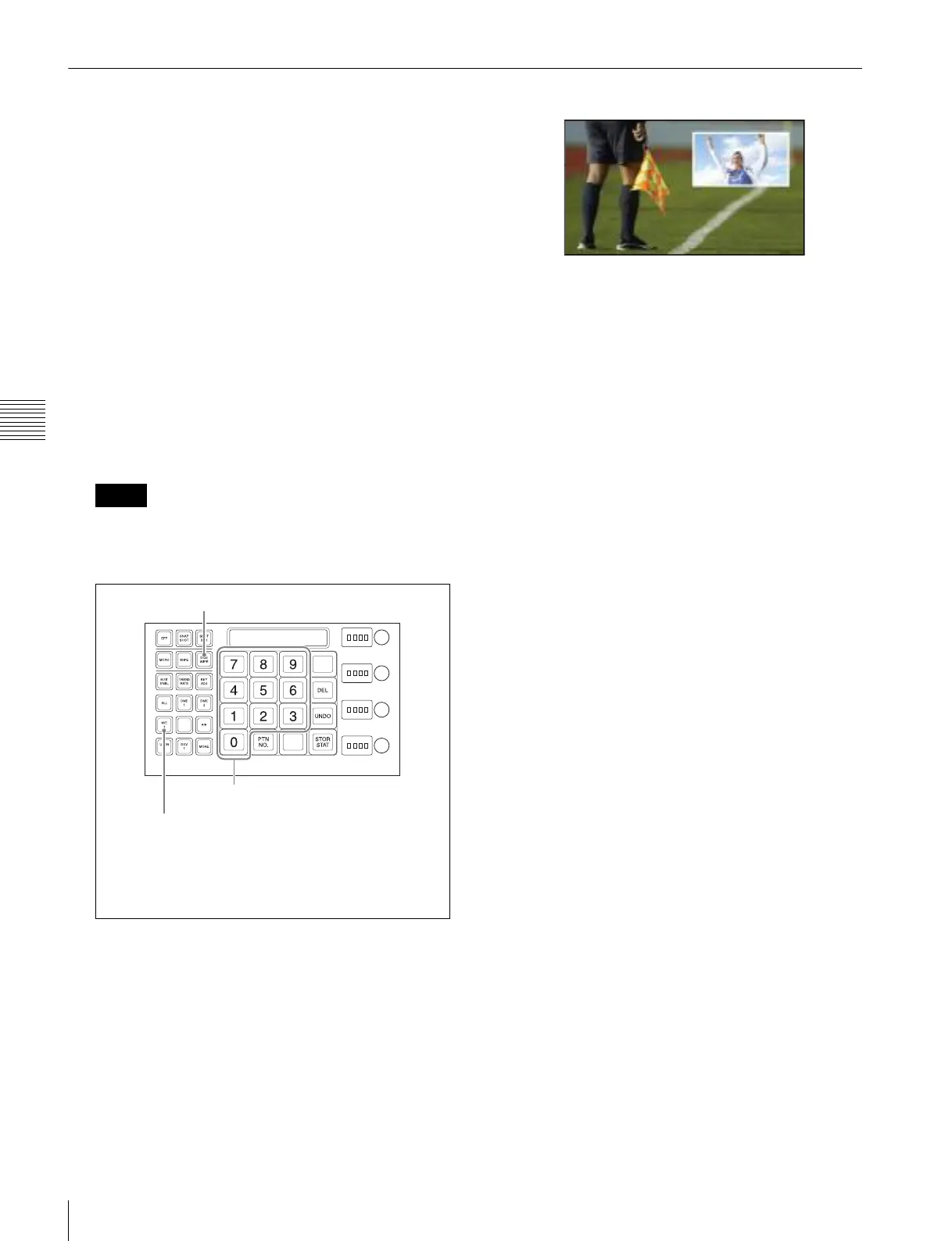

Flexi Pad
2 To check that the DME wipe snapshot is registered
correctly, use another operation to alter the settings
and then recall the registered DME wipe snapshot.
a Press the [DME WIPE] button.
b Press the [M/E1] button.
c Press the button registered in step 1.
The registered DME wipe settings are immediately
recalled.
Recalled DME wipe pattern and border setting
Notes
DME WIPE button
[0] to [9] buttons
M/E1 button
MVS-6520/3000A diagram shown.
On the MVS-3000, the [DME1] and [DME2] buttons are not
displayed.
On the MVS-6530, the [M/E2] button is also displayed.
