2-9. SWITCHING REGULATOR
5SWITCHING REGULATOR
2 sub chassis
6 chassis
3saranet cushion
1 four screws
(+BV3 (3-CR))
4 nine screws
(SCREW, WASHER (M3))

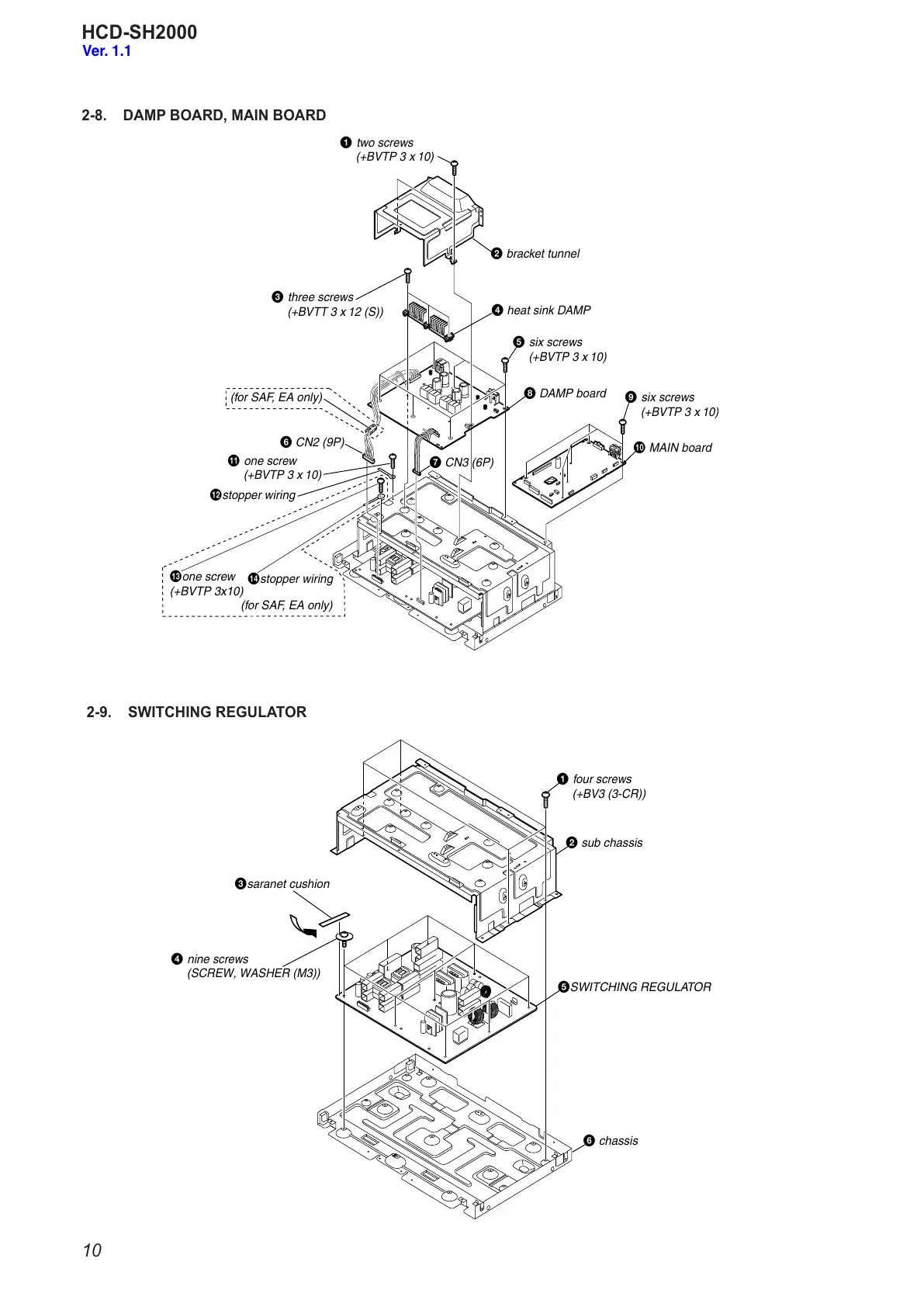

2-8. DAMP BOARD, MAIN BOARD
1 two screws
(+BVTP 3
x 10)
q; MAIN board
8 DAMP board
4 heat sink DAMP
2 bracket tunnel
9 six screws
(+BVTP 3
x 10)
3 three screws
(+BVTT 3
x 12 (S))
5 six screws
(+BVTP 3
x 10)
qa one screw
(+BVTP 3 x 10)
6 CN2 (9P)
qsstopper wiring
qdone screw
(+BVTP 3x10)
qfstopper wiring
7 CN3 (6P)
(for SAF, EA only)
(for SAF, EA only)
