Sony MX - DMB21 Board; CDM Section

HCD-SH2000
8

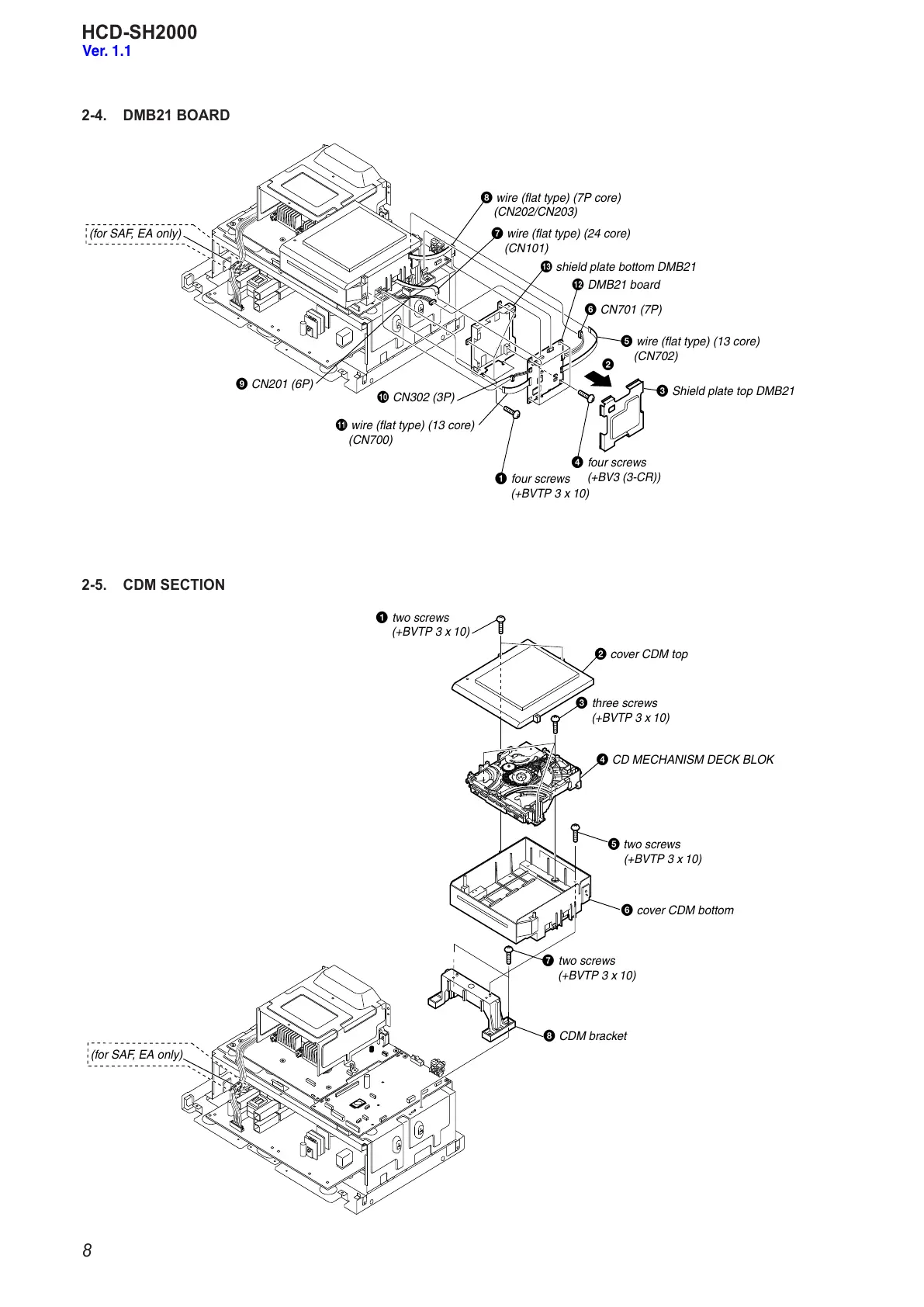

2-4. DMB21 BOARD
2-5. CDM SECTION
(for SAF, EA only)
4 four screws
(+BV3 (3-CR))
9 CN201 (6P)
q; CN302 (3P)
6 CN701 (7P)
1 four screws
(+BVTP 3 x 10)
qs DMB21 board
qd shield plate bottom DMB21
5 wire (flat type) (13 core)
(CN702)
3 Shield plate top DMB21
qa wire (flat type) (13 core)
(CN700)
8 wire (flat type) (7P core)
(CN202/CN203)
7 wire (flat type) (24 core)
(CN101)
2
8 CDM bracket
6 cover CDM bottom
4 CD MECHANISM DECK BLOK
2 cover CDM top
7 two screws
(+BVTP 3
x 10)
3 three screws
(+BVTP 3 x 10)
1 two screws
(+BVTP 3 x 10)
5 two screws
(+BVTP 3
x 10)
(for SAF, EA only)
Ver. 1.1
