HCD-SH2000
7

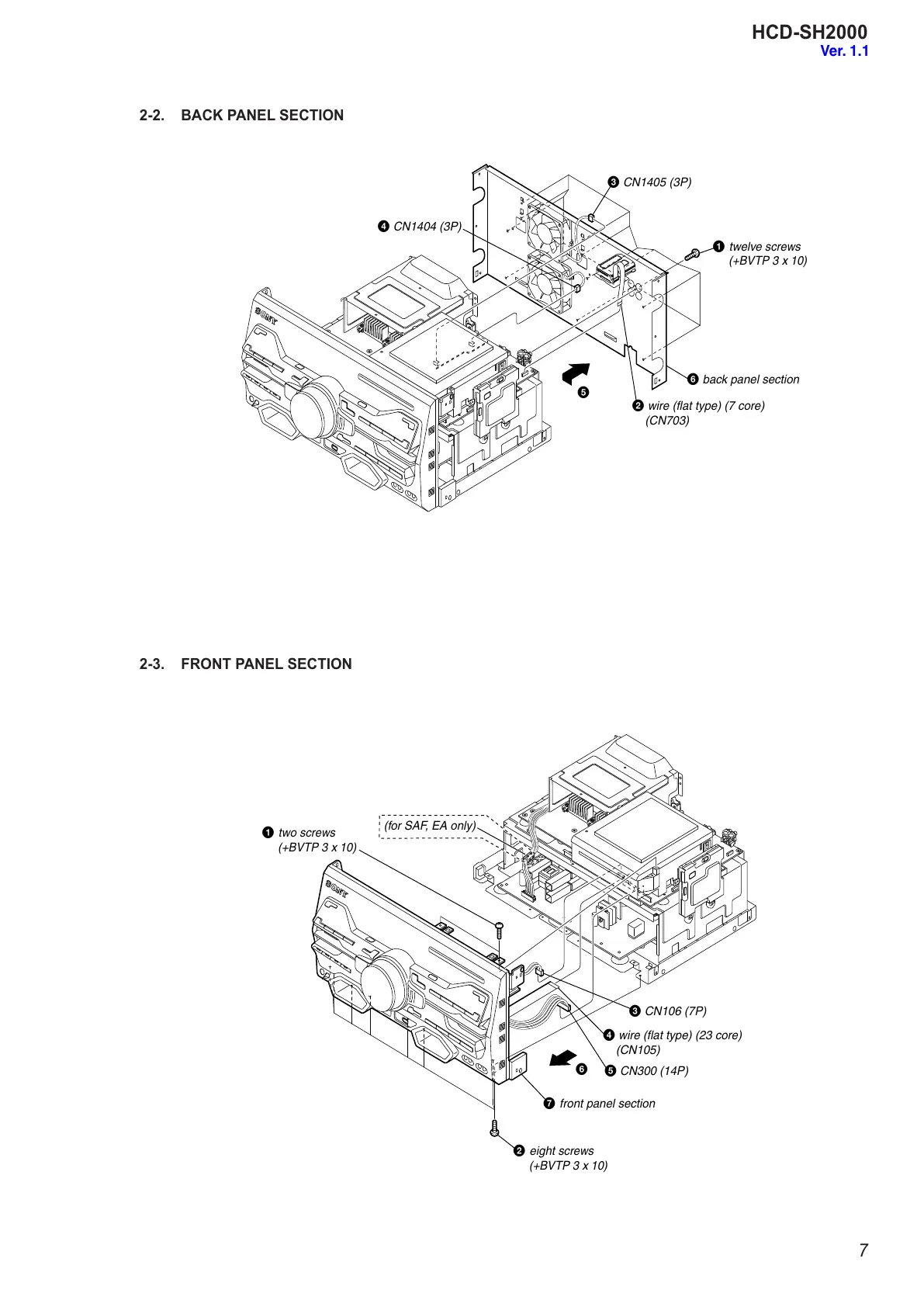

2-2. BACK PANEL SECTION
2-3. FRONT PANEL SECTION
1 twelve screws
(+BVTP 3 x 10)
6 back panel section
5
3 CN1405 (3P)
2 wire (flat type) (7 core)
(CN703)
4 CN1404 (3P)
2 eight screws
(+BVTP 3
x 10)
7 front panel section
(for SAF, EA only)
6
5 CN300 (14P)
4 wire (flat type) (23 core)
(CN105)
1 two screws
(+BVTP 3 x 10)
3 CN106 (7P)
