Sony MX - CD Mechanism Deck Block

HCD-SH2000
9

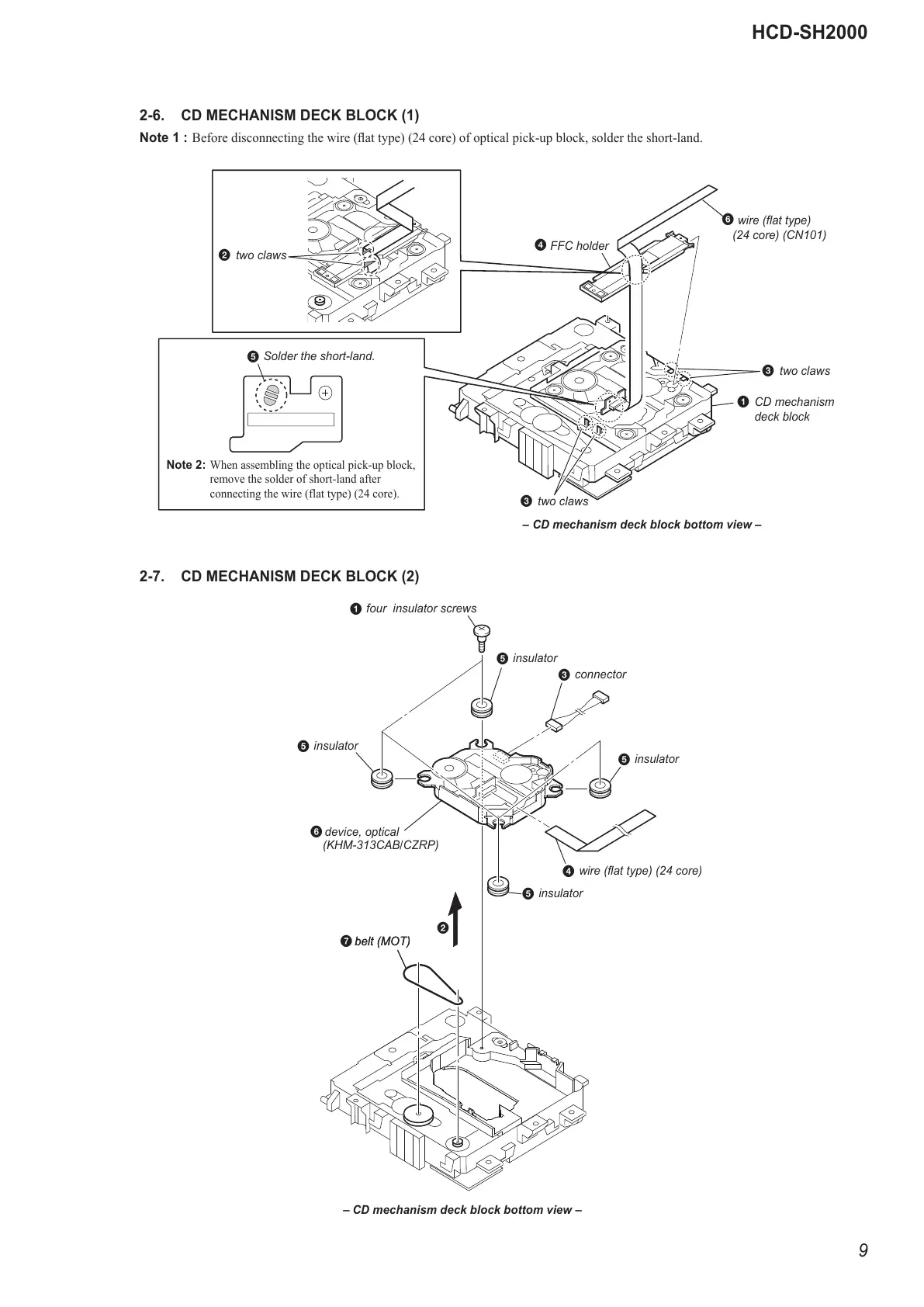

2-6. CD MECHANISM DECK BLOCK (1)
Note 1 : Before disconnecting the wire (fl at type) (24 core) of optical pick-up block, solder the short-land.
5
Solder the short-land.
Note 2: When assembling the optical pick-up block,
remove the solder of short-land after
connecting the wire (flat type) (24 core).
FFC holder
3 two claws
3 two claws
1 CD mechanism
deck block
– CD mechanism deck block bottom view –
2
4
wire (flat type)
(24 core) (CN101)
6
two claws
2-7. CD MECHANISM DECK BLOCK (2)
belt (MOT)
– CD mechanism deck block bottom view –
1
four insulator screws
2
5
insulator
3
connector
4
wire (flat type) (24 core)
6
device, optical
(KHM-313CAB/CZRP)
5
insulator
5
insulator
5
insulator
7
belt (MOT)
