69
HCD-SH2000

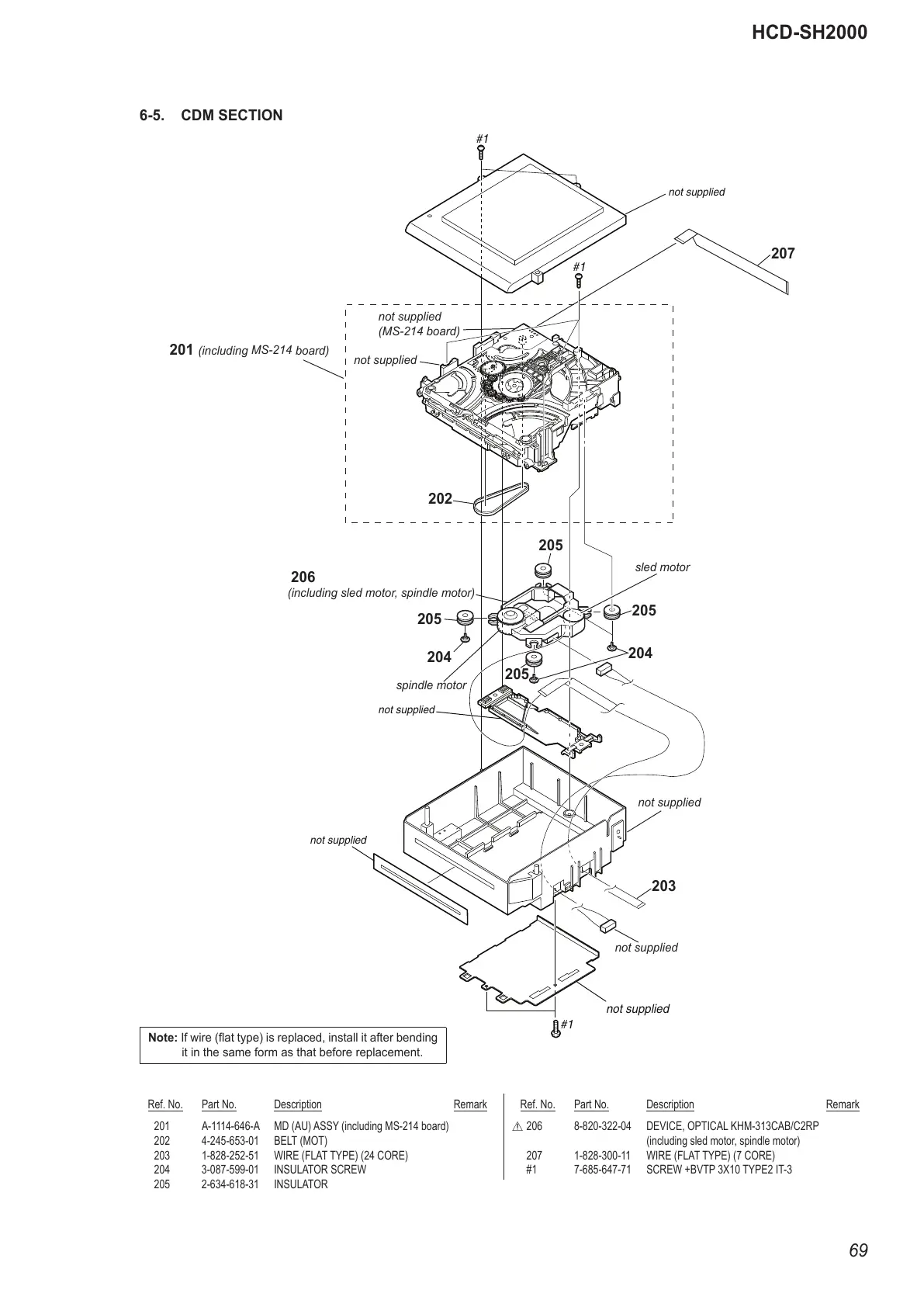

6-5. CDM SECTION
201 A-1114-646-A MD (AU) ASSY (including MS-214 board)
202 4-245-653-01 BELT (MOT)
203 1-828-252-51 WIRE (FLAT TYPE) (24 CORE)
204 3-087-599-01 INSULATOR SCREW
205 2-634-618-31 INSULATOR
0
206 8-820-322-04 DEVICE, OPTICAL KHM-313CAB/C2RP
(including sled motor, spindle motor)
207 1-828-300-11 WIRE (FLAT TYPE) (7 CORE)
#1 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
204
205
205
206
207
(including sled motor, spindle motor)
205
205
204
spindle motor
sled motor
201 (including
MS-214
board)
202
not supplied
not supplied
not supplied
not supplied
(MS-214 board)
203
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
