HCD-SH2000
5

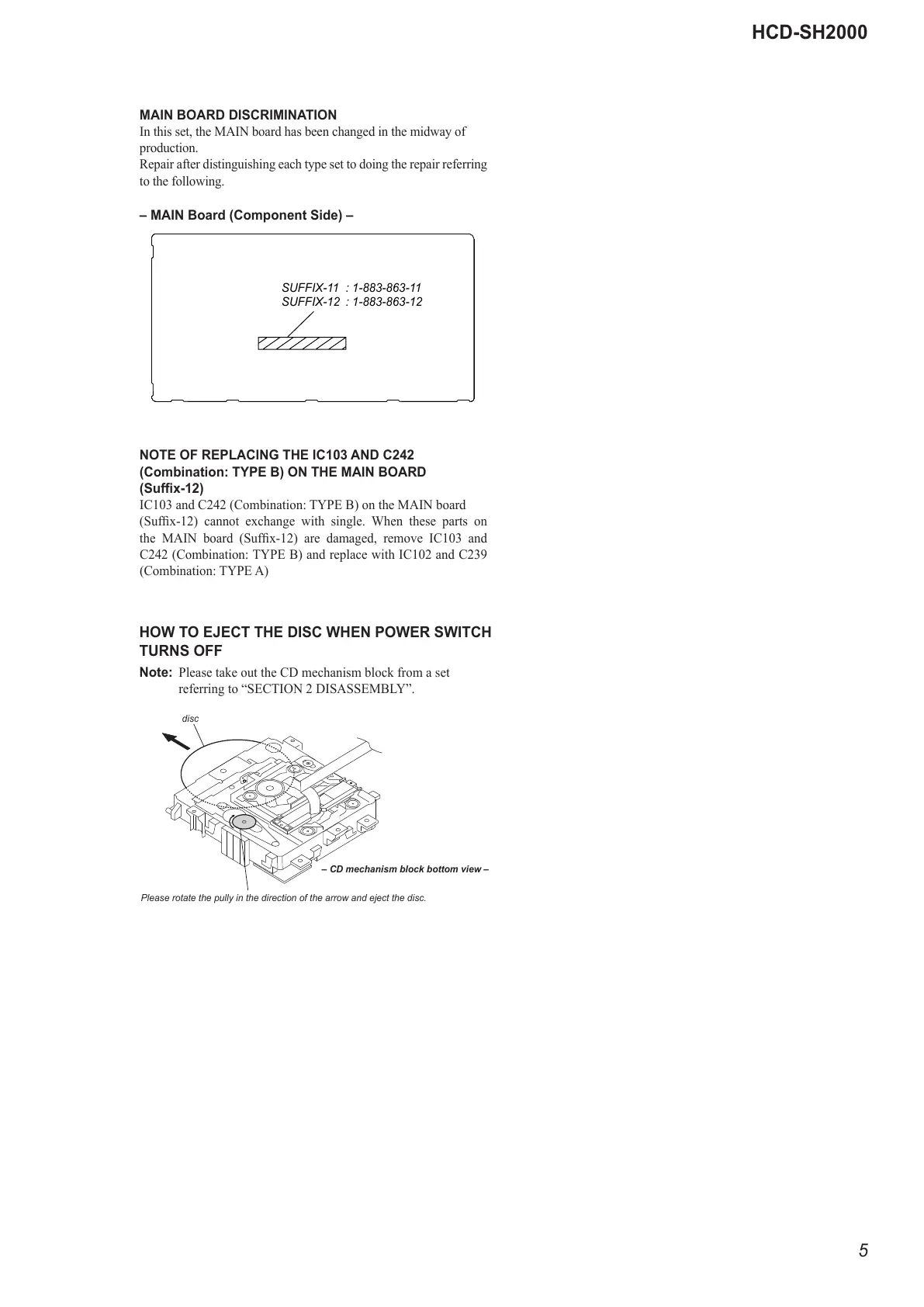

HOW TO EJECT THE DISC WHEN POWER SWITCH
TURNS OFF
Note: Please take out the CD mechanism block from a set
referring to “SECTION 2 DISASSEMBLY”.
Please rotate the pully in the direction of the arrow and eject the disc.
disc
– CD mechanism block bottom view –
MAIN BOARD DISCRIMINATION
In this set, the MAIN board has been changed in the midway of
production.
Repair after distinguishing each type set to doing the repair referring
to the following.
– MAIN Board (Component Side) –
SUFFIX-11 : 1-883-863-11
SUFFIX-12 : 1-883-863-12
NOTE OF REPLACING THE IC103 AND C242
(Combination: TYPE B) ON THE MAIN BOARD
(Suffi x-12)
IC103 and C242 (Combination: TYPE B) on the MAIN board
(Suffi x-12) cannot exchange with single. When these parts on
the MAIN board (Suffi x-12) are damaged, remove IC103 and
C242 (Combination: TYPE B) and replace with IC102 and C239
(Combination: TYPE A)
To Next Page
