Sony MX - Page 53

HCD-SH2000
53

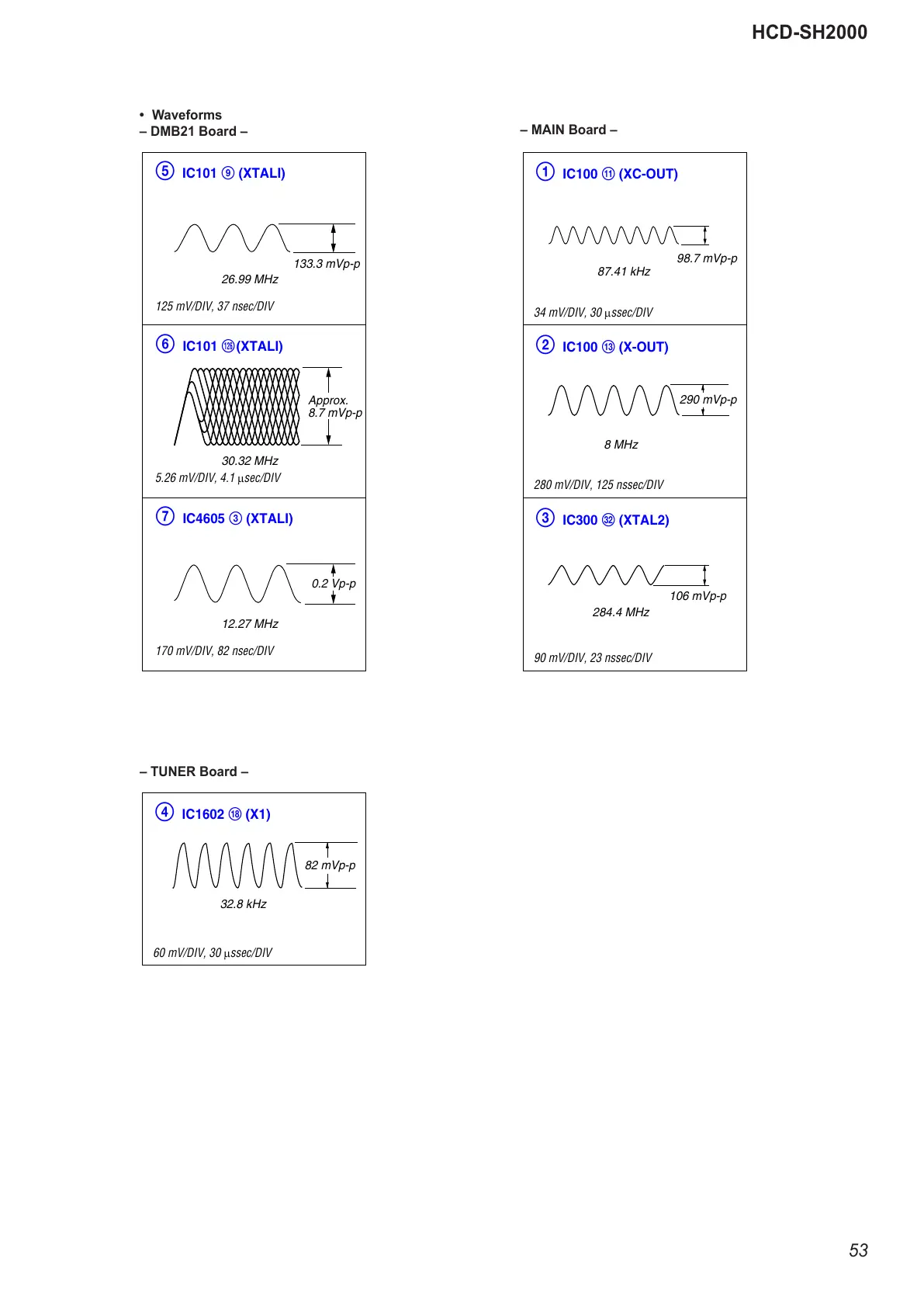

• Waveforms
– DMB21 Board –
34 mV/DIV, 30 Pssec/DIV
1 IC100 qa (XC-OUT)
280 mV/DIV, 125 nssec/DIV
2 IC100 qd (X-OUT)
8 MHz
284.4 MHz
290 mVp-p
90 mV/DIV, 23 nssec/DIV
3 IC300 es (XTAL2)
87.41 kHz
106 mVp-p
98.7 mVp-p
125 mV/DIV, 37 nsec/DIV
5.26 mV/DIV, 4.1 Psec/DIV
170 mV/DIV, 82 nsec/DIV
133.3 mVp-p
26.99 MHz
5 IC101 9 (XTALI)
6 IC101 <zxn (XTALI)
30.32 MHz
7 IC4605 3 (XTALI)
0.2 Vp-p
12.27 MHz
Approx.
8.7 mVp-p
– MAIN Board –
– TUNER Board –
60 mV/DIV, 30 Pssec/DIV
4 IC1602 qk (X1)
32.8 kHz
82 mVp-p
