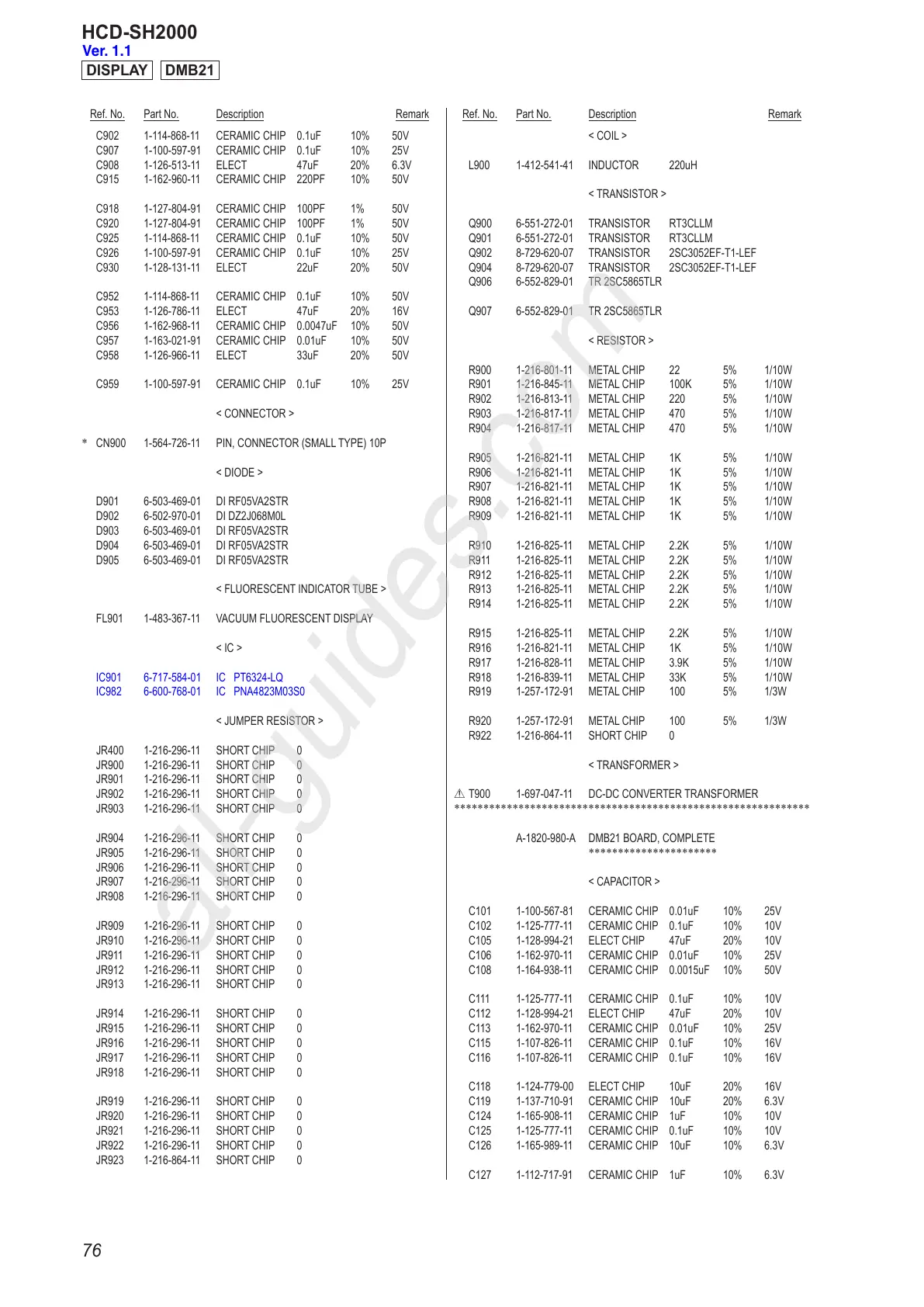

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HCD-SH2000
76
C902 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C907 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C908 1-126-513-11 ELECT 47uF 20% 6.3V
C915 1-162-960-11 CERAMIC CHIP 220PF 10% 50V
C918 1-127-804-91 CERAMIC CHIP 100PF 1% 50V
C920 1-127-804-91 CERAMIC CHIP 100PF 1% 50V
C925 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C926 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
C930 1-128-131-11 ELECT 22uF 20% 50V
C952 1-114-868-11 CERAMIC CHIP 0.1uF 10% 50V
C953 1-126-786-11 ELECT 47uF 20% 16V
C956 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C957 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V
C958 1-126-966-11 ELECT 33uF 20% 50V
C959 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V
< CONNECTOR >
* CN900 1-564-726-11 PIN, CONNECTOR (SMALL TYPE) 10P
< DIODE >
D901 6-503-469-01 DI RF05VA2STR
D902 6-502-970-01 DI DZ2J068M0L
D903 6-503-469-01 DI RF05VA2STR
D904 6-503-469-01 DI RF05VA2STR
D905 6-503-469-01 DI RF05VA2STR
< FLUORESCENT INDICATOR TUBE >
FL901 1-483-367-11 VACUUM FLUORESCENT DISPLAY
< IC >
IC901 6-717-584-01 IC PT6324-LQ
IC982 6-600-768-01 IC PNA4823M03S0
< JUMPER RESISTOR >
JR400 1-216-296-11 SHORT CHIP 0
JR900 1-216-296-11 SHORT CHIP 0
JR901 1-216-296-11 SHORT CHIP 0
JR902 1-216-296-11 SHORT CHIP 0
JR903 1-216-296-11 SHORT CHIP 0
JR904 1-216-296-11 SHORT CHIP 0
JR905 1-216-296-11 SHORT CHIP 0
JR906 1-216-296-11 SHORT CHIP 0
JR907 1-216-296-11 SHORT CHIP 0
JR908 1-216-296-11 SHORT CHIP 0
JR909 1-216-296-11 SHORT CHIP 0
JR910 1-216-296-11 SHORT CHIP 0
JR911 1-216-296-11 SHORT CHIP 0
JR912 1-216-296-11 SHORT CHIP 0
JR913 1-216-296-11 SHORT CHIP 0
JR914 1-216-296-11 SHORT CHIP 0
JR915 1-216-296-11 SHORT CHIP 0
JR916 1-216-296-11 SHORT CHIP 0
JR917 1-216-296-11 SHORT CHIP 0
JR918 1-216-296-11 SHORT CHIP 0
JR919 1-216-296-11 SHORT CHIP 0
JR920 1-216-296-11 SHORT CHIP 0
JR921 1-216-296-11 SHORT CHIP 0
JR922 1-216-296-11 SHORT CHIP 0
JR923 1-216-864-11 SHORT CHIP 0
< COIL >
L900 1-412-541-41 INDUCTOR 220uH
< TRANSISTOR >
Q900 6-551-272-01 TRANSISTOR RT3CLLM
Q901 6-551-272-01 TRANSISTOR RT3CLLM
Q902 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q904 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q906 6-552-829-01 TR 2SC5865TLR
Q907 6-552-829-01 TR 2SC5865TLR
< RESISTOR >
R900 1-216-801-11 METAL CHIP 22 5% 1/10W
R901 1-216-845-11 METAL CHIP 100K 5% 1/10W
R902 1-216-813-11 METAL CHIP 220 5% 1/10W
R903 1-216-817-11 METAL CHIP 470 5% 1/10W
R904 1-216-817-11 METAL CHIP 470 5% 1/10W
R905 1-216-821-11 METAL CHIP 1K 5% 1/10W
R906 1-216-821-11 METAL CHIP 1K 5% 1/10W
R907 1-216-821-11 METAL CHIP 1K 5% 1/10W
R908 1-216-821-11 METAL CHIP 1K 5% 1/10W
R909 1-216-821-11 METAL CHIP 1K 5% 1/10W
R910 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R911 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R912 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R913 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R914 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R915 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R916 1-216-821-11 METAL CHIP 1K 5% 1/10W
R917 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R918 1-216-839-11 METAL CHIP 33K 5% 1/10W
R919 1-257-172-91 METAL CHIP 100 5% 1/3W
R920 1-257-172-91 METAL CHIP 100 5% 1/3W
R922 1-216-864-11 SHORT CHIP 0
< TRANSFORMER >
0 T900 1-697-047-11 DC-DC CONVERTER TRANSFORMER
*************************************************************
A-1820-980-A DMB21 BOARD, COMPLETE
**********************
< CAPACITOR >
C101 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C102 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C105 1-128-994-21 ELECT CHIP 47uF 20% 10V
C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C108 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 50V
C111 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C112 1-128-994-21 ELECT CHIP 47uF 20% 10V
C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C118 1-124-779-00 ELECT CHIP 10uF 20% 16V
C119 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C125 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C126 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C127 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
DISPLAY DMB21
Ver. 1.1
