5-3
PVM-9L1

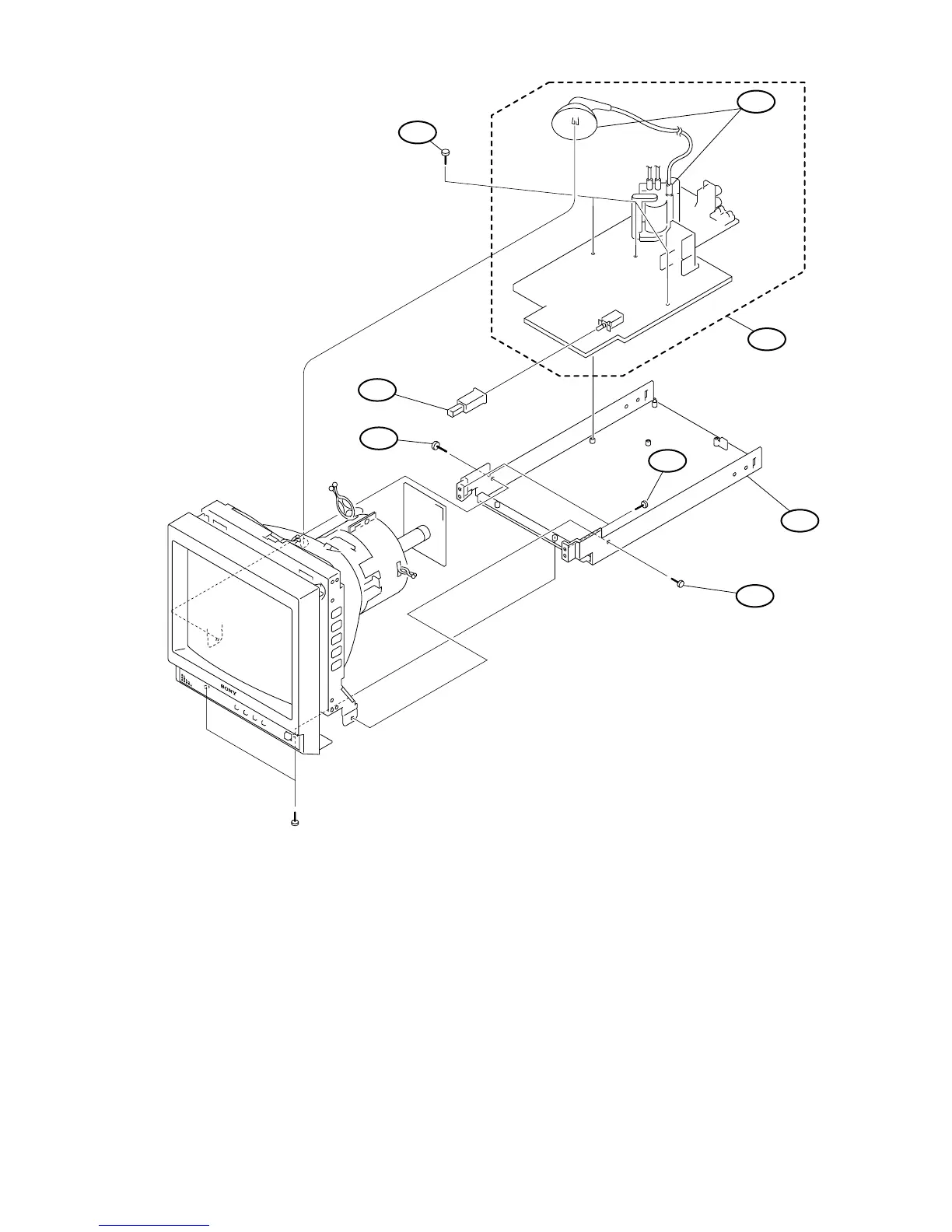

A Board and Bottom
102
104
105
105
103
107
106
101
+KTP 3x8
No. Part No. SP Description
101 4-096-806-01 s SWITCH, POWER
102 ! 4-096-812-01 s BOTTOM
103 A-1302-231-A s MOUNTED CIRCUIT BOARD, A
104 4-039-356-21 s SCREW, (+) BVTP 3X12
105 4-097-991-01 s SCREW +K M 3X6 EG
106 ! 1-439-526-31 s TRANSFORMER ASSY, FLYBACK
107 3-703-137-11 s SCREW +PWHTP 3X10
Screws/Washers
7-685-246-19 s SCREW +KTP 3X8 (EP-FE/ZNBK/CM2)
