Sony PVM-9L1 - Page 34

5-4
PVM-9L1

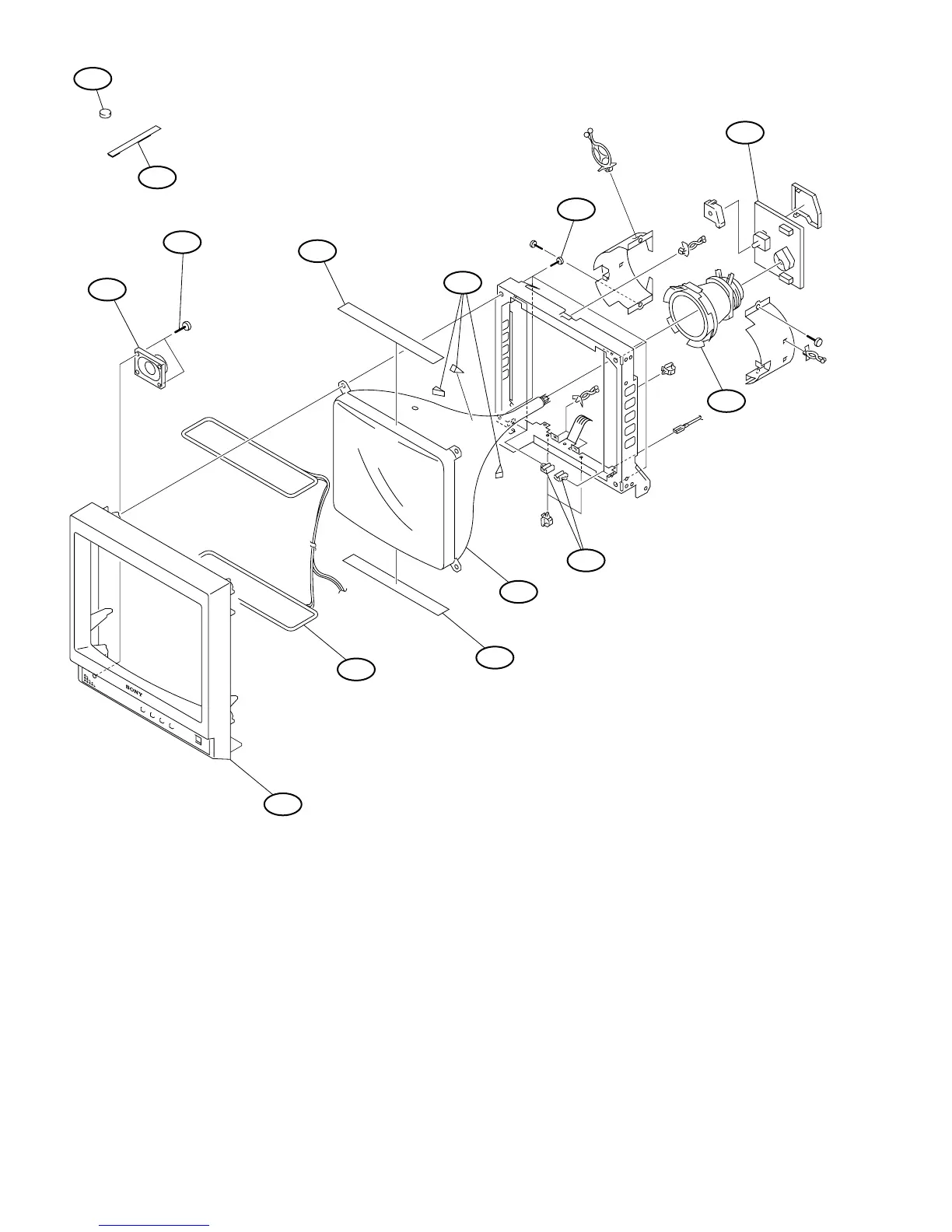

Bezel Complete Assembly
211
203
204
210
209
209
212
206
201
213
202
205
207
208
+BVTT 3x6
+BVTT 3x6
No. Part No. SP Description
201 ! 1-544-796-21 s SPEAKER (4X2.8CM)
202 A-1405-333-A s MOUNTED CIRCUIT BOARD, C
203 ! 1-419-306-11 s COIL, DEGAUSS
204 ! 8-737-154-00 s PICTURE TUBE
205 4-309-369-00 s SPACER, DEFLECTION YOKE
206 ! 1-451-319-22 s DEFLECTION YOKE (Y9FXC)
207 1-452-884-12 o MAGNET
208 4-051-735-42 s PIECE A (75), CONV, CORRECT
209 4-035-332-01 s CLOTH, PROTECTION
210 4-072-725-01 o HOLDER, DEGAUS COIL
211 ! X-4041-936-1 s BEZEL ASSY
212 4-203-648-11 s SELFTAPPING SCREW 5
213 4-039-356-21 s SCREW, (+) BVTP 3X12
Screws/Washers
7-685-871-09 s SCREW +BVTT 3X6
