13
Hookups and Settings

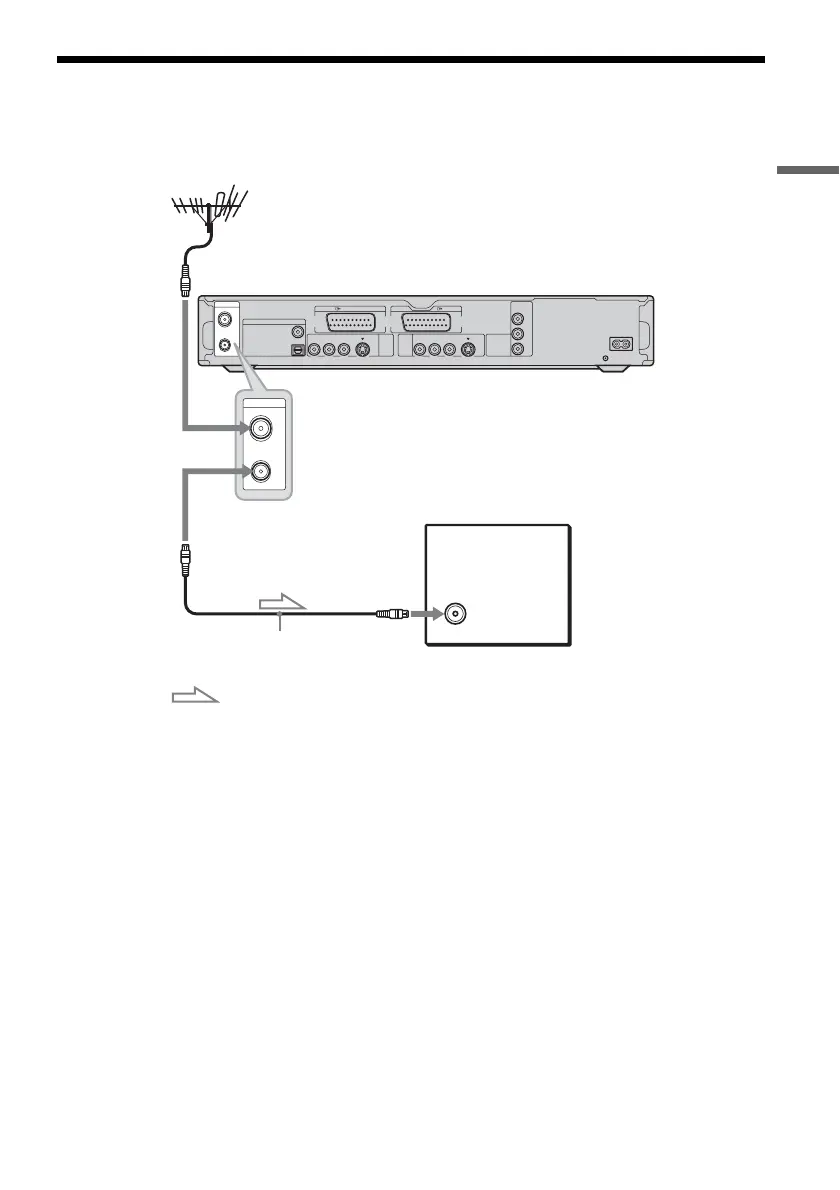

Step 2: Connecting the Aerial Cable
Connect the aerial cable by following the steps below. Do not connect the mains lead until you reach
“Step 5: Connecting the Mains Lead” on page 18.
1 Disconnect the aerial cable from your TV and connect it to AERIAL IN on the rear panel of the
recorder.
2 Connect AERIAL OUT of the recorder to the aerial input of your TV, using the supplied aerial
cable.
AERIAL
~ AC IN
IN
OUT
COMPONENT
VIDEO OUT
PB/
C
B
Y
P
R/
C
R
LINE
2
OUT
LINE
4
IN
LINE 1
-
TV
VIDEO
-
AUDIO
S VIDEO
RL
VIDEO
-
AUDIO
S VIDEO
RL
DIGITAL OUT
COAXIAL
OPTICAL
PCM/DTS/MPEG/DOLBY DIGITAL
LINE 3
AERIAL
IN
OUT
DVD recorder
TV
to AERIAL OUT
to AERIAL IN
Aerial cable (supplied)
: Signal flow
