Sony RDR-GXD310 - Front Panel

97
Additional Information
Y H (play) button (56)
X (pause) button (58)
x (stop) button (56)
The H button has a tactile dot*.
Z z REC button (28)
X REC PAUSE button (28)
x REC STOP button (28)
wj CHAPTER MARK/CHAPTER MARK
ERASE buttons (71)
wk REC MODE button (28)
wl SYNCHRO REC button (54)
e; (subtitle) button (58)
ea DISPLAY button
(31)
TIME/TEXT button (31)
es (angle) button (58)
ed INPUT SELECT button (55)
ef COMMAND MODE switch (DVD 1,2,3)
(21)
eg PROGRESSIVE button (16)
* Use the tactile dot as a reference when operating the
recorder.
A [/1 (on/standby) button (22)
B Front panel display (32, 98)
C Disc tray (26)
D A (open/close) button (26)
E TIMER REC indicator (46)
SYNCHRO REC indicator (54)
F (remote sensor) (19)
G H (play) button (56)
X (pause) button (58)
x (stop) button (56)
H z REC button (28)
X REC PAUSE button (28)
x REC STOP button (28)
I SYSTEM MENU button (21)
TOOLS button (26)
J </M/m/,/ENTER button (22)
K O RETURN button (22)
L GUIDE (Electronic Programme Guide)
button (38)
M ./> (previous/next) buttons (58)
N PROGRAM +/– buttons (28)
The + button has a tactile dot*.
O REC MODE button (45)
INPUT SELECT button (55)
P LINE 2 IN (S VIDEO/VIDEO/L(MONO)
AUDIO R) jacks (24)
* Use the tactile dot as a reference when operating the
recorder.

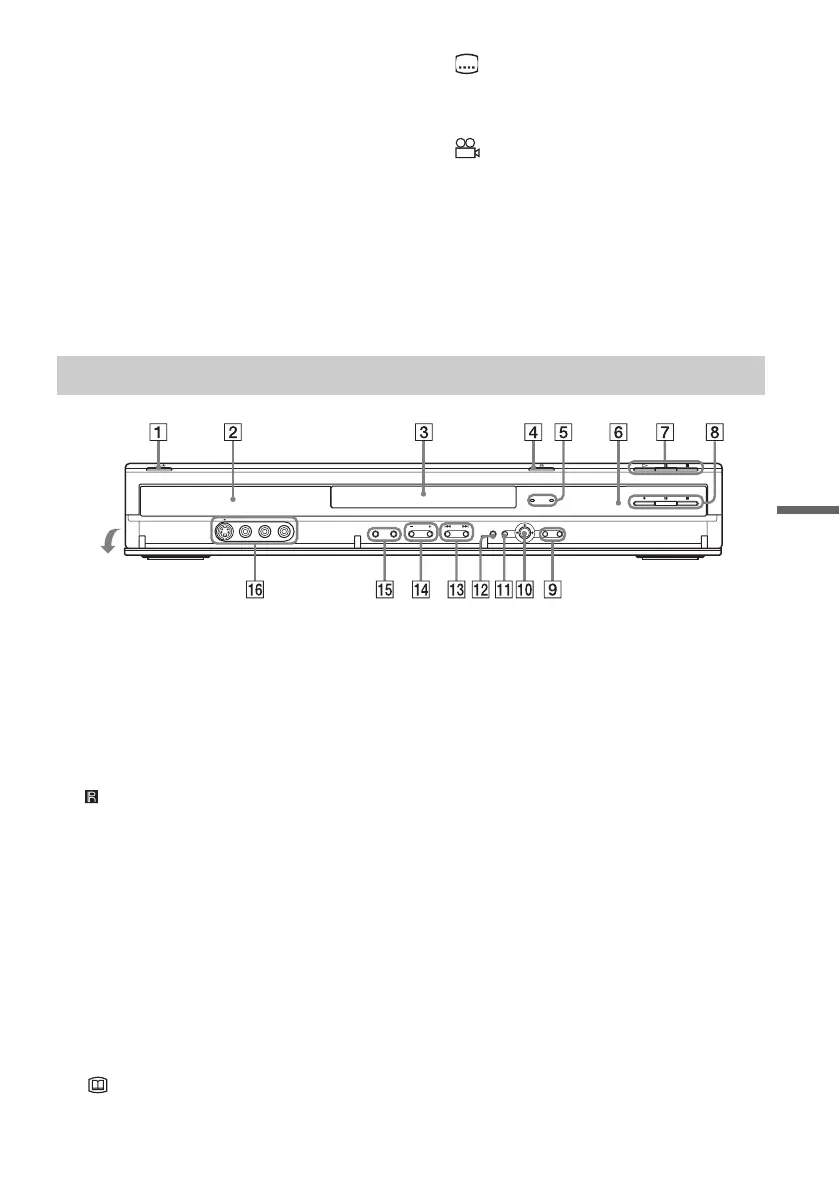

Front panel
,continued
