Appendix
Specifications
GB
16
Specifications
Input/output connectors
Control input/output
VISCA RS-232C OUT: Mini DIN 8-
pin type
VISCA RS-422: 9-pin type
TALLY IN/CONTACT OUT: 9-pin
type
Control signal format
9600 bps/38400 bps
Data: 8 bit
Stop bit: 1
Power connector
JEITA type4 (DC IN 12V)
General
Input voltage 12 V DC (10.8 to 13.2 V DC)
Current consumption
0.2 A max. (at 12 V DC), 2.4W
Operating temperature
0ºC to +40ºC (32ºF to 104ºF)
Storage temperature
-20ºC to +60ºC (-4ºF to 140ºF)
Dimensions 391.3 × 185 × 145.9 mm (w/h/d)
(15
1
/
2
× 7
3
/
8
× 5
3
/
4
inches)
(excluding protruding parts)
Mass Approx. 950 g (2 lb 15 oz)
Supplied accessories
AC power adaptor (1)
AC power cord (1)
RS-232C connecting cable (1)
RS-422 connector plug (2)
Operating Instructions (1)
Design and specifications are subject to change without
notice.

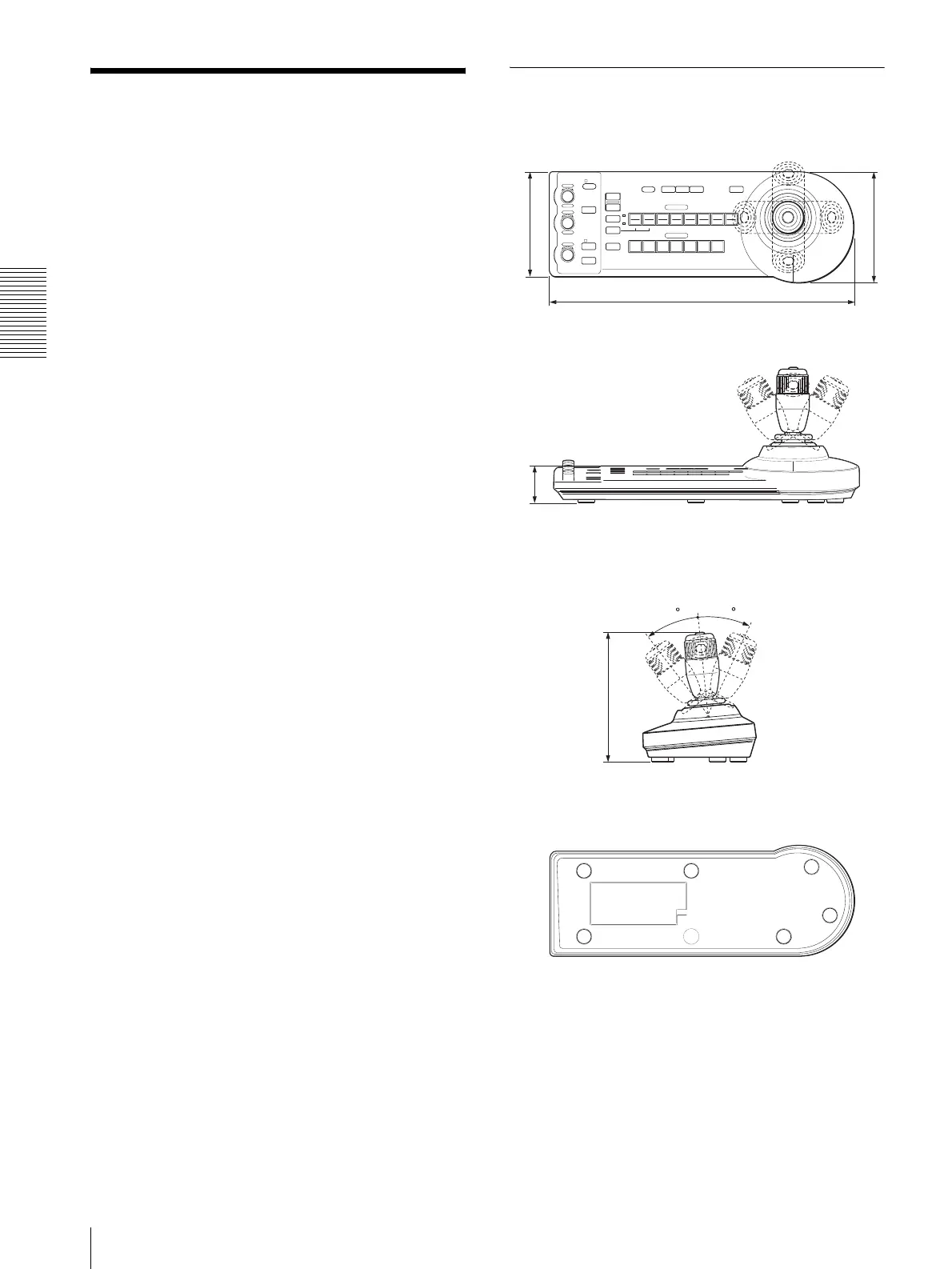

Dimensions
1
1
9
LOCK
MODE
VALUE
RESET
MENU
PRESET
SHIFT
L/R
DIRECTION
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
POWER
AUTO
MANUAL
AUTO
ONE PUSH
AF
234567
2
10
STD REV
3
11
4
POSITION
CAMERA
12
5
13
6
14
7
15
8
16
R
– +
BRIGHT
B
– +
FOCUS
NEAR FAR
145.9
(5
3
/
4
)
137.2
(5
1
/
2
)
391.3
(15
1
/2)
45.9
(1
13
/
16
)
185
(7
3
/
8
)
30
30
Unit: mm (inches)
Front
Bottom
Side
Top
