35
KDL-40W4100/46W4100/46W4150
KDL-40W4100/46W4100/46W4150
KDL-40W4100 ONLY
N
EW WIRE
U
TING/DRESS
DETAILS

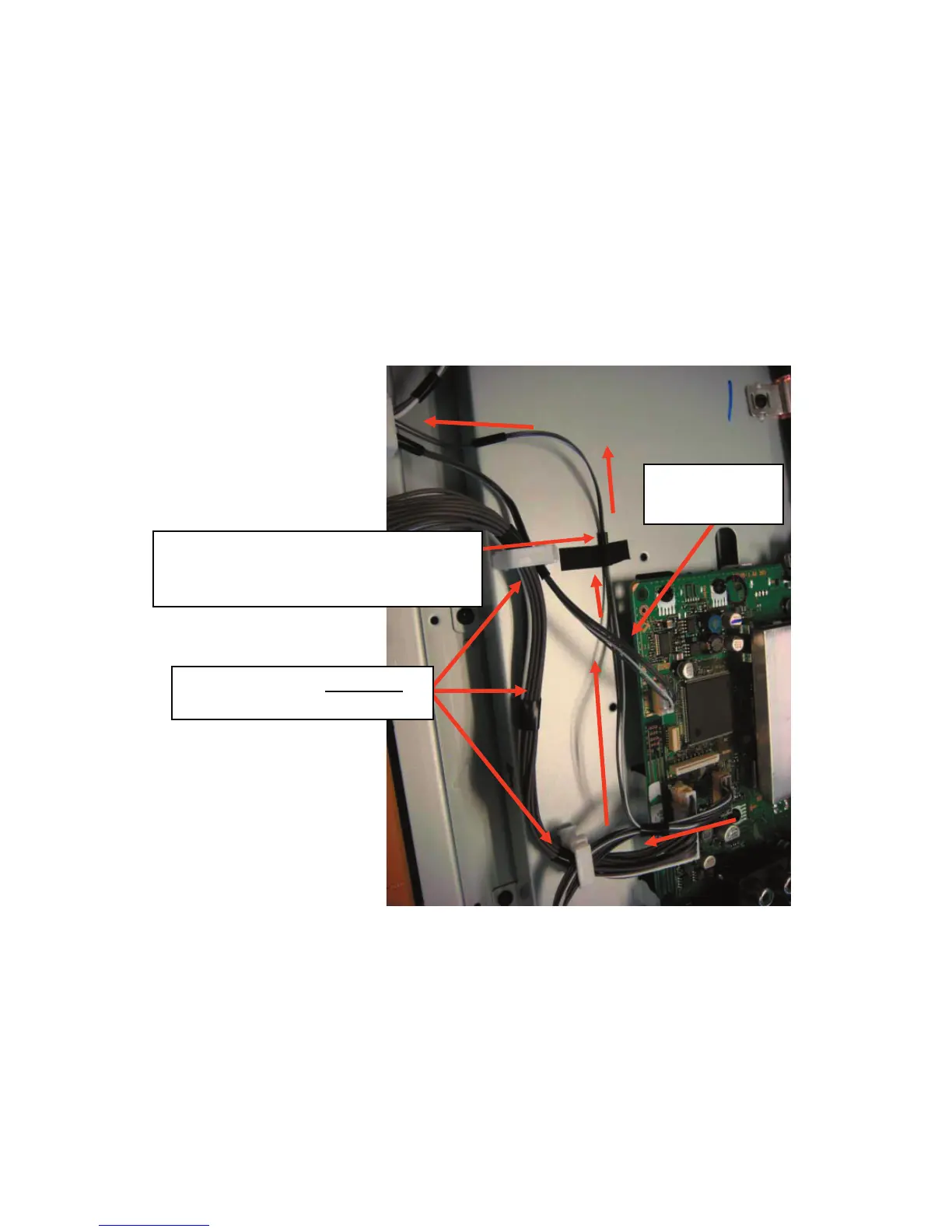

Use BLK UL Tape on harness as
Reference to apply Tape(LCD).
Total Tape(LCD) qty. change 9Æ10
Switch Unit wires CANNOT
Touch 13P Power Conn Assy.
Route Switch Unit
Cables UNDER 5P
Conn. Assy.
SWITCH UNIT ROUTING/DRESSING (CONTINUED)
