Sony RM-YD024 - Woofer Box Removal; AU;D4;FBU;G6 Board Removal

14
KDL-40XBR7
KDL-40XBR7
1
Remove 4 screws from both Woofer Boxes
2
Slide out Woofer Boxes from Cabinet
3
Remove 2 screws from AWF Brackets
1
Unhook Side Jack Bracket and slide out from AU Board
2
Disconnect 5 connectors and remove 9 screws from AU Board
3
Remove 3 screws from FB Shield
4
Remove 2 Hex screws from FB Shield
5
Remove 2 screws from FB Shield
6
Remove 1 screw from FB Shield and release wire terminal
7
Disconnect 4 connectors and remove 10 screws from FBU Board
8
Remove 1 screw from Main Bracket and Cabinet
9
Remove 4 screws from Main Bracket

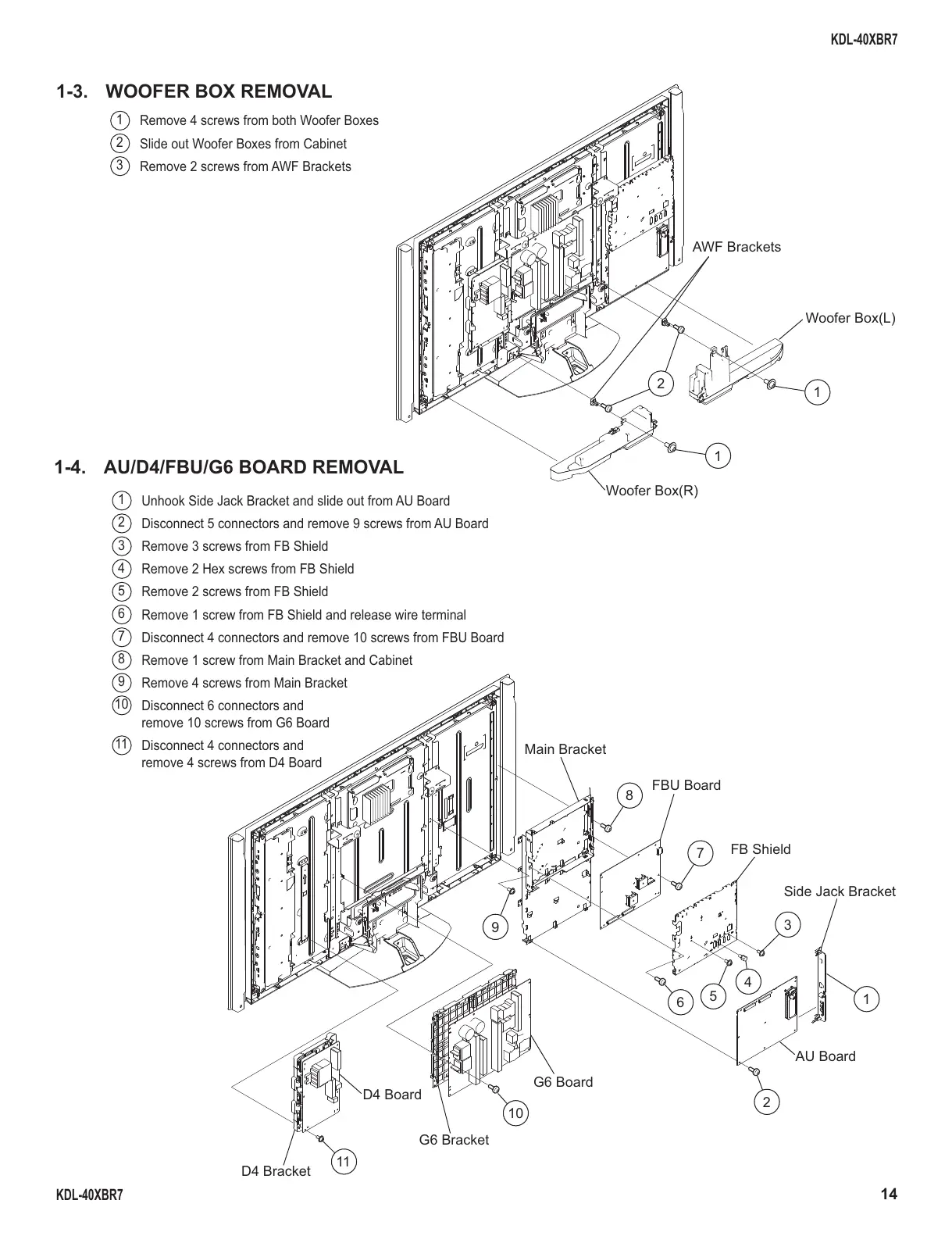

1-4. AU/D4/FBU/G6 BOARD REMOVAL
1-3. WOOFER BOX REMOVAL
Woofer Box(L)
Woofer Box(R)
AWF Brackets
1
2
1
9
FB Shield
Main Bracket
FBU Board
Side Jack Bracket
AU Board
G6 Board
D4 Board
D4 Bracket
G6 Bracket
8
7
5
6
10
2
1
11
4
3
10
Disconnect 6 connectors and
remove 10 screws from G6 Board
11
Disconnect 4 connectors and
remove 4 screws from D4 Board
