Sony RM-YD024 - Bezel Assembly and LCD Panel

KDL-40XBR7
KDL-40XBR7
71
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

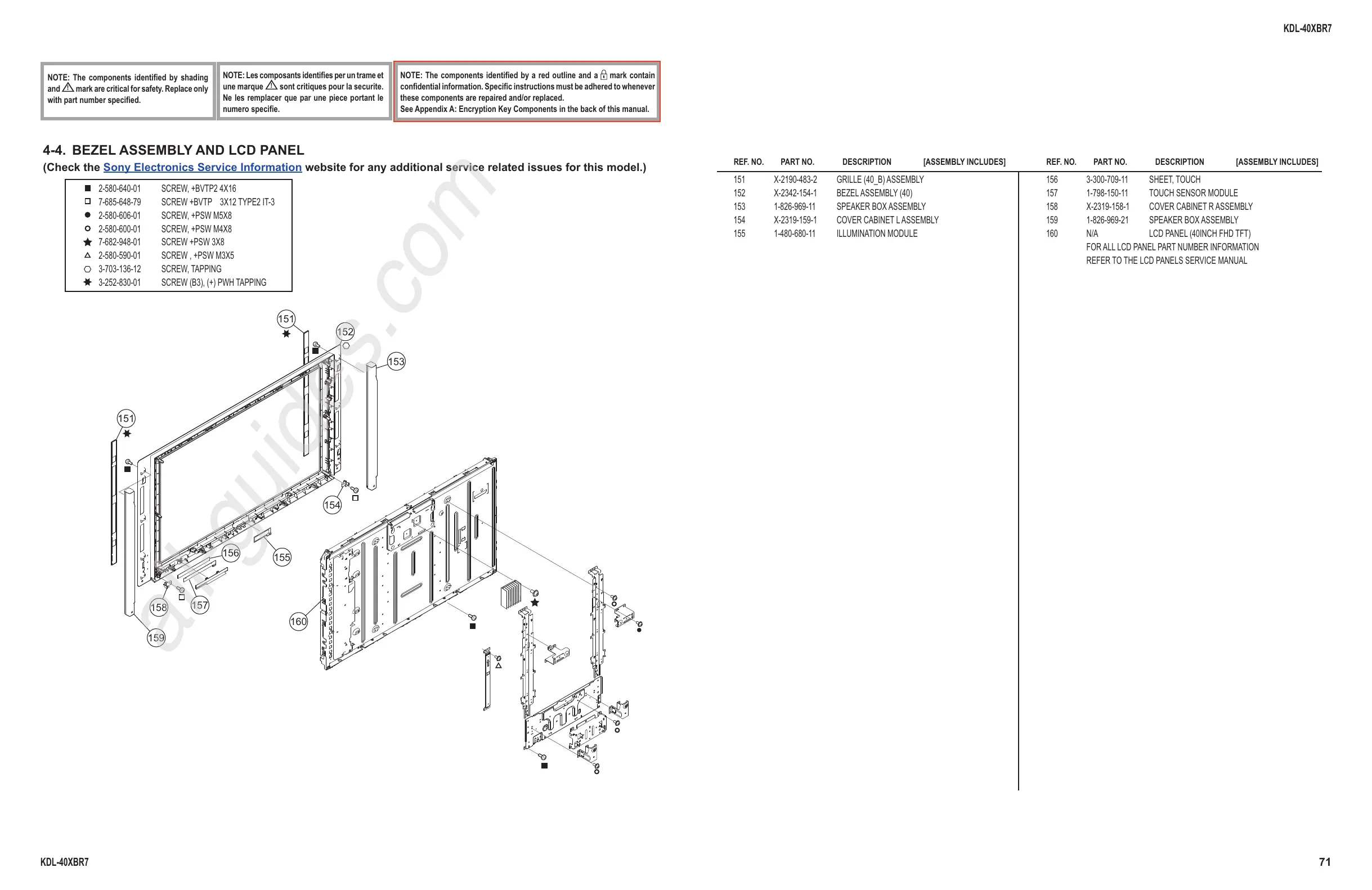

4-4. BEZEL ASSEMBLY AND LCD PANEL
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
151 X-2190-483-2 GRILLE (40_B) ASSEMBLY
152 X-2342-154-1 BEZEL ASSEMBLY (40)
153 1-826-969-11 SPEAKER BOX ASSEMBLY
154 X-2319-159-1 COVER CABINET L ASSEMBLY
155 1-480-680-11 ILLUMINATION MODULE
156 3-300-709-11 SHEET, TOUCH
157 1-798-150-11 TOUCH SENSOR MODULE
158 X-2319-158-1 COVER CABINET R ASSEMBLY
159 1-826-969-21 SPEAKER BOX ASSEMBLY
160 N/A LCD PANEL (40INCH FHD TFT)
FOR ALL LCD PANEL PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
2-580-606-01 SCREW, +PSW M5X8
2-580-600-01 SCREW, +PSW M4X8
7-682-948-01 SCREW +PSW 3X8
2-580-590-01 SCREW , +PSW M3X5
3-703-136-12 SCREW, TAPPING
3-252-830-01 SCREW (B3), (+) PWH TAPPING
151
151
152
153
154
156
155
158
159
157
160
