Sony RM-YD024 - Structural Frames, Brackets and AC Inlet Removal; Table-Top Stand and under Cover Removal

16
KDL-40XBR7
KDL-40XBR7
1
Remove 4 screws
2
Remove 1 screw

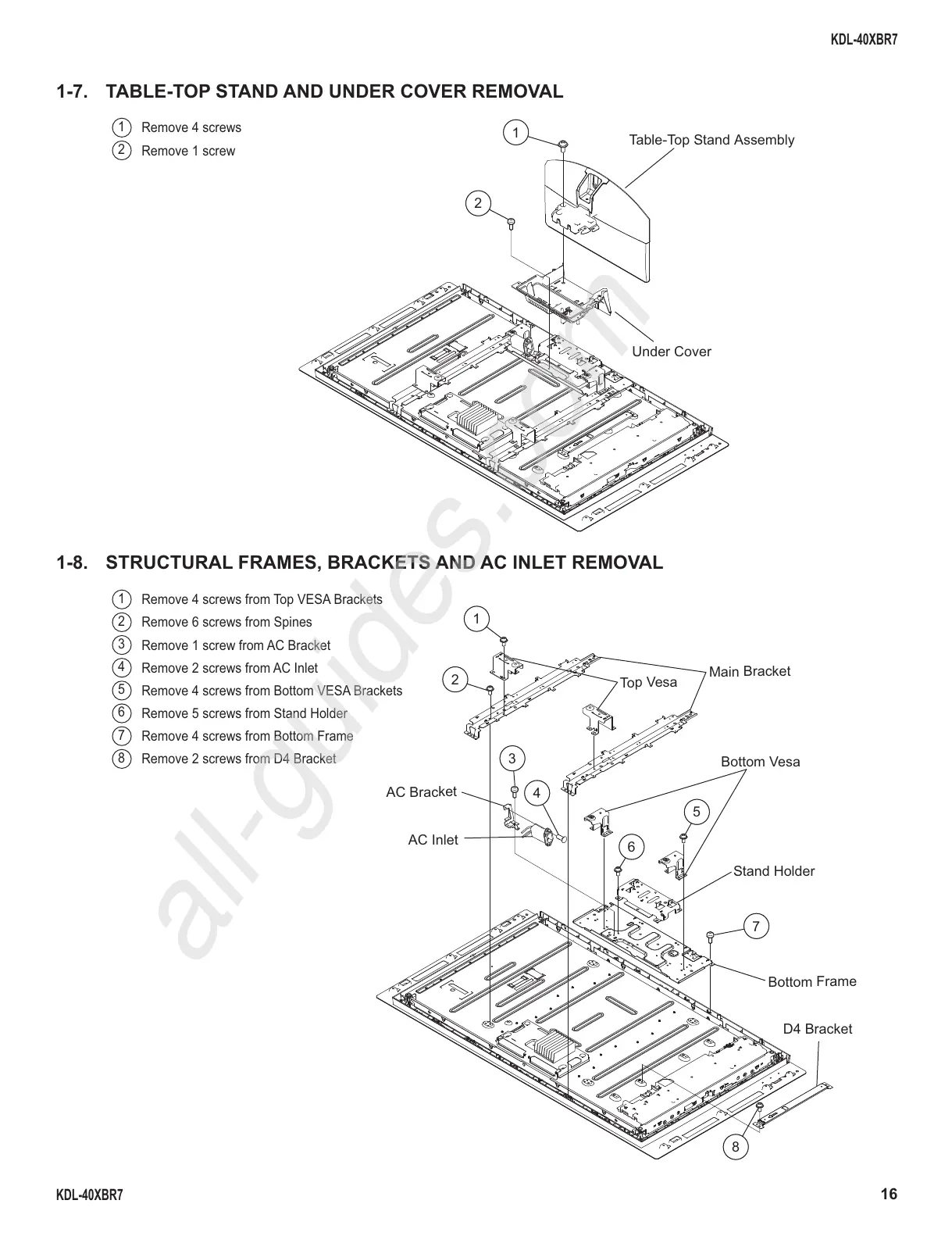

1-7. TABLE-TOP STAND AND UNDER COVER REMOVAL
1
2
Under Cover
Table-Top Stand Assembly
1-8. STRUCTURAL FRAMES, BRACKETS AND AC INLET REMOVAL
1
Remove 4 screws from Top VESA Brackets
2
Remove 6 screws from Spines
3
Remove 1 screw from AC Bracket
4
Remove 2 screws from AC Inlet
5
Remove 4 screws from Bottom VESA Brackets
6
Remove 5 screws from Stand Holder
7
Remove 4 screws from Bottom Frame
8
Remove 2 screws from D4 Bracket
3
2
4
1
5
6
7
8
Top Vesa
Bottom Vesa
Main Bracket
AC Bracket
AC Inlet
Stand Holder
Bottom Frame
D4 Bracket
