NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

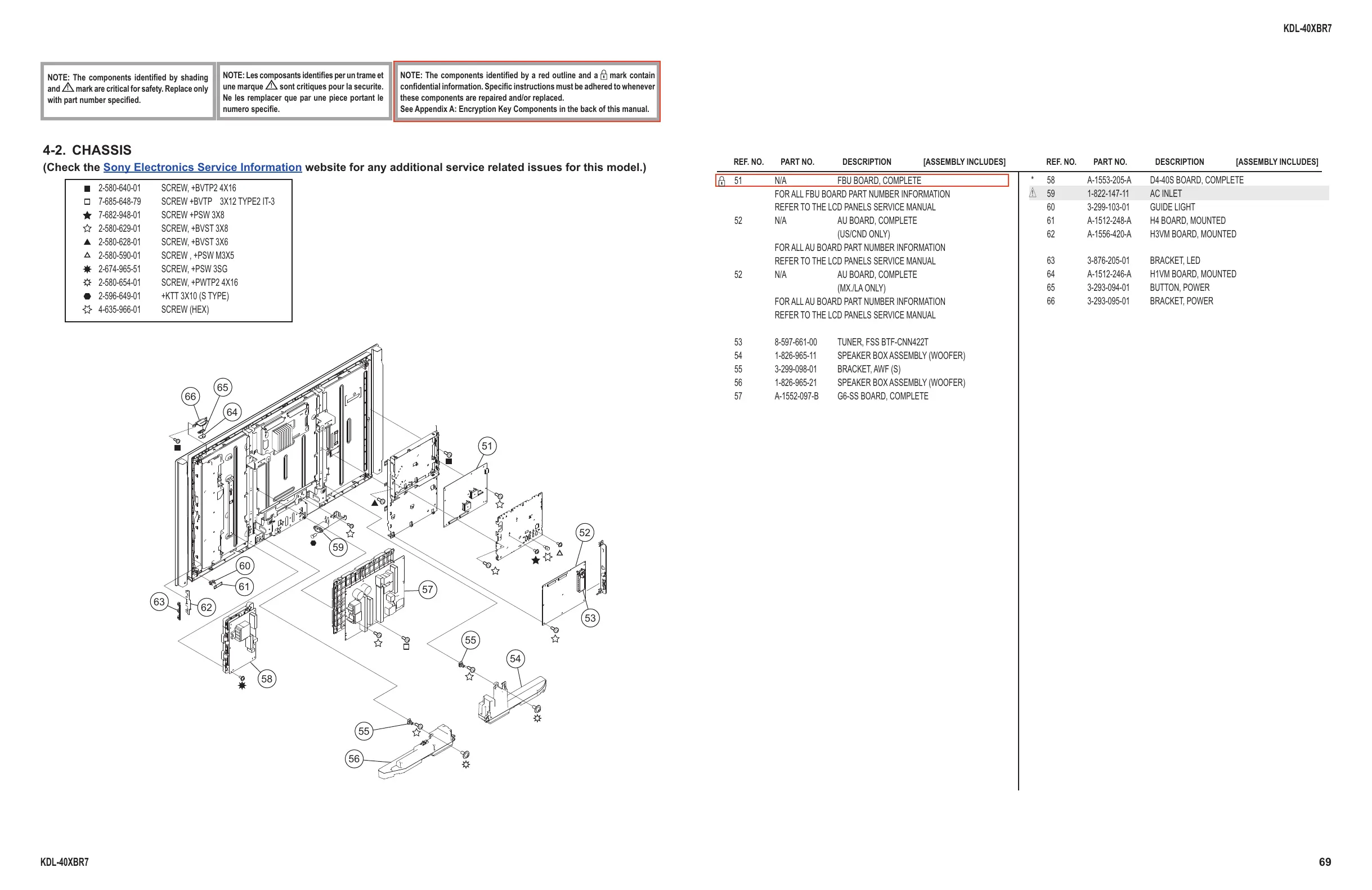

4-2. CHASSIS
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
51 N/A FBU BOARD, COMPLETE
FOR ALL FBU BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
52 N/A AU BOARD, COMPLETE
(US/CND ONLY)
FOR ALL AU BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
52 N/A AU BOARD, COMPLETE
(MX./LA ONLY)
FOR ALL AU BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
53 8-597-661-00 TUNER, FSS BTF-CNN422T
54 1-826-965-11 SPEAKER BOX ASSEMBLY (WOOFER)
55 3-299-098-01 BRACKET, AWF (S)
56 1-826-965-21 SPEAKER BOX ASSEMBLY (WOOFER)
57 A-1552-097-B G6-SS BOARD, COMPLETE
* 58 A-1553-205-A D4-40S BOARD, COMPLETE
! 59 1-822-147-11 AC INLET
60 3-299-103-01 GUIDE LIGHT
61 A-1512-248-A H4 BOARD, MOUNTED
62 A-1556-420-A H3VM BOARD, MOUNTED
63 3-876-205-01 BRACKET, LED
64 A-1512-246-A H1VM BOARD, MOUNTED
65 3-293-094-01 BUTTON, POWER
66 3-293-095-01 BRACKET, POWER
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
7-682-948-01 SCREW +PSW 3X8
2-580-629-01 SCREW, +BVST 3X8
2-580-628-01 SCREW, +BVST 3X6
2-580-590-01 SCREW , +PSW M3X5
2-674-965-51 SCREW, +PSW 3SG
2-580-654-01 SCREW, +PWTP2 4X16
2-596-649-01 +KTT 3X10 (S TYPE)
4-635-966-01 SCREW (HEX)
51
53
57
52
58
55
54
55
56
59
61
60
66
65
64
62
63
