Sony RM-YD024 - H3 VM Board and H4 Board Removal; Cabinet Cover, Speaker Cover and Speaker Box Removal

15
KDL-40XBR7
KDL-40XBR7
1
Disconnect 1 connector and release H4 Board from Cabinet
2
Unhook Guide Light and remove from H4 Board
3
Disconnect 1 connector and remove from Cabinet
4
Remove LED Bracket from H3VM Board

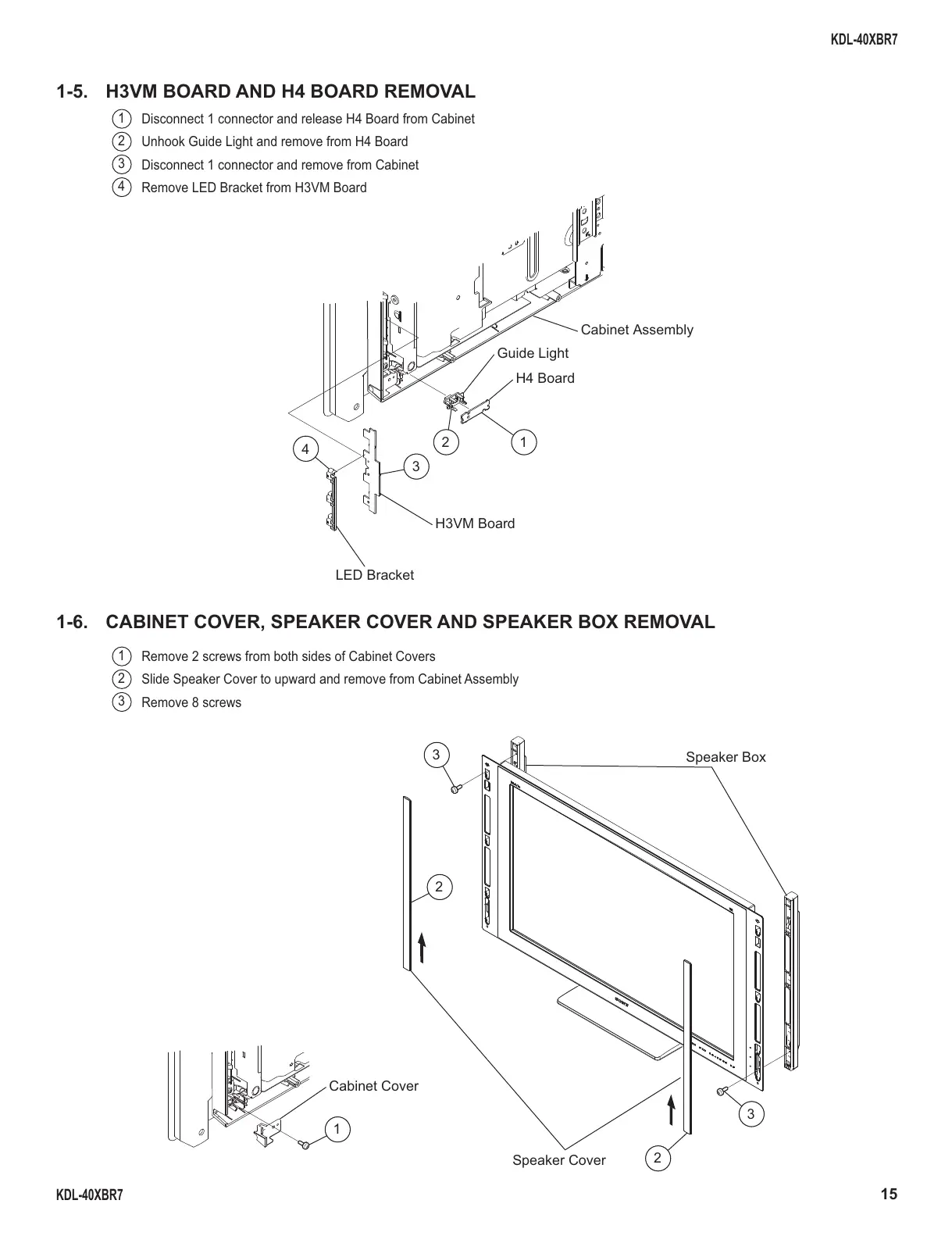

1-5. H3VM BOARD AND H4 BOARD REMOVAL
Guide Light
Cabinet Assembly
H4 Board
H3VM Board
LED Bracket
12
3
4
1-6. CABINET COVER, SPEAKER COVER AND SPEAKER BOX REMOVAL
1
Remove 2 screws from both sides of Cabinet Covers
2
Slide Speaker Cover to upward and remove from Cabinet Assembly
3
Remove 8 screws
Cabinet Cover
Speaker Box
Speaker Cover
3
2
3
2
1
