KDL-40XBR7
KDL-40XBR7
73
*
Items marked with an asterisk are not stocked since they
are seldom required for routine service. Expect some delay
when ordering these components.
RESISTORS
• All resistors are in ohms
• F : nonfl ammable
• All variable and adjustable resistors
have characteristic curve B, unless
otherwise noted.
REF. NO. PART NO. DESCRIPTION VALUES
When ordering parts by reference
number, please include the board name.
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by a red outline and a mark
contain confi dential information. Specifi c instructions must be
adhered to whenever these components are repaired and/or
replaced.
See Appendix A: Encryption Key Components in the back of this
manual.
AU

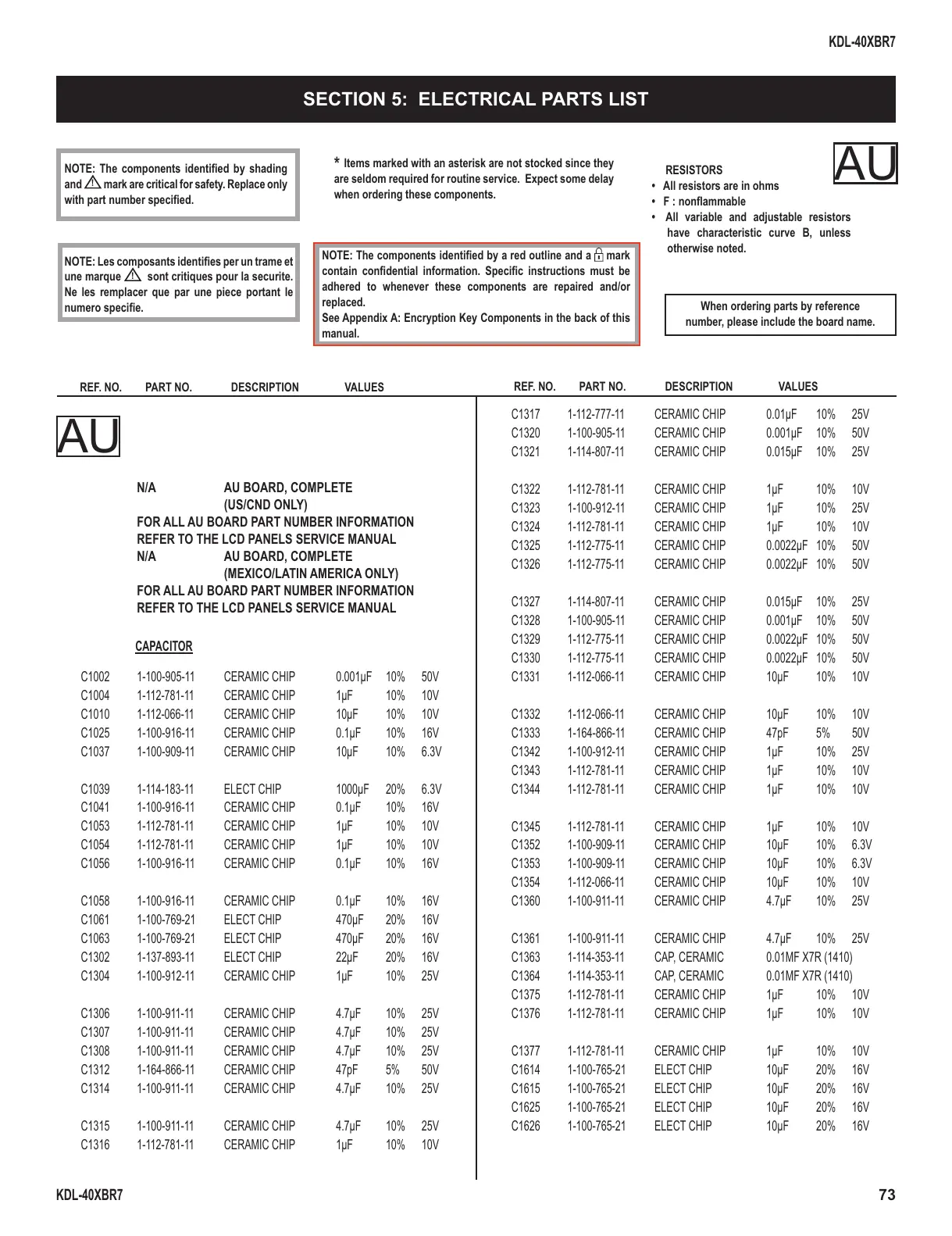

SECTION 5: ELECTRICAL PARTS LIST
AU
N/A AU BOARD, COMPLETE
(US/CND ONLY)
FOR ALL AU BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
N/A AU BOARD, COMPLETE
(MEXICO/LATIN AMERICA ONLY)
FOR ALL AU BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
CAPACITOR
C1002 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C1004 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1010 1-112-066-11 CERAMIC CHIP 10μF 10% 10V
C1025 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C1037 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V
C1039 1-114-183-11 ELECT CHIP 1000μF 20% 6.3V
C1041 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C1053 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1054 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1056 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C1058 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C1061 1-100-769-21 ELECT CHIP 470μF 20% 16V
C1063 1-100-769-21 ELECT CHIP 470μF 20% 16V
C1302 1-137-893-11 ELECT CHIP 22μF 20% 16V
C1304 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C1306 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C1307 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C1308 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C1312 1-164-866-11 CERAMIC CHIP 47pF 5% 50V
C1314 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C1315 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C1316 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1317 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V
C1320 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C1321 1-114-807-11 CERAMIC CHIP 0.015μF 10% 25V
C1322 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1323 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C1324 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1325 1-112-775-11 CERAMIC CHIP 0.0022μF 10% 50V
C1326 1-112-775-11 CERAMIC CHIP 0.0022μF 10% 50V
C1327 1-114-807-11 CERAMIC CHIP 0.015μF 10% 25V
C1328 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C1329 1-112-775-11 CERAMIC CHIP 0.0022μF 10% 50V
C1330 1-112-775-11 CERAMIC CHIP 0.0022μF 10% 50V
C1331 1-112-066-11 CERAMIC CHIP 10μF 10% 10V
C1332 1-112-066-11 CERAMIC CHIP 10μF 10% 10V
C1333 1-164-866-11 CERAMIC CHIP 47pF 5% 50V
C1342 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C1343 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1344 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1345 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1352 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V
C1353 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V
C1354 1-112-066-11 CERAMIC CHIP 10μF 10% 10V
C1360 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C1361 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C1363 1-114-353-11 CAP, CERAMIC 0.01MF X7R (1410)
C1364 1-114-353-11 CAP, CERAMIC 0.01MF X7R (1410)
C1375 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1376 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1377 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
C1614 1-100-765-21 ELECT CHIP 10μF 20% 16V
C1615 1-100-765-21 ELECT CHIP 10μF 20% 16V
C1625 1-100-765-21 ELECT CHIP 10μF 20% 16V
C1626 1-100-765-21 ELECT CHIP 10μF 20% 16V
