KDL-40XBR7
KDL-40XBR7
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

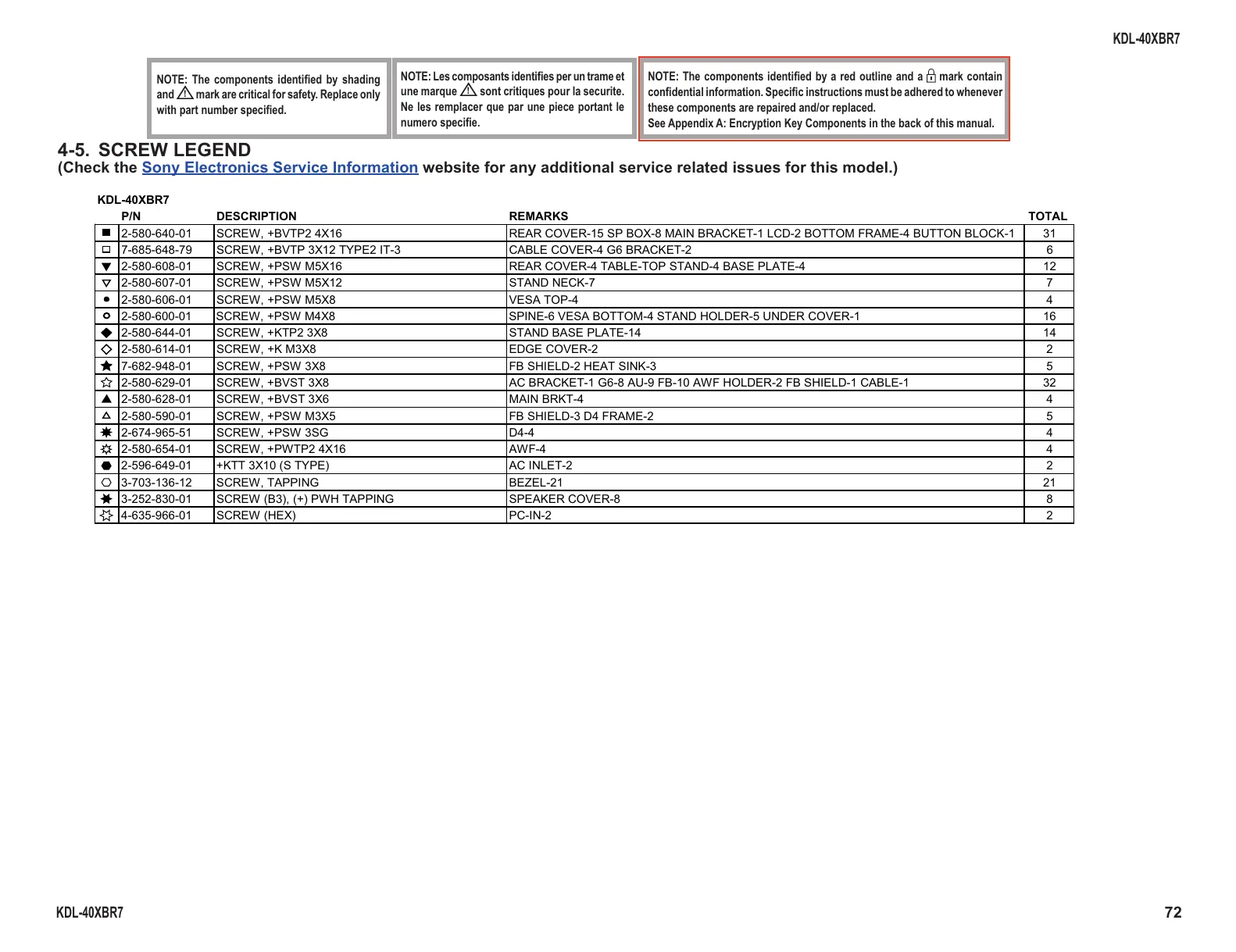

4-5. SCREW LEGEND
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
KDL-40XBR7
P/N DESCRIPTION REMARKS TOTAL
2-580-640-01 SCREW, +BVTP2 4X16 REAR COVER-15 SP BOX-8 MAIN BRACKET-1 LCD-2 BOTTOM FRAME-4 BUTTON BLOCK-1 31
7-685-648-79 SCREW, +BVTP 3X12 TYPE2 IT-3 CABLE COVER-4 G6 BRACKET-2 6
2-580-608-01 SCREW, +PSW M5X16 REAR COVER-4 TABLE-TOP STAND-4 BASE PLATE-4 12
2-580-607-01 SCREW, +PSW M5X12 STAND NECK-7 7
2-580-606-01 SCREW, +PSW M5X8 VESA TOP-4 4
2-580-600-01 SCREW, +PSW M4X8 SPINE-6 VESA BOTTOM-4 STAND HOLDER-5 UNDER COVER-1 16
2-580-644-01 SCREW, +KTP2 3X8 STAND BASE PLATE-14 14
2-580-614-01 SCREW, +K M3X8 EDGE COVER-2 2
7-682-948-01 SCREW, +PSW 3X8 FB SHIELD-2 HEAT SINK-3 5
2-580-629-01 SCREW, +BVST 3X8 AC BRACKET-1 G6-8 AU-9 FB-10 AWF HOLDER-2 FB SHIELD-1 CABLE-1 32
2-580-628-01 SCREW, +BVST 3X6 MAIN BRKT-4 4
2-580-590-01 SCREW, +PSW M3X5 FB SHIELD-3 D4 FRAME-2 5
2-674-965-51 SCREW, +PSW 3SG D4-4 4
2-580-654-01 SCREW, +PWTP2 4X16 AWF-4 4
2-596-649-01 +KTT 3X10 (S TYPE) AC INLET-2 2
3-703-136-12 SCREW, TAPPING BEZEL-21 21
3-252-830-01 SCREW (B3), (+) PWH TAPPING SPEAKER COVER-8 8
4-635-966-01 SCREW (HEX) PC-IN-2 2
