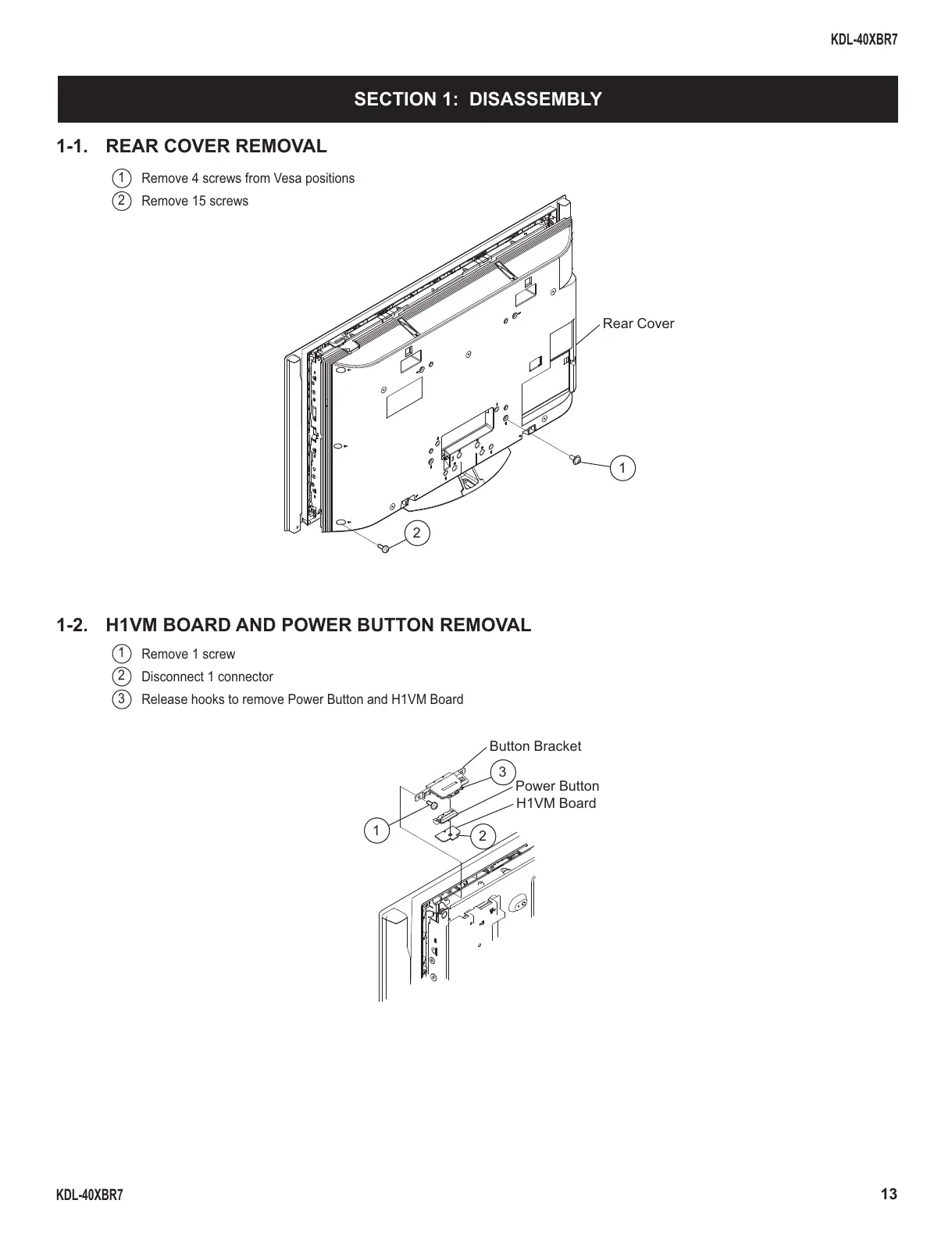

SECTION 1: DISASSEMBLY
1-1. REAR COVER REMOVAL
1
Remove 4 screws from Vesa positions
2
Remove 15 screws
1
Remove 1 screw
2
Disconnect 1 connector
3
Release hooks to remove Power Button and H1VM Board
1-2. H1VM BOARD AND POWER BUTTON REMOVAL
Rear Cover
2
1
Button Bracket
Power Button
H1VM Board
1
2
3
