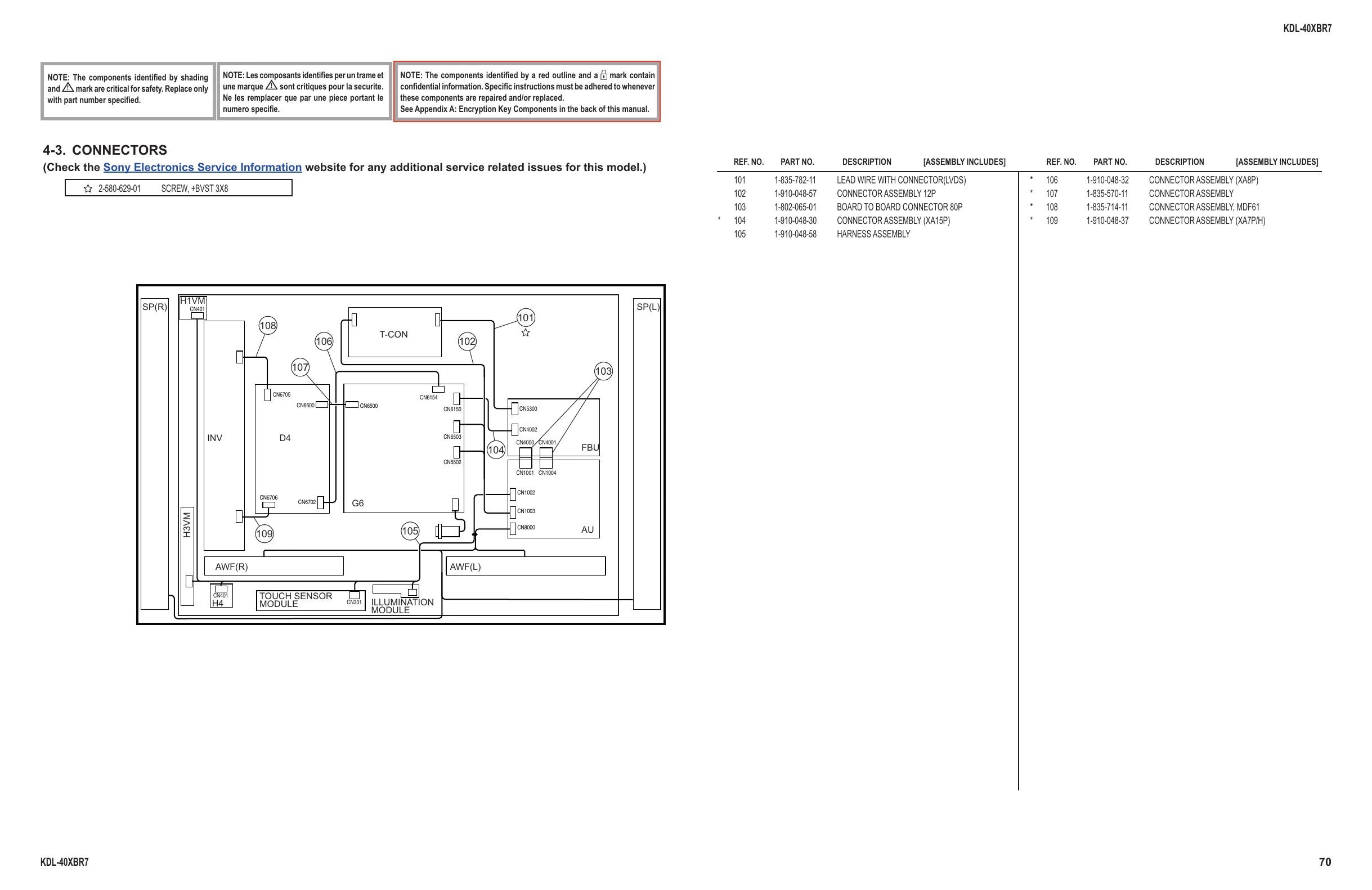

4-3. CONNECTORS
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
101 1-835-782-11 LEAD WIRE WITH CONNECTOR(LVDS)
102 1-910-048-57 CONNECTOR ASSEMBLY 12P
103 1-802-065-01 BOARD TO BOARD CONNECTOR 80P
* 104 1-910-048-30 CONNECTOR ASSEMBLY (XA15P)
105 1-910-048-58 HARNESS ASSEMBLY
* 106 1-910-048-32 CONNECTOR ASSEMBLY (XA8P)
* 107 1-835-570-11 CONNECTOR ASSEMBLY
* 108 1-835-714-11 CONNECTOR ASSEMBLY, MDF61
* 109 1-910-048-37 CONNECTOR ASSEMBLY (XA7P/H)
2-580-629-01 SCREW, +BVST 3X8
CN6706
CN6705
CN1002
CN1003
CN8000
CN6502
CN6503
CN6150
CN6154
CN6702
CN6500
CN6600
CN4000 CN4001
CN1001 CN1004
CN5300
CN4002
CN401
CN301
T-CON
G6
D4INV
AWF(L)AWF(R)
H4
CN401
H1VM
TOUCH SENSOR
MODULE
SP(L)SP(R)
ILLUMINATION
MODULE
H3VM
AU
FBU
101
102
105
104
103
108
106
107
109
To Next Page
