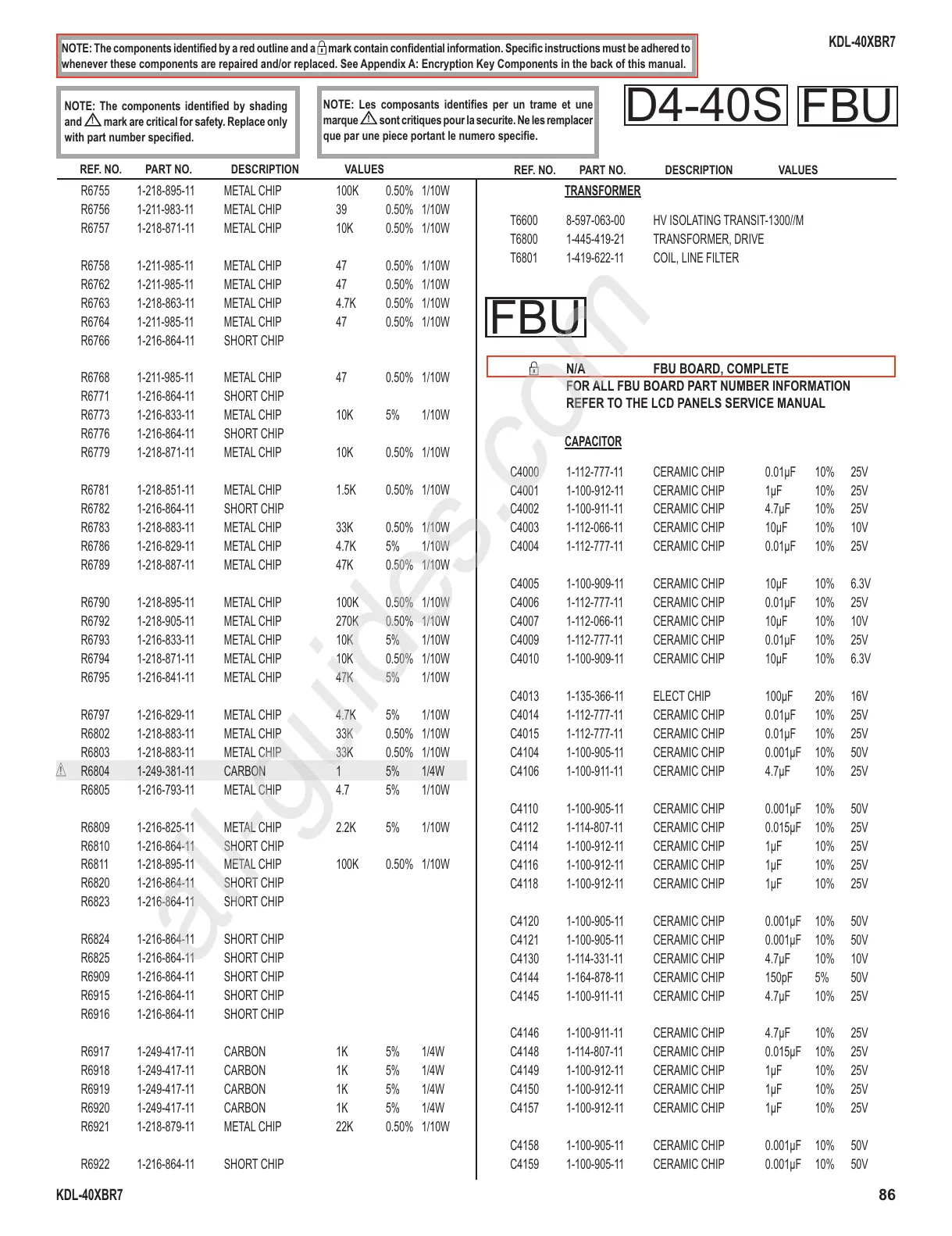

KDL-40XBR7
KDL-40XBR7
86
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
NOTE: The components identifi ed by a red outline and a mark contain confi dential information. Specifi c instructions must be adhered to
whenever these components are repaired and/or replaced. See Appendix A: Encryption Key Components in the back of this manual.
R6755 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6756 1-211-983-11 METAL CHIP 39 0.50% 1/10W
R6757 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6758 1-211-985-11 METAL CHIP 47 0.50% 1/10W
R6762 1-211-985-11 METAL CHIP 47 0.50% 1/10W
R6763 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6764 1-211-985-11 METAL CHIP 47 0.50% 1/10W
R6766 1-216-864-11 SHORT CHIP
R6768 1-211-985-11 METAL CHIP 47 0.50% 1/10W
R6771 1-216-864-11 SHORT CHIP
R6773 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6776 1-216-864-11 SHORT CHIP
R6779 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6781 1-218-851-11 METAL CHIP 1.5K 0.50% 1/10W
R6782 1-216-864-11 SHORT CHIP
R6783 1-218-883-11 METAL CHIP 33K 0.50% 1/10W
R6786 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6789 1-218-887-11 METAL CHIP 47K 0.50% 1/10W
R6790 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6792 1-218-905-11 METAL CHIP 270K 0.50% 1/10W
R6793 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6794 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6795 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6797 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6802 1-218-883-11 METAL CHIP 33K 0.50% 1/10W
R6803 1-218-883-11 METAL CHIP 33K 0.50% 1/10W
! R6804 1-249-381-11 CARBON 1 5% 1/4W
R6805 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6809 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R6810 1-216-864-11 SHORT CHIP
R6811 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6820 1-216-864-11 SHORT CHIP
R6823 1-216-864-11 SHORT CHIP
R6824 1-216-864-11 SHORT CHIP
R6825 1-216-864-11 SHORT CHIP
R6909 1-216-864-11 SHORT CHIP
R6915 1-216-864-11 SHORT CHIP
R6916 1-216-864-11 SHORT CHIP
R6917 1-249-417-11 CARBON 1K 5% 1/4W
R6918 1-249-417-11 CARBON 1K 5% 1/4W
R6919 1-249-417-11 CARBON 1K 5% 1/4W
R6920 1-249-417-11 CARBON 1K 5% 1/4W
R6921 1-218-879-11 METAL CHIP 22K 0.50% 1/10W
R6922 1-216-864-11 SHORT CHIP
TRANSFORMER
T6600 8-597-063-00 HV ISOLATING TRANSIT-1300//M
T6800 1-445-419-21 TRANSFORMER, DRIVE
T6801 1-419-622-11 COIL, LINE FILTER
FBU
N/A FBU BOARD, COMPLETE
FOR ALL FBU BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
CAPACITOR
C4000 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V
C4001 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C4002 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C4003 1-112-066-11 CERAMIC CHIP 10μF 10% 10V
C4004 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V
C4005 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V
C4006 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V
C4007 1-112-066-11 CERAMIC CHIP 10μF 10% 10V
C4009 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V
C4010 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V
C4013 1-135-366-11 ELECT CHIP 100μF 20% 16V
C4014 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V
C4015 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V
C4104 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C4106 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C4110 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C4112 1-114-807-11 CERAMIC CHIP 0.015μF 10% 25V
C4114 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C4116 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C4118 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C4120 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C4121 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C4130 1-114-331-11 CERAMIC CHIP 4.7μF 10% 10V
C4144 1-164-878-11 CERAMIC CHIP 150pF 5% 50V
C4145 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C4146 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V
C4148 1-114-807-11 CERAMIC CHIP 0.015μF 10% 25V
C4149 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C4150 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C4157 1-100-912-11 CERAMIC CHIP 1μF 10% 25V
C4158 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
C4159 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V
D4-40S
FBU
