KDL-40XBR7
KDL-40XBR7
93

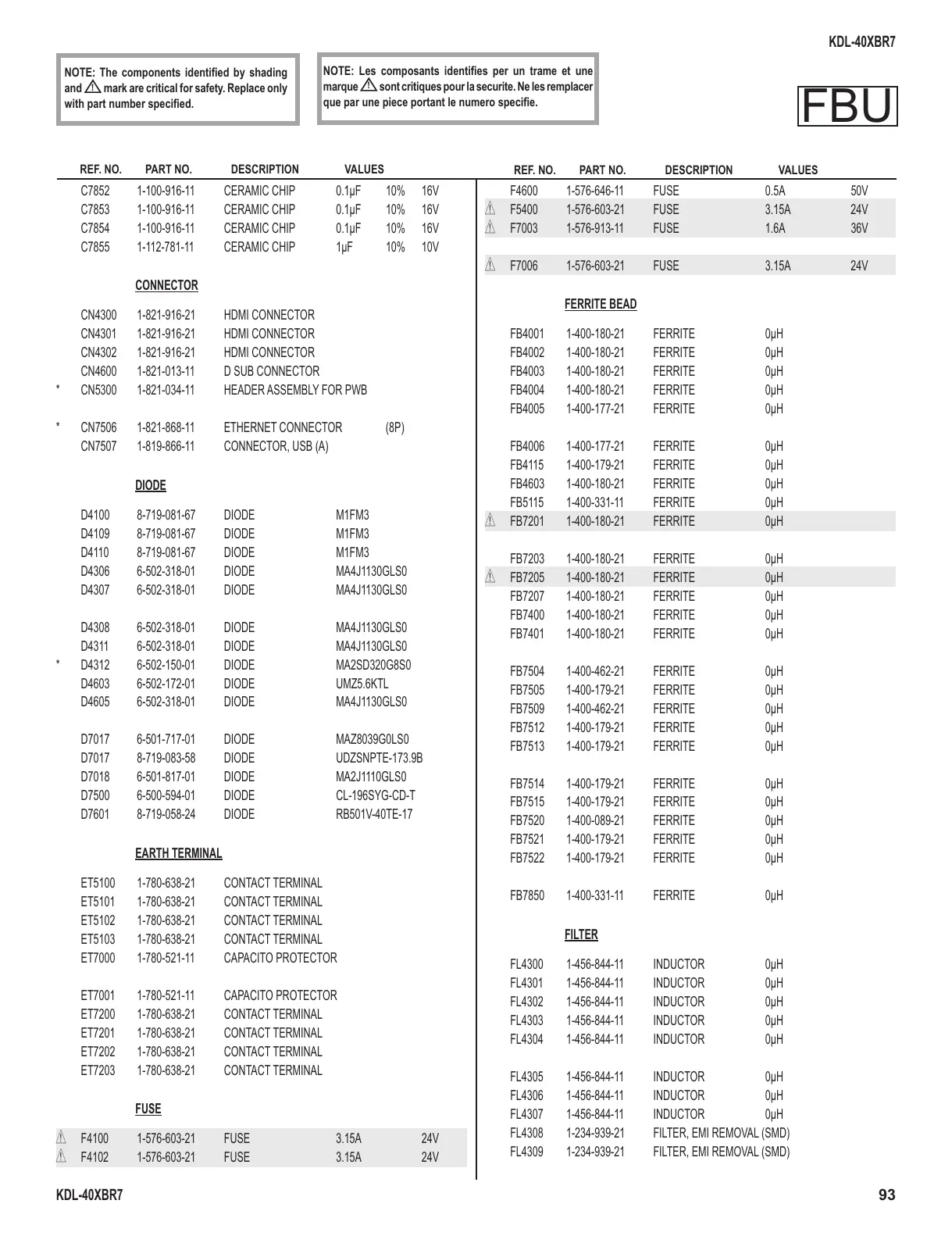

REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
C7852 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C7853 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C7854 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V
C7855 1-112-781-11 CERAMIC CHIP 1μF 10% 10V
CONNECTOR
CN4300 1-821-916-21 HDMI CONNECTOR
CN4301 1-821-916-21 HDMI CONNECTOR
CN4302 1-821-916-21 HDMI CONNECTOR
CN4600 1-821-013-11 D SUB CONNECTOR
* CN5300 1-821-034-11 HEADER ASSEMBLY FOR PWB
* CN7506 1-821-868-11 ETHERNET CONNECTOR (8P)
CN7507 1-819-866-11 CONNECTOR, USB (A)
DIODE
D4100 8-719-081-67 DIODE M1FM3
D4109 8-719-081-67 DIODE M1FM3
D4110 8-719-081-67 DIODE M1FM3
D4306 6-502-318-01 DIODE MA4J1130GLS0
D4307 6-502-318-01 DIODE MA4J1130GLS0
D4308 6-502-318-01 DIODE MA4J1130GLS0
D4311 6-502-318-01 DIODE MA4J1130GLS0
* D4312 6-502-150-01 DIODE MA2SD320G8S0
D4603 6-502-172-01 DIODE UMZ5.6KTL
D4605 6-502-318-01 DIODE MA4J1130GLS0
D7017 6-501-717-01 DIODE MAZ8039G0LS0
D7017 8-719-083-58 DIODE UDZSNPTE-173.9B
D7018 6-501-817-01 DIODE MA2J1110GLS0
D7500 6-500-594-01 DIODE CL-196SYG-CD-T
D7601 8-719-058-24 DIODE RB501V-40TE-17
EARTH TERMINAL
ET5100 1-780-638-21 CONTACT TERMINAL
ET5101 1-780-638-21 CONTACT TERMINAL
ET5102 1-780-638-21 CONTACT TERMINAL
ET5103 1-780-638-21 CONTACT TERMINAL
ET7000 1-780-521-11 CAPACITO PROTECTOR
ET7001 1-780-521-11 CAPACITO PROTECTOR
ET7200 1-780-638-21 CONTACT TERMINAL
ET7201 1-780-638-21 CONTACT TERMINAL
ET7202 1-780-638-21 CONTACT TERMINAL
ET7203 1-780-638-21 CONTACT TERMINAL
FUSE
! F4100 1-576-603-21 FUSE 3.15A 24V
! F4102 1-576-603-21 FUSE 3.15A 24V
F4600 1-576-646-11 FUSE 0.5A 50V
! F5400 1-576-603-21 FUSE 3.15A 24V
! F7003 1-576-913-11 FUSE 1.6A 36V
! F7006 1-576-603-21 FUSE 3.15A 24V
FERRITE BEAD
FB4001 1-400-180-21 FERRITE 0μH
FB4002 1-400-180-21 FERRITE 0μH
FB4003 1-400-180-21 FERRITE 0μH
FB4004 1-400-180-21 FERRITE 0μH
FB4005 1-400-177-21 FERRITE 0μH
FB4006 1-400-177-21 FERRITE 0μH
FB4115 1-400-179-21 FERRITE 0μH
FB4603 1-400-180-21 FERRITE 0μH
FB5115 1-400-331-11 FERRITE 0μH
! FB7201 1-400-180-21 FERRITE 0μH
FB7203 1-400-180-21 FERRITE 0μH
! FB7205 1-400-180-21 FERRITE 0μH
FB7207 1-400-180-21 FERRITE 0μH
FB7400 1-400-180-21 FERRITE 0μH
FB7401 1-400-180-21 FERRITE 0μH
FB7504 1-400-462-21 FERRITE 0μH
FB7505 1-400-179-21 FERRITE 0μH
FB7509 1-400-462-21 FERRITE 0μH
FB7512 1-400-179-21 FERRITE 0μH
FB7513 1-400-179-21 FERRITE 0μH
FB7514 1-400-179-21 FERRITE 0μH
FB7515 1-400-179-21 FERRITE 0μH
FB7520 1-400-089-21 FERRITE 0μH
FB7521 1-400-179-21 FERRITE 0μH
FB7522 1-400-179-21 FERRITE 0μH
FB7850 1-400-331-11 FERRITE 0μH
FILTER
FL4300 1-456-844-11 INDUCTOR 0μH
FL4301 1-456-844-11 INDUCTOR 0μH
FL4302 1-456-844-11 INDUCTOR 0μH
FL4303 1-456-844-11 INDUCTOR 0μH
FL4304 1-456-844-11 INDUCTOR 0μH
FL4305 1-456-844-11 INDUCTOR 0μH
FL4306 1-456-844-11 INDUCTOR 0μH
FL4307 1-456-844-11 INDUCTOR 0μH
FL4308 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FL4309 1-234-939-21 FILTER, EMI REMOVAL (SMD)
FBU
