Sony RM-YD024 - Page 95

KDL-40XBR7
KDL-40XBR7
95

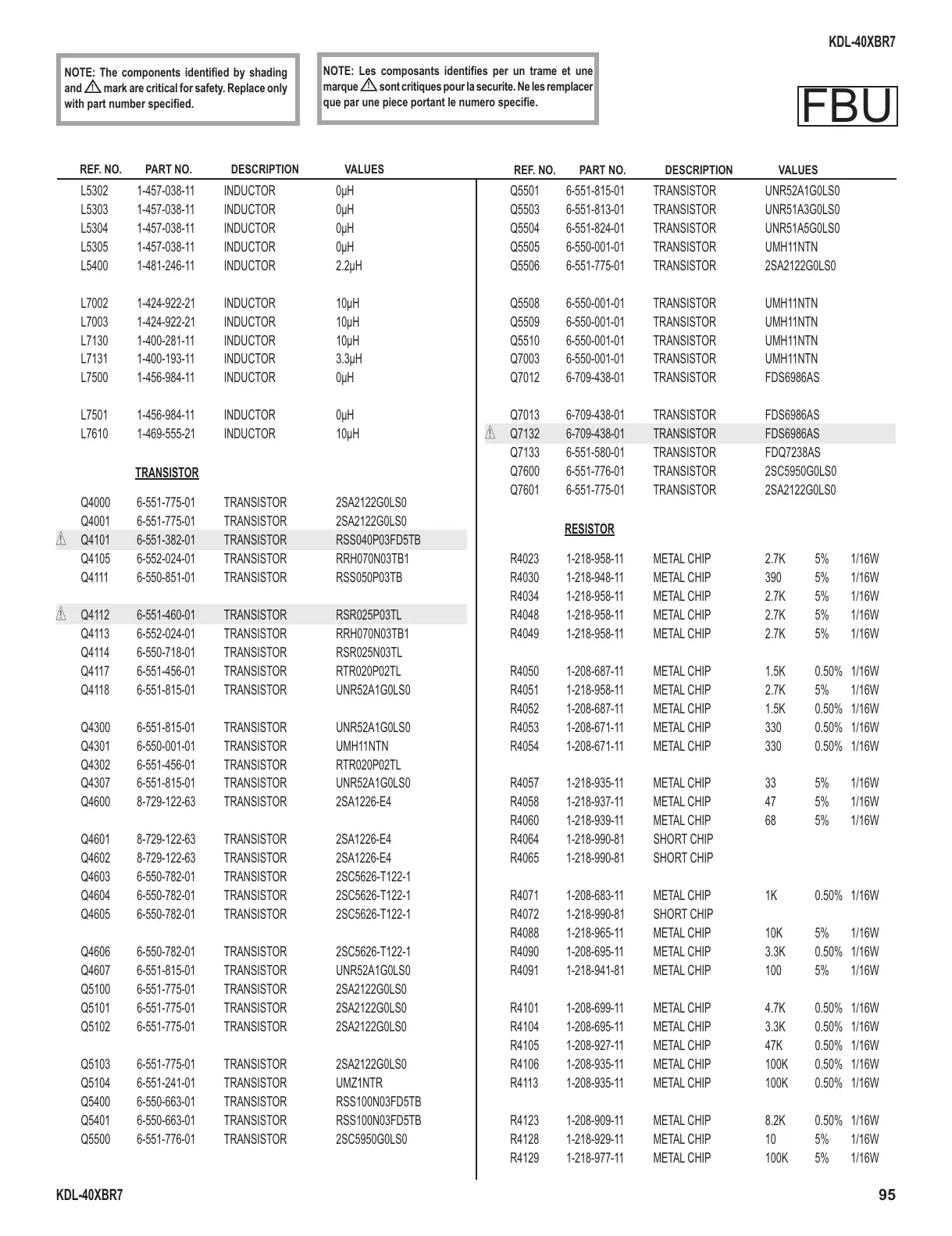

REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
L5302 1-457-038-11 INDUCTOR 0μH
L5303 1-457-038-11 INDUCTOR 0μH
L5304 1-457-038-11 INDUCTOR 0μH
L5305 1-457-038-11 INDUCTOR 0μH
L5400 1-481-246-11 INDUCTOR 2.2μH
L7002 1-424-922-21 INDUCTOR 10μH
L7003 1-424-922-21 INDUCTOR 10μH
L7130 1-400-281-11 INDUCTOR 10μH
L7131 1-400-193-11 INDUCTOR 3.3μH
L7500 1-456-984-11 INDUCTOR 0μH
L7501 1-456-984-11 INDUCTOR 0μH
L7610 1-469-555-21 INDUCTOR 10μH
TRANSISTOR
Q4000 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q4001 6-551-775-01 TRANSISTOR 2SA2122G0LS0
! Q4101 6-551-382-01 TRANSISTOR RSS040P03FD5TB
Q4105 6-552-024-01 TRANSISTOR RRH070N03TB1
Q4111 6-550-851-01 TRANSISTOR RSS050P03TB
! Q4112 6-551-460-01 TRANSISTOR RSR025P03TL
Q4113 6-552-024-01 TRANSISTOR RRH070N03TB1
Q4114 6-550-718-01 TRANSISTOR RSR025N03TL
Q4117 6-551-456-01 TRANSISTOR RTR020P02TL
Q4118 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q4300 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q4301 6-550-001-01 TRANSISTOR UMH11NTN
Q4302 6-551-456-01 TRANSISTOR RTR020P02TL
Q4307 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q4600 8-729-122-63 TRANSISTOR 2SA1226-E4
Q4601 8-729-122-63 TRANSISTOR 2SA1226-E4
Q4602 8-729-122-63 TRANSISTOR 2SA1226-E4
Q4603 6-550-782-01 TRANSISTOR 2SC5626-T122-1
Q4604 6-550-782-01 TRANSISTOR 2SC5626-T122-1
Q4605 6-550-782-01 TRANSISTOR 2SC5626-T122-1
Q4606 6-550-782-01 TRANSISTOR 2SC5626-T122-1
Q4607 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q5100 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q5101 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q5102 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q5103 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q5104 6-551-241-01 TRANSISTOR UMZ1NTR
Q5400 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q5401 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q5500 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q5501 6-551-815-01 TRANSISTOR UNR52A1G0LS0
Q5503 6-551-813-01 TRANSISTOR UNR51A3G0LS0
Q5504 6-551-824-01 TRANSISTOR UNR51A5G0LS0
Q5505 6-550-001-01 TRANSISTOR UMH11NTN
Q5506 6-551-775-01 TRANSISTOR 2SA2122G0LS0
Q5508 6-550-001-01 TRANSISTOR UMH11NTN
Q5509 6-550-001-01 TRANSISTOR UMH11NTN
Q5510 6-550-001-01 TRANSISTOR UMH11NTN
Q7003 6-550-001-01 TRANSISTOR UMH11NTN
Q7012 6-709-438-01 TRANSISTOR FDS6986AS
Q7013 6-709-438-01 TRANSISTOR FDS6986AS
! Q7132 6-709-438-01 TRANSISTOR FDS6986AS
Q7133 6-551-580-01 TRANSISTOR FDQ7238AS
Q7600 6-551-776-01 TRANSISTOR 2SC5950G0LS0
Q7601 6-551-775-01 TRANSISTOR 2SA2122G0LS0
RESISTOR
R4023 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R4030 1-218-948-11 METAL CHIP 390 5% 1/16W
R4034 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R4048 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R4049 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R4050 1-208-687-11 METAL CHIP 1.5K 0.50% 1/16W
R4051 1-218-958-11 METAL CHIP 2.7K 5% 1/16W
R4052 1-208-687-11 METAL CHIP 1.5K 0.50% 1/16W
R4053 1-208-671-11 METAL CHIP 330 0.50% 1/16W
R4054 1-208-671-11 METAL CHIP 330 0.50% 1/16W
R4057 1-218-935-11 METAL CHIP 33 5% 1/16W
R4058 1-218-937-11 METAL CHIP 47 5% 1/16W
R4060 1-218-939-11 METAL CHIP 68 5% 1/16W
R4064 1-218-990-81 SHORT CHIP
R4065 1-218-990-81 SHORT CHIP
R4071 1-208-683-11 METAL CHIP 1K 0.50% 1/16W
R4072 1-218-990-81 SHORT CHIP
R4088 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4090 1-208-695-11 METAL CHIP 3.3K 0.50% 1/16W
R4091 1-218-941-81 METAL CHIP 100 5% 1/16W
R4101 1-208-699-11 METAL CHIP 4.7K 0.50% 1/16W
R4104 1-208-695-11 METAL CHIP 3.3K 0.50% 1/16W
R4105 1-208-927-11 METAL CHIP 47K 0.50% 1/16W
R4106 1-208-935-11 METAL CHIP 100K 0.50% 1/16W
R4113 1-208-935-11 METAL CHIP 100K 0.50% 1/16W
R4123 1-208-909-11 METAL CHIP 8.2K 0.50% 1/16W
R4128 1-218-929-11 METAL CHIP 10 5% 1/16W
R4129 1-218-977-11 METAL CHIP 100K 5% 1/16W
