1-4
15
Getting Started

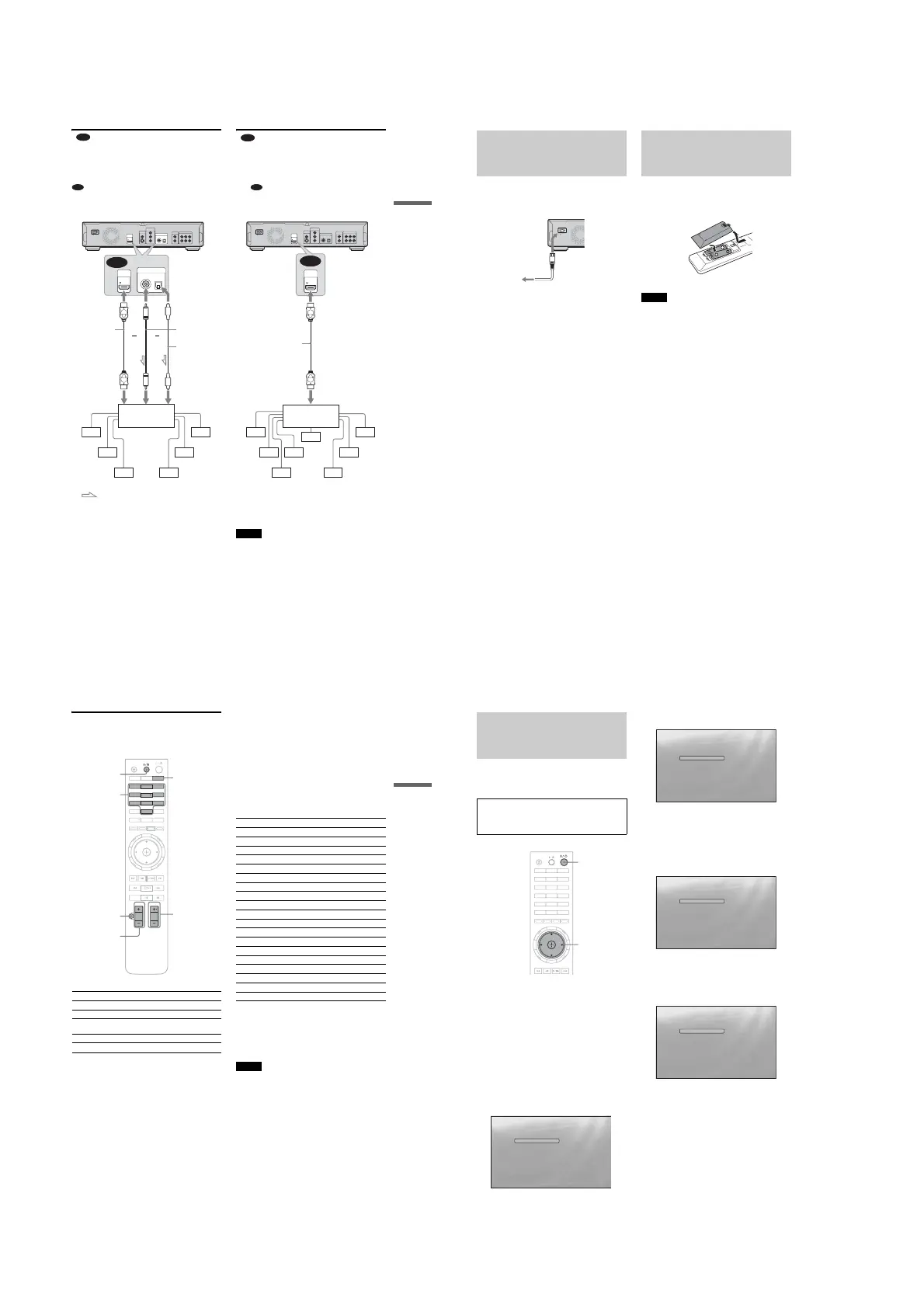

Connecting to an AV amplifier
(receiver) with a digital input jack and
6 speakers
If you want to use the Dolby Digital, or DTS decoder function
on your AV amplifier (receiver), connect to its digital jack using
. You can enjoy a more realistic audio presence.
Connecting to an AV amplifier
(receiver) with an HDMI input jack and
8 speakers
If your AV amplifier (receiver) accepts 8ch Linear PCM input
with an HDMI connection, you can enjoy the surround sound
using .
VIDEO
OUT
VIDEO
S VIDEO
HDMI
OUT
COMPONENT
VIDEO OUT
DIGITAL OUT
PCM/DTS/DOLBY DIGITAL
COAXIAL OPTICAL
AUDIO
OUT
L
R
5.1CH OUTPUT
L
R
WOOFER
FRONT REAR CENTER
AC IN
Y
P
B
P
R
D-2
HDMI
OUT
DIGITAL OUT
PCM/DTS/DOLBY DIGITAL
COAXIAL OPTICAL
to DIGITAL OUT
(COAXIAL
or OPTICAL)
Coaxial digital cord
(not supplied)
Optical digital cord
(not supplied)
to coaxial or optical
digital input
[Speakers] [Speakers]
Rear (L)
Rear (R)
Subwoofer Front (L)
Front (R)
Center
AV amplifier
(receiver) having a
decoder
: Signal flow
to HDMI OUT
HDMI cord
(not supplied)
or
to HDMI input
Blu-ray Disc player
or
z
Hint
For correct speaker location, see the operating instructions of the
connected components.
D-2
D-2
VIDEO
OUT
VIDEO
S VIDEO
HDMI
OUT
COMPONENT
VIDEO OUT
DIGITAL OUT
PCM/DTS/DOLBY DIGITAL
COAXIAL OPTICAL
AUDIO
OUT
L
R
5.1CH OUTPUT
L
R
WOOFER
FRONT REAR CENTER
AC IN
Y
P
B
P
R
D-3
HDMI
OUT
[Speakers] [Speakers]
Rear1 (L)
Rear1 (R)
Rear2 (L)
Front (L)
Front (R)
Center
AV amplifier
(receiver) with 8ch
outputs
to HDMI OUT
HDMI cord
(not supplied)
to HDMI input
Blu-ray Disc player
z
Hint
For correct speaker location, see the operating instructions of the
connected components.
Note
Not all HDMI-compatible AV amplifiers (receivers) accept 8ch Linear
PCM signals. See also the operating instructions supplied with the
connected AV amplifier (receiver).
Rear2 (R)
Subwoofer
D-3
D-3
16
Step 4: Connecting the
Power Cord
After all of the other connections are complete, connect the
supplied power cord to the AC IN terminal of the player. Then
plug the player and TV power cords into the AC outlet.
Step 5: Preparing the
Remote
You can control the player using the supplied remote. Insert two
Size AA (R6) batteries by matching the 3 and # ends on the
batteries to the markings inside the battery compartment. When
using the remote, point it at the remote sensor on the player
(page58).
AC IN
to AC outlet
to AC IN
Notes
•Do not leave the remote in an extremely hot or humid place.
•Do not drop any foreign object into the remote casing, particularly
when replacing the batteries.
•Do not expose the remote sensor to direct sunlight or a lighting
apparatus. Doing so may cause a malfunction.
• If you do not use the remote for an extended period of time, remove the
batteries to avoid possible damage from battery leakage and corrosion.
17
Getting Started
If you want to control your TV with the
supplied remote
You can control the volume, input source, and power switch of
your Sony TV with the supplied remote.
To control other TVs with the remote
You can control the volume, input source, and power switch of non-
Sony TVs as well.
If your TV is listed in the table below, set the appropriate
manufacturer’s code.
1 While holding down TV [/1, press the number
buttons to select your TV manufacturer’s code
(see the table below).
2 Release TV [/1.
◆Code numbers of controllable TVs
If more than one code number is listed, try entering them one at
a time until you find the one that works with your TV.
◆To return the remote to its default settings
1 Remove the batteries from the remote.
2 Re-insert the batteries while pressing down 1, 2,
and 3 of the number buttons.
3 Wait for a few seconds.
Note
Depending on the connected unit, you may not be able to control your
TV using all or some of the buttons on the supplied remote.
By pressing You can
TV [/1 Turn the TV on or off.
VOL +/– Adjust the volume of the TV.
TV/VIDEO
Switch the TV’s input source between the
TV and other input sources.
CH +/– Select the channel up and down.
MUTING
Mute the sound (for Sony TV only).
DISPLAY
OPEN/
CLOSE
DIMMER
CLEAR
123
456
78
0
9
TV/VIDEO
AUDIO SUBTITLE
ANGLE
SCAN
MUTING
PLAY MODE
PLAY SCAN
PREV
SLOW/STEP
NEXT
PAU SE
VOL CH
STOP
VIDEO
FORMAT
RED
GREEN
BLUE
YELLOW
TOP
MENU
SYSTEM
MENU
POP UP/
MENU
RETURN
TV
Number
buttons
MUTING
TV \/1
TV/VIDEO
CH +/–
VOL +/–
Manufacturer Code number
Sony 01 (default)
Daewoo 22, 04
Emerson 14
GE 06
Hitachi 02, 04
JVC 09
LG/Gold star 03, 17, 04
MGA/Mitsubishi 13, 04
NEC 04, 12
Panasonic 19
Philips 08, 21
Pioneer 16
RCA 10, 04
R.Shack 05
Samsung 04, 12, 20
Sanyo 11
Sharp 05, 18
Toshiba 07, 18
Zenith 15
18
Step 6: Easy Setup
Follow the steps below to make the minimum number of basic
adjustments for using the player. If you do not complete Easy
Setup, it will appear each time you turn on your player.
Make the settings below in the following order.
a Turn on the TV.
b Press [/1 to turn on the player.
The player turns on after a moment.
c Switch the input selector on your TV so that
the signal from the player appears on your
TV screen.
If the display for OSD language selection does not
appear, select “Start” of “Easy Setup” in “Options”
Setup (page 52).
d Select the OSD language you want to display,
and press ENTER.
This will determine the Audio, Subtitle and BD/
DVD menu languages as well.
e Select “Start,” and press ENTER to start
“Easy Setup.”
◆If the above display does not appear
Go to step 6. This display appears only when the player is turned
on for the first time.
f Select the video output format for the
connected TV, and press ENTER.
For details about the video output, see page 46.
◆ When using the HDMI OUT jack
Select from “Auto,” “480i,” “480p,” “720p,”
“1080i,” “1080p,” or “Source Direct,” then go to
step 8. “TV Type” in step 7 will be set to “16:9”
(wide screen).
◆ When using the jacks other than the HDMI OUT
jack
Select from “S-Video/Video only,” “480i,”
“480p,” “720p,” “1080i” or “Don’t Know.” If
you select “720p” or “1080i,” go to step 8. “TV
Type” in step 7 will be set to “16:9” (wide
screen).
When turned on for the first time
Wait about 90 seconds before the player turns on and starts
Easy Setup. The start-up time will be much shorter once Easy
Setup is completed.
OPEN/
CLOSE
DIMMER
CLEAR
123
456
78
0
9
DISPLAY
TV/VIDEO
AUDIO SUBTITLE
ANGLE
PREV
SLOW/STEP
NEXT
VIDEO
FORMAT
RED
GREEN
BLUE
YELLOW
TOP
MENU
SYSTEM
MENU
POP UP/
MENU
RETURN
TV
"/1
</M/m/,,
ENTER
Confirm Exit
SYSTEM MENU
Select the on-screen display language. Audio, subtitle and BD/DVD menu
language options will be set to the same language as this.
Language
Easy Setup
English
Français
Confirm Exit
SYSTEM MENU
Use to select then press ENTER.
Before using, make some simple
settings for the BD player.
Please use the Initial Setup if you
want to make more detailed settings.
Easy Setup
Start
Cancel
Confirm Exit
SYSTEM MENU
Select [Auto] to automatically match the video output
format with the HDMI-connected TV.
Output Video Format
Easy Setup
Auto
480i
480p
720p
1080i
1080p
Source Direct
Confirm Exit
SYSTEM MENU
Select [Auto] to automatically match the video output
format with the HDMI-connected TV.
Output Video Format
Easy Setup
S-Video/Video only
480i
480p
720p
1080i
Don't Know
To Next Page
