2-1
SECTION 2
DISASSEMBLY
BDP-S500
•This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
2-2. UPPER CASE
(Page 2-1)
2-6. MAIN BOARD
(Page 2-3)
2-7. AU-258 BOARD
(Page 2-3)
2-8. POWER BLOCK
(Page 2-4)
2-3. FRONT DISPLAY BLOCK
ASSY
(Page 2-2)
2-4. TRAY COVER ASSY
(Page 2-2)
2-5. BD DRIVE (SERVICE USE)
(Page 2-2)
SET
Note: Follow the disassembly procedure in the numerical order given.

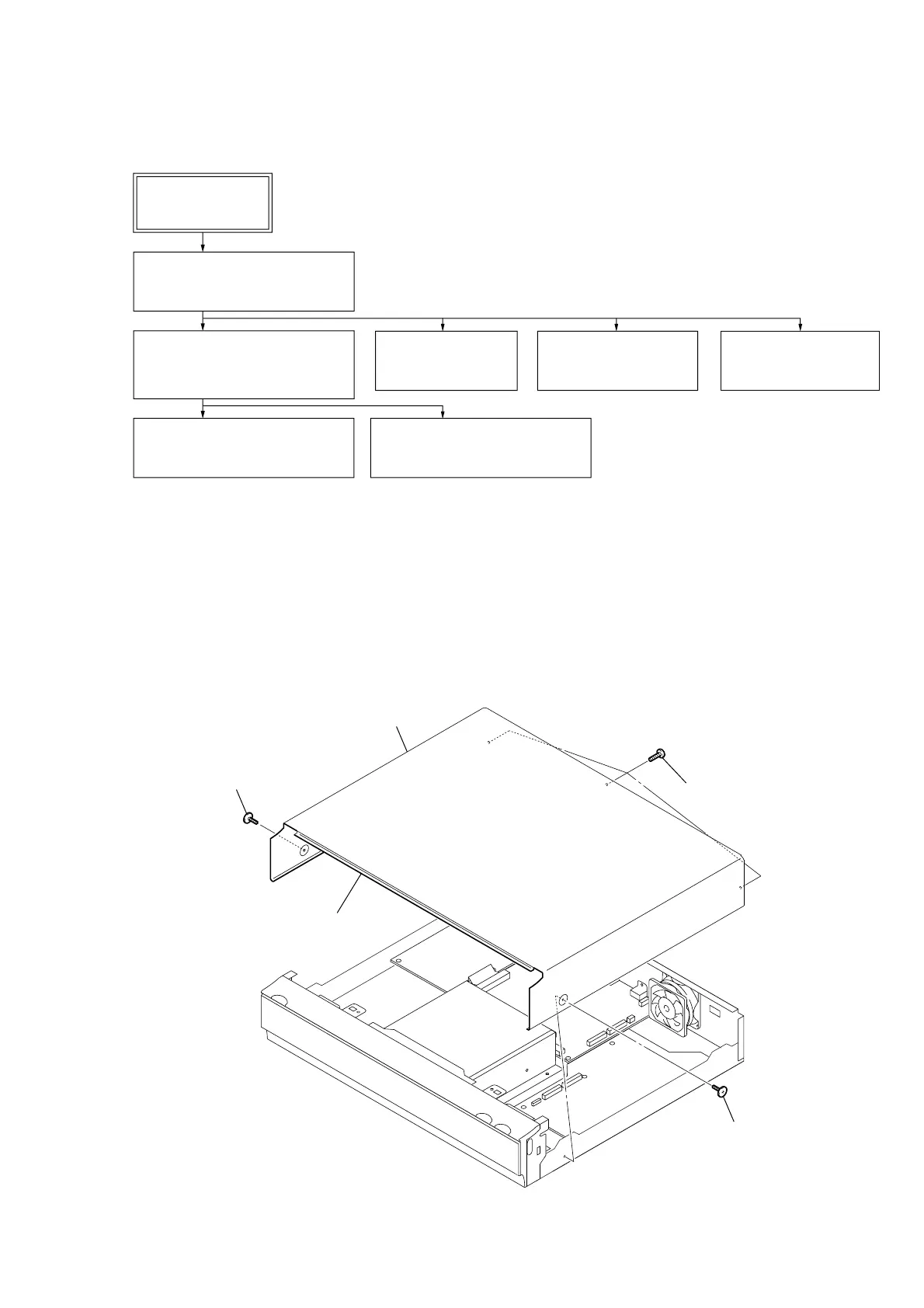

2-2. UPPER CASE
1 tapping screw
1 tapping screw
2 three screws
3 upper case
not supplied
