Sony RMT-B101A - Main Chassis Assembly Parts

6-2

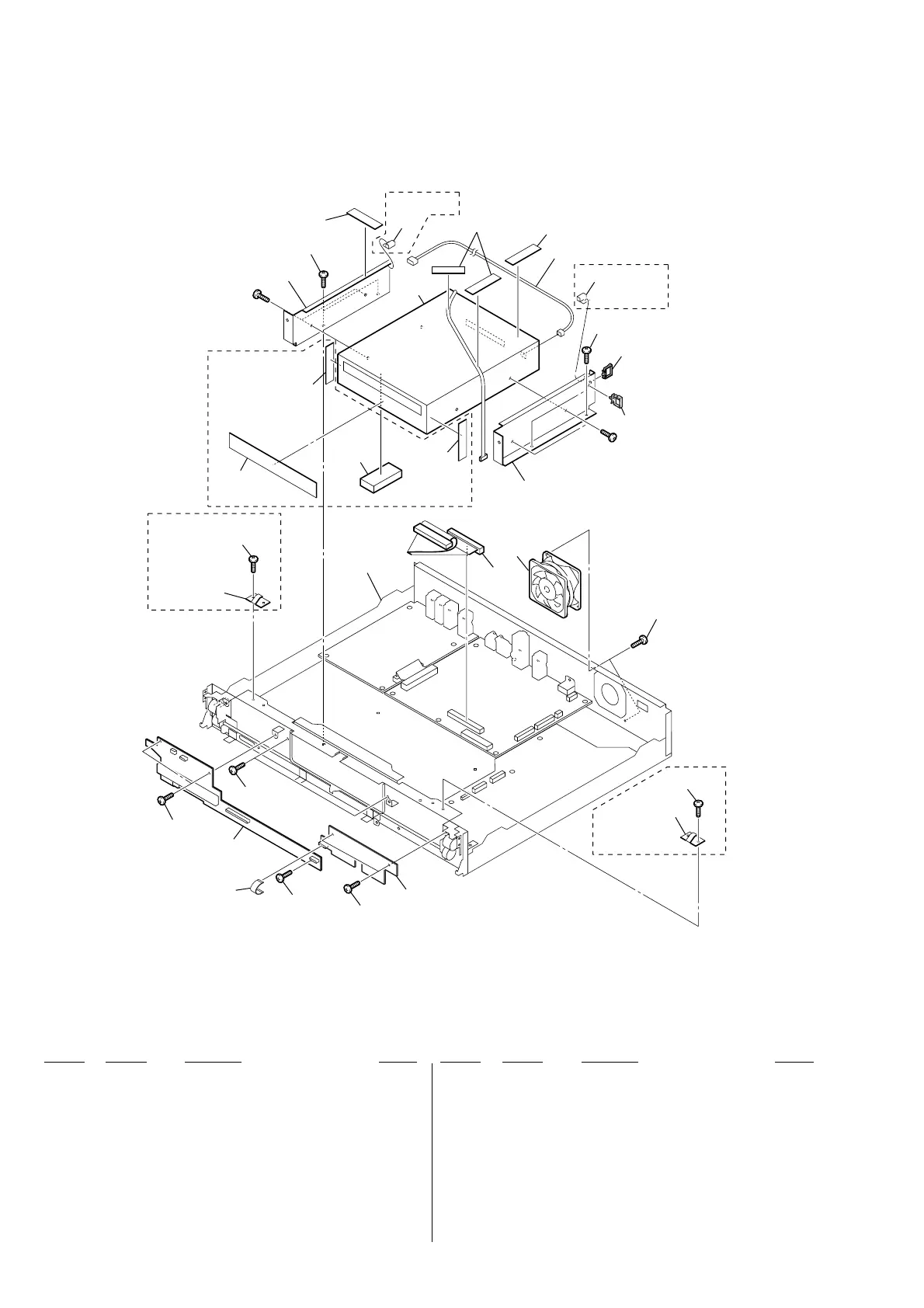

6-1-2. MAIN CHASSIS BLOCK
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 A-1334-394-A FR-276 BOARD, COMPLETE
52 3-077-331-01 +BV3 (3-CR)
53 A-1334-392-A FL-180 (S) BOARD, COMPLETE
54 A-1337-676-A DRIVE (SOEM (SERVICE USE R1)) (US, CND)
54 A-1337-677-A DRIVE (SOEM (SERVICE USE R2)) (AEP, UK)
54 A-1337-678-A DRIVE (SOEM (SERVICE USE R4)) (AUS)
54 A-1382-236-A DRIVE (SOEM (SERVICE USE R5)) (RUS)
55 3-087-220-01 TAPE, NON-HALOGENE
* 56 4-099-553-01 REUSE CLAMP
57 1-787-625-21 FAN, DC
58 3-077-331-31 +BV3 (3-CR)
* 59 1-834-510-11 CABLE, FLEXIBLE FLAT (FLR-013)
60 2-348-685-11 SPRING, EARTH (FRONT) (US, CND)
* 61 1-965-671-11 HARNESS (MBD-005) (US, CND)
* 61 1-965-672-11 HARNESS (MBD-006) (AEP, UK, RUS, AUS)
62 3-282-212-01 GASKET (BRAKET) (US, CND)
63 3-283-907-01 BLOCK, FCC (US, CND)
64 3-282-487-01 TAPE (D), SHIELD (US, CND)
65 3-283-864-01 TAPE (D-WH), SHIELD (US, CND)
#1 7-682-544-09 +B 3X3
