Sony RMT-B101A - Power Supply Block Diagram; FL-180 and FR-276 Power Circuits

BDP-S500
3-11 3-12E

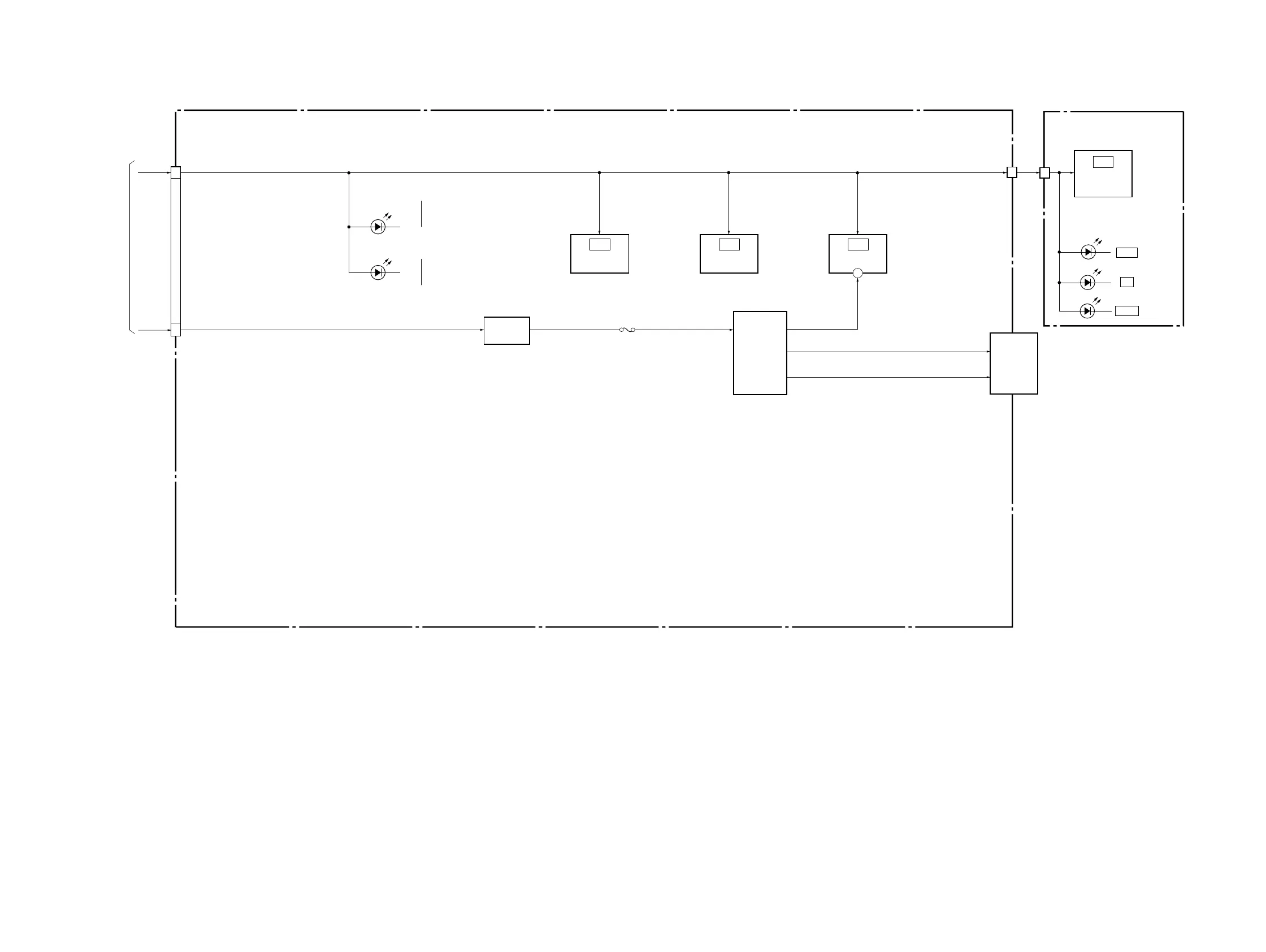

3-6. POWER 3 BLOCK DIAGRAM
05
FL-180 BOARD
(SEE PAGE 4-13)
FR-276 BOARD
(SEE PAGE 4-17)
CN102
CN601
15
CN100
V+5FL
Q106
B+ SWITCH
F100
ND100
FLUORESCENT
INDICATOR
TUBE
REMOTO
COMMANDER
RECEIVER
V+5E
T100,
Q107,108
DC-DC
CONVERTER
FL DRIVE
IC601
IC100
12
2
DOOR
IC200
MOTOR
IC201
DRIVE MOTOR
CONTROLLER
17
SW+5V
POWER 1
(SEE PAGE 3-8)
F2
F1
FL OFF
D601
HDMI
D603
HD
D602
VEE
30
D101,102
D101
(LED Blue)
D102
