2-3
DVP-NS47P/NS57P/NS508P/NS64P/NS67P/NS608P

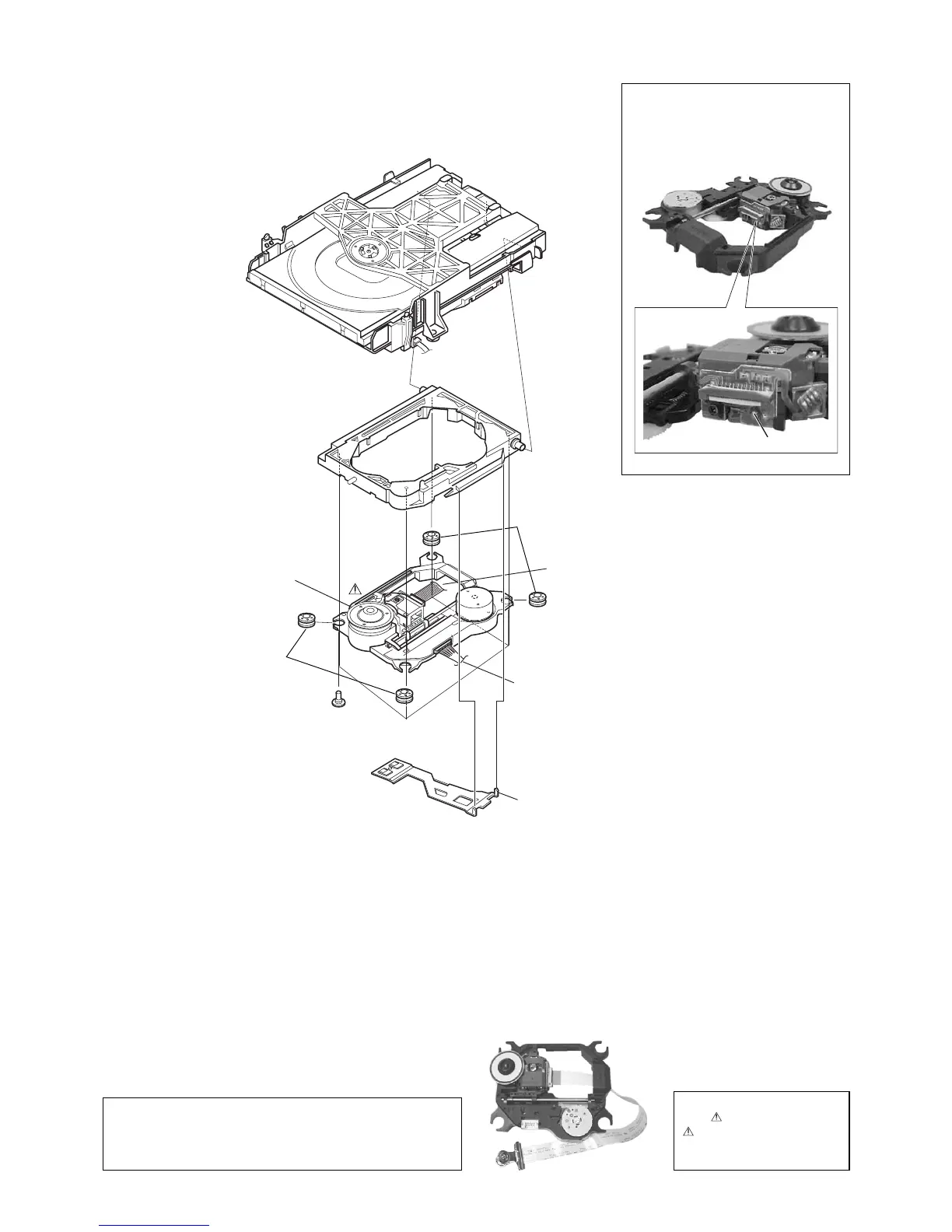

2-4. OPTICAL PICK-UP
(DEVICE, OPTICAL KHM-313CAA/C2RP)
Caution Point on the Laser Diode:
Laser Diode in the optical Device is very sensitive to Surge Current
or ElectroStatic Discharge (ESD):
After take-out FMO-013 Flat Flexible Cable from CN101 of
MV-57 board immediately ground FMO-013 Flat Flexible Cable
pattern using short clip. Metal paper clip can be used as short
clip.
5 FMO-013 Flat Flexible Cable (CN101, 24P)
4 MD-119 Harness (CN201, 6P)
1 Four Insulator Screws
6 Two Insulator
6 Two Insulator
3 Optical Device
(KHM-313CAA/C2RP)
2 FFC Holder
Shortland Position
Note:
Solder shortland before remove the
FMO-013 Flat Flexible Cable from
24 pin BU connector.
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part number
specified.
To Next Page
