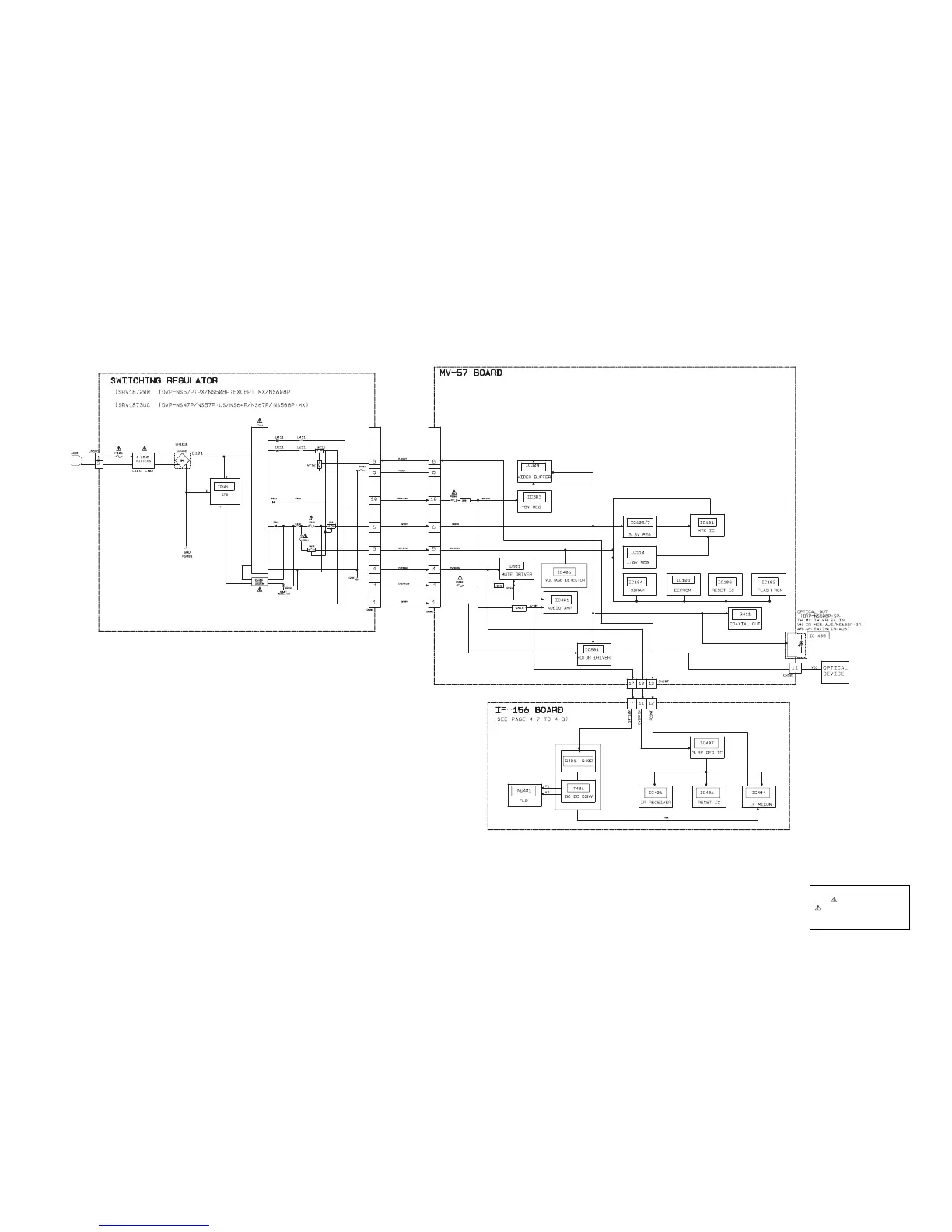

3-2. POWER LINE BLOCK DIAGRAM
(SEE PAGE 4-29 TO 4-30E)
(SEE PAGE 4-25 TO 4-26)
FG002
(SEE PAGE 4-11 TO 4-22)
TRANSFORMER
RECTIFIER
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part number
specified.
