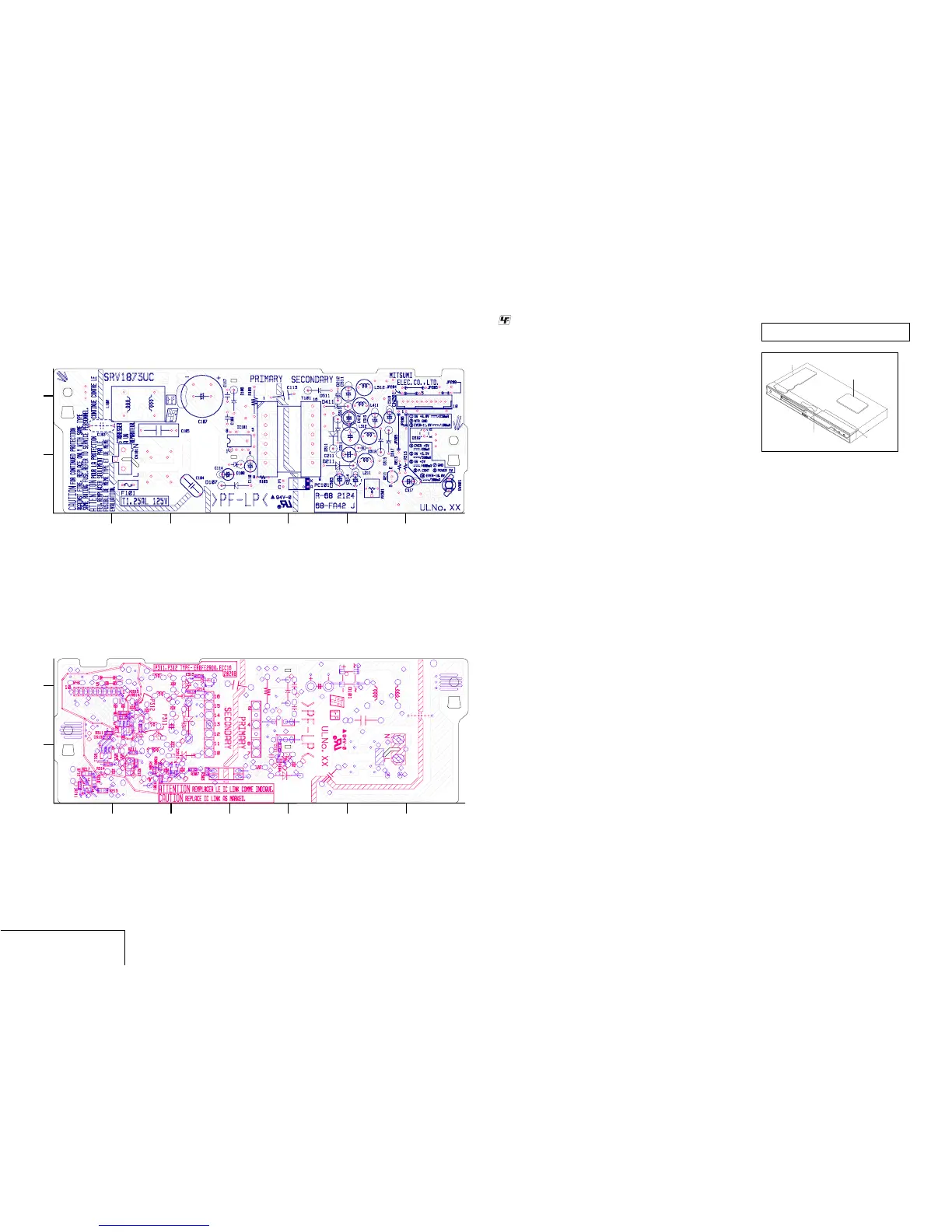

POWER BLOCK (SRV1873UC) PRINTED WIRING BOARD
POWER BOARD (SRV1873UC) (SIDE A)
POWER BOARD (SRV1873UC) (SIDE B)
• : Uses unleaded solder.
4 -284-27
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
POWER
BOARD
(SRV1873UC)
SIDE A
IC101 B-4
Q211 A-6
D106 C-4
D107 A-3
D108 A-4
D211 A-5
D212 C-5
D311 B-5
D312 B-6
D313 B-5
D315 B-6
D317 B-6
D319 B-7
D411 B-5
D511 C-5
SIDE B
IC611 A-3
D101 C-6
Q311 A-1
Q611 B-2
Q712 A-1
B
A
1
2
765
43
POWER BOARD
POWER BLOCK (SRV1873UC)
IF-156 Board
(INTERFACE)
Power Board
MV-057 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
MS-203 Board
