Sony SA-CT780 - Speaker (60 MM) (L-Ch, R-Ch) (SP1, SP2), Speaker (19 MM) (L-Ch, R-Ch) (SP3, SP4)

HT-CT780
10

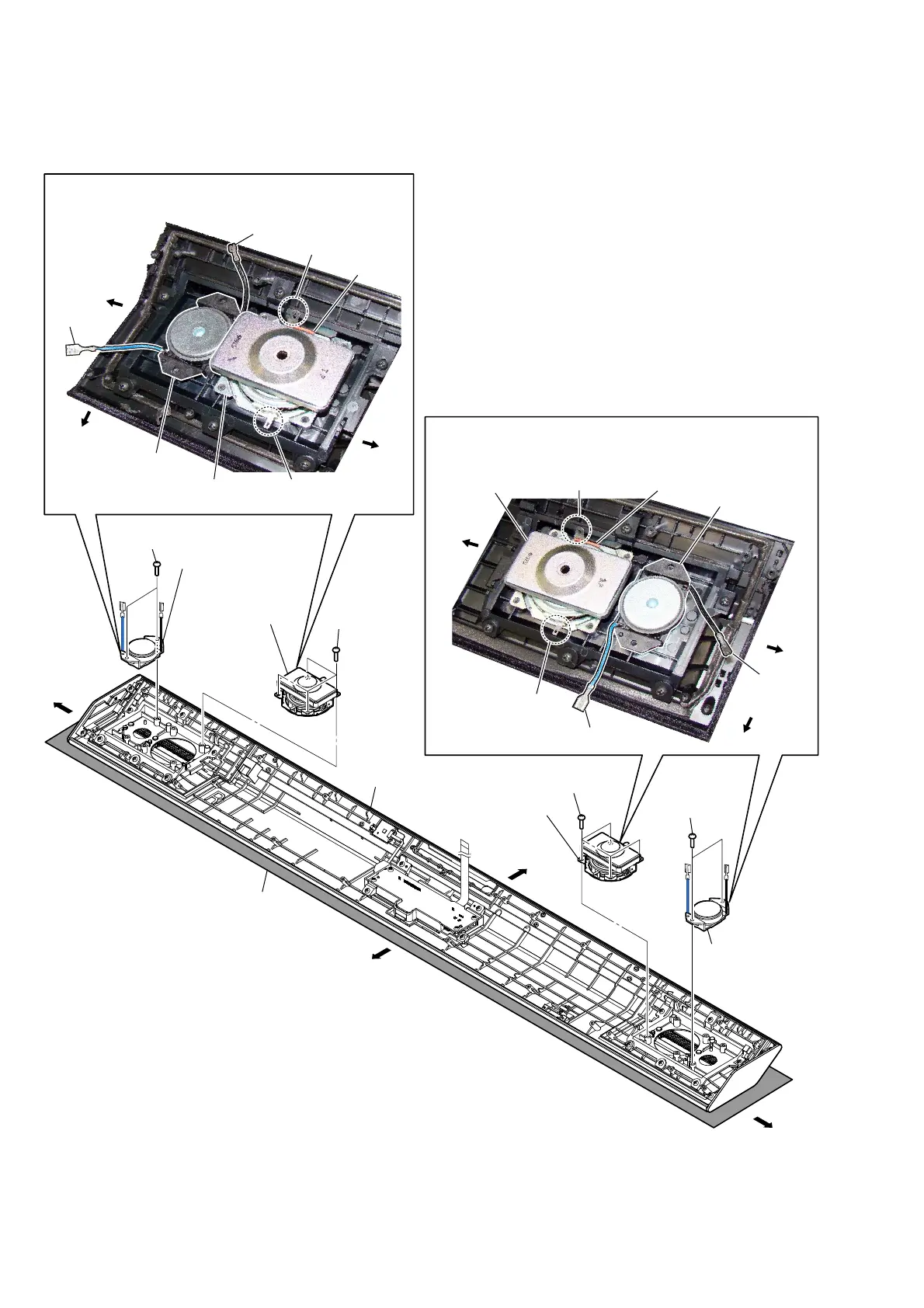

2-4. SPEAKER (60 mm) (L-CH, R-CH) (SP1, SP2), SPEAKER (19 mm) (L-CH, R-CH) (SP3, SP4)
2 speaker (60 mm)
(R-ch) (SP2)
1 four screws
(3.5)
– Top panel block bottom view –
Note:
Please spread a sheet under a
unit not to injure top panel.
rear side
top block
front side
left side
right side
6SHDNHUPP5FK63DQG
VSHDNHUPP5FK63setting
speaker (60 mm)
(R-ch) (SP2)
wide terminal side
red line
narrow terminal side
front side
front side
4 speaker (19 mm)
(L-ch) (SP3)
3 two screws
(3.5)
4 speaker (19 mm)
(R-ch) (SP4)
3 two screws
(3.5)
2 speaker (60 mm)
(L-ch) (SP1)
1 four screws
(3.5)
speaker (19 mm)
(R-ch) (SP4)
right side
right side
[black]
[blue]
left side
left side
6SHDNHUPP/FK63DQG
VSHDNHUPP/FK63setting
speaker (60 mm)
(L-ch) (SP1)
speaker (19 mm)
(L-ch) (SP3)
wide terminal side
red line
narrow terminal side
[black]
[blue]
