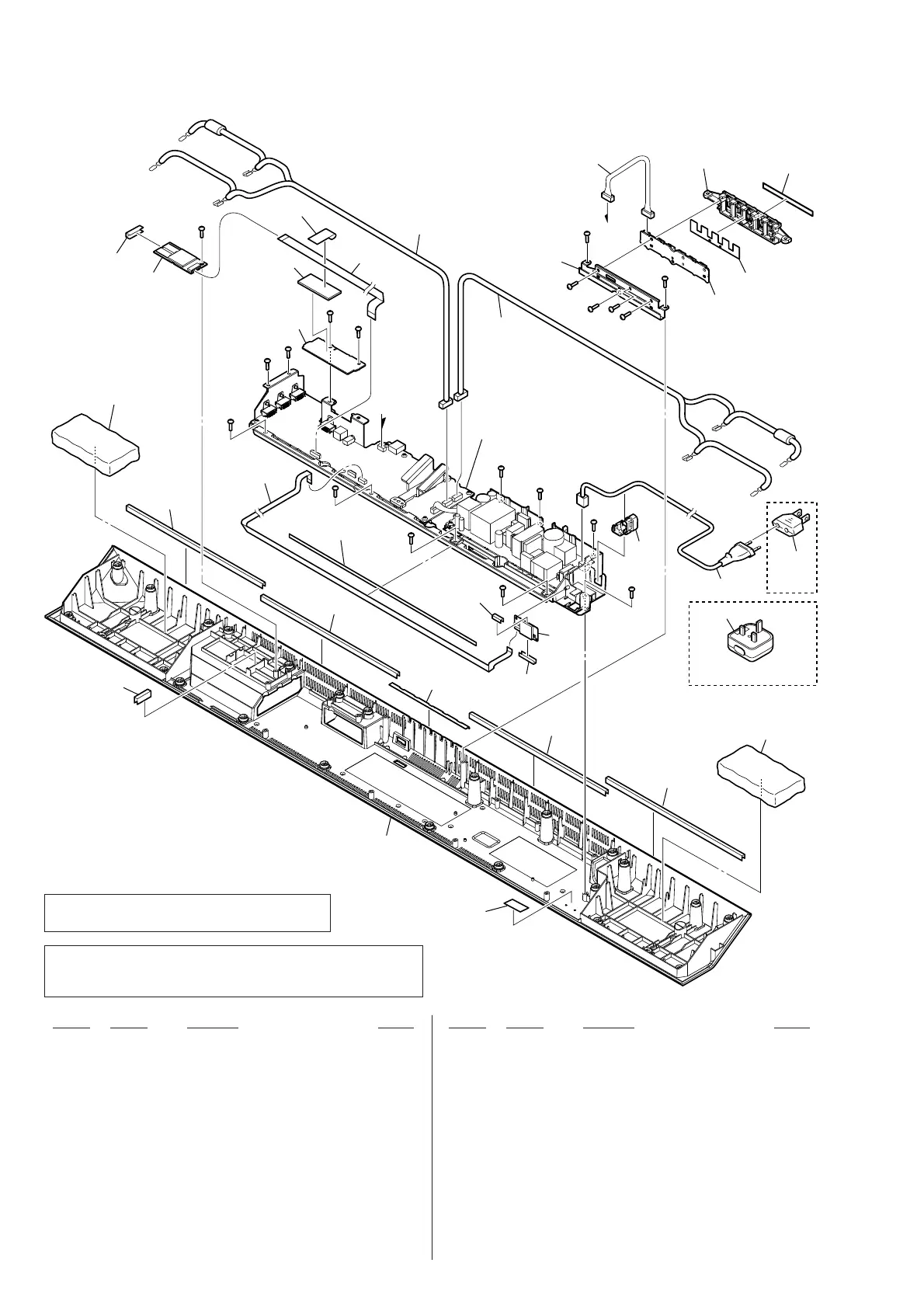

6-3. BOTTOM PANEL SECTION
101 4-538-318-41 CUSHION (QV, A)
102 4-564-649-02 SEALED PACKING CABI
103 4-548-762-01 KEY
104 A-2066-059-A KEY BOARD, COMPLETE
0 105 4-966-267-12 BUSHING (FBS001), CORD
106 X-2590-963-2 BOTTOM PANEL ASSY (US, CND)
106 X-2590-964-2 BOTTOM PANEL ASSY (Except US, CND)
0 AC1 1-834-966-42 POWER-SUPPLY CORD (AEP, E3, SP, PX)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-835-706-23 CORD, POWER-SUPPLY (BR)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-837-345-11 CORD, POWER-SUPPLY (TW)
0 AC1 1-837-822-21 CORD, POWER-SUPPLY (CH)
0 AC1 1-839-999-21 POWER-SUPPLY CORD (UK, EA3)
0 ACP1 1-785-504-21 ADAPTOR, CONVERSION (PX)
0 ACP2 1-770-019-72 ADAPTOR, CONVERSION PLUG 3P (SV)
(SP for Hong Kong only) (See Note 1)
BT1 1-490-558-92 BLUETOOTH MODULE
FFC1 9-833-606-96 FFC 14P
FFC2 9-833-606-95 FFC 24P
RF1 1-492-347-11 RF MODULATOR (SWA12-4V TX) (See Note 2)
SPC1 1-848-741-11 CONNECTION CABLE W/ SPK (L) (Left side)
SPC2 1-848-742-11 CONNECTION CABLE W/ SPK (R) (Right side)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-146-11 SCREW +P 3X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
MAIN board section
not supplied
not supplied
not supplied
102
102
106
102
102
101
101
AC1
105
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
not supplied
not supplied
not supplied
(CZ3-FFC
HOLDER board)
not supplied
not supplied
not supplied
A
A
not supplied
not supplied
FFC1
104
101
103
RF1
FFC2
BT1
#1
#1
#1
#1
#1
#1
#1
#1
SPC1
SPC2
ACP1
(PX)
ACP2
(SP for Hong Kong)
(See Note 1)
Note 2: When the RF modulator (Ref. No. RF1) is replaced, refer to
“NOTES ON THE WIRELESS CONNECTION (LINK) AF-
TER REPAIRS ARE COMPLETE” on page 5.
Ver. 1.1
Note 1: Ref. No. ACP2 is a service part used only for
the Singapore model sold in Hong Kong.
