Sony SA-CT780 - KEY Board, Key

HT-CT780
16

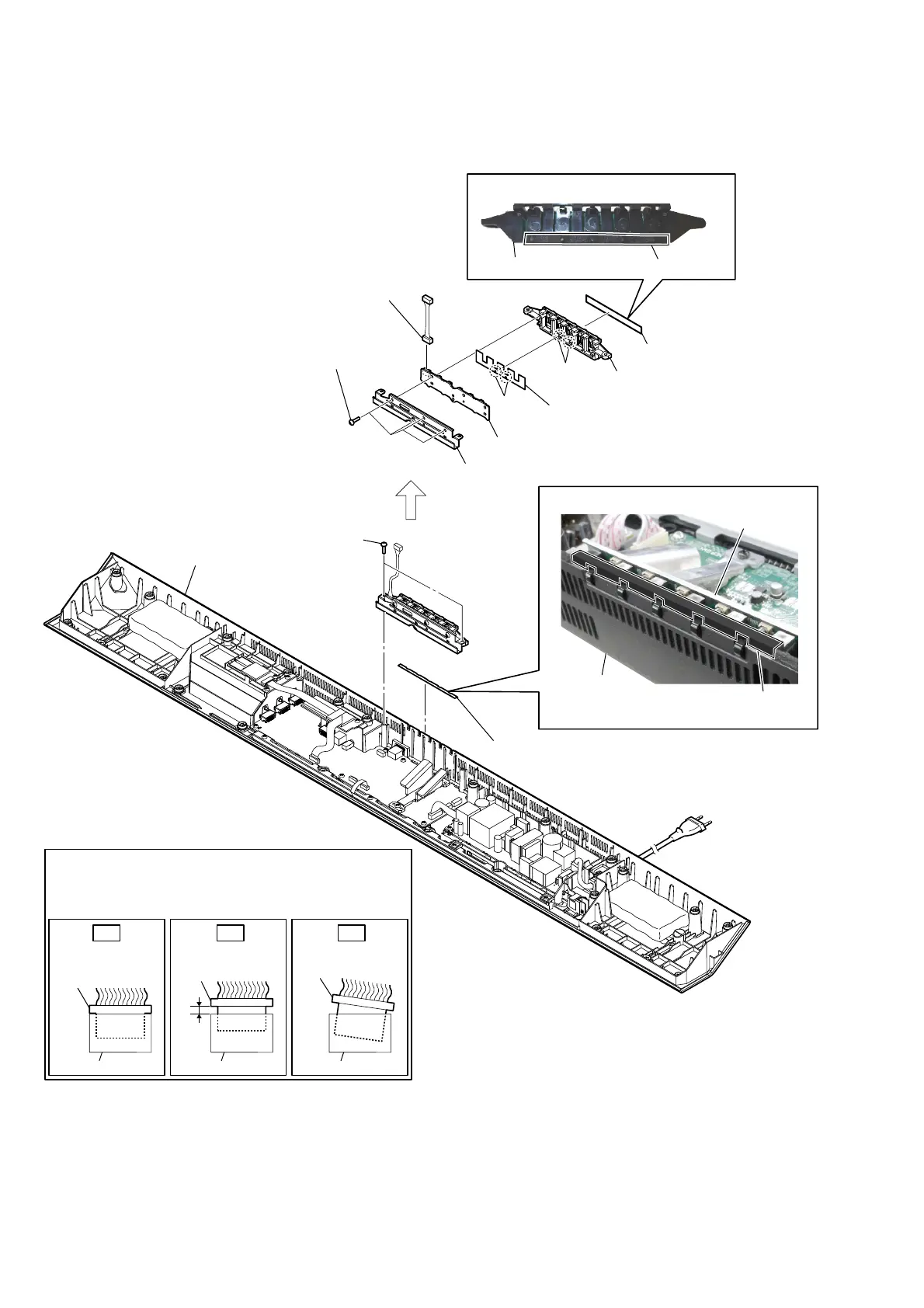

2-10. KEY BOARD, KEY
1 cushion key top
2 two screws
(BVTP3 u 10)
4 four screws
(BVTP3 u 10)
9 KEY board
3 connector
(CN871)
8 key
hole
7 cushion key
5 bracket key
6 cushion (CZ)
,QVWDOODWLRQSRVLWLRQRIWKHFXVKLRQ&=
,QVWDOODWLRQSRVLWLRQRIWKHFXVKLRQNH\WRS
key
cushion key top
bottom block
KEY board
cushion (CZ)
Insert only part way.Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
+RZWRLQVWDOOWKHFRQQHFWRU
Insert the connector straight into the interior.
There is a possibility that using this unit without
the connector correctly installed will damage it.
bottom block
boss
–5HDUYLHZ–
