Sony SA-CT780 - Bottom Chassis Block

HT-CT780
20

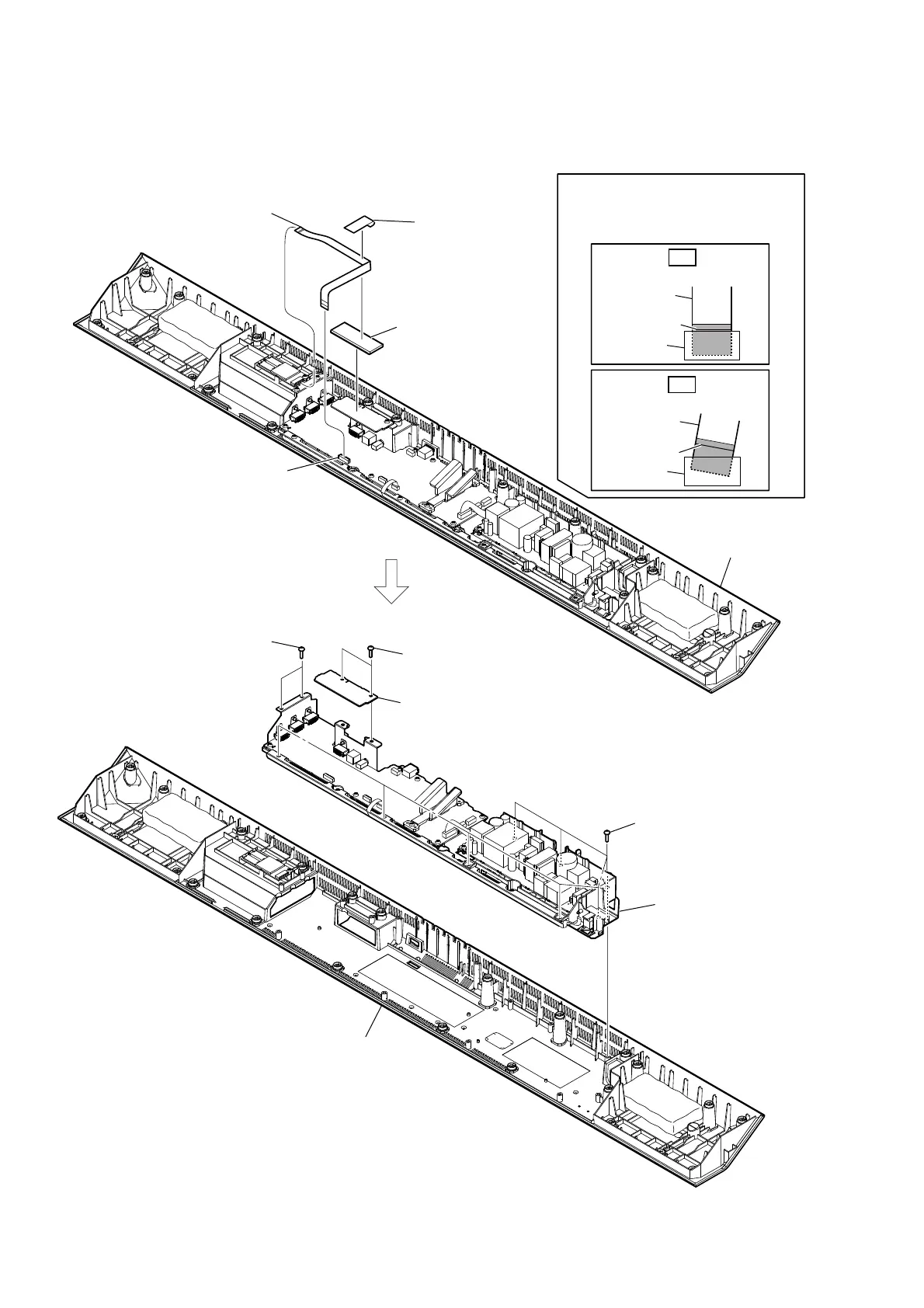

2-14. BOTTOM CHASSIS BLOCK
3 flexible flat cable
(24 core) (FFC2)
2 connector
(CN103)
1 cushion (CZ)
4 cushion absorbent
bottom panel block
7 bottom chassis block
6 CZ3 - FFC holder board
5 two screws
(BVTP3 u 10)
5 two screws
(BVTP3 u 10)
5 eight screws
(BVTP3 u 10)
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
 How to install the flexible flat cable
When installing the flexible flat cable,
ensure that the colored line is parallel
to the connector after insertion.
bottom block
