Sony SA-CT780 - Connection Cable with Speaker (L-Ch, R-Ch) (SPC1, SPC2)

HT-CT780
15

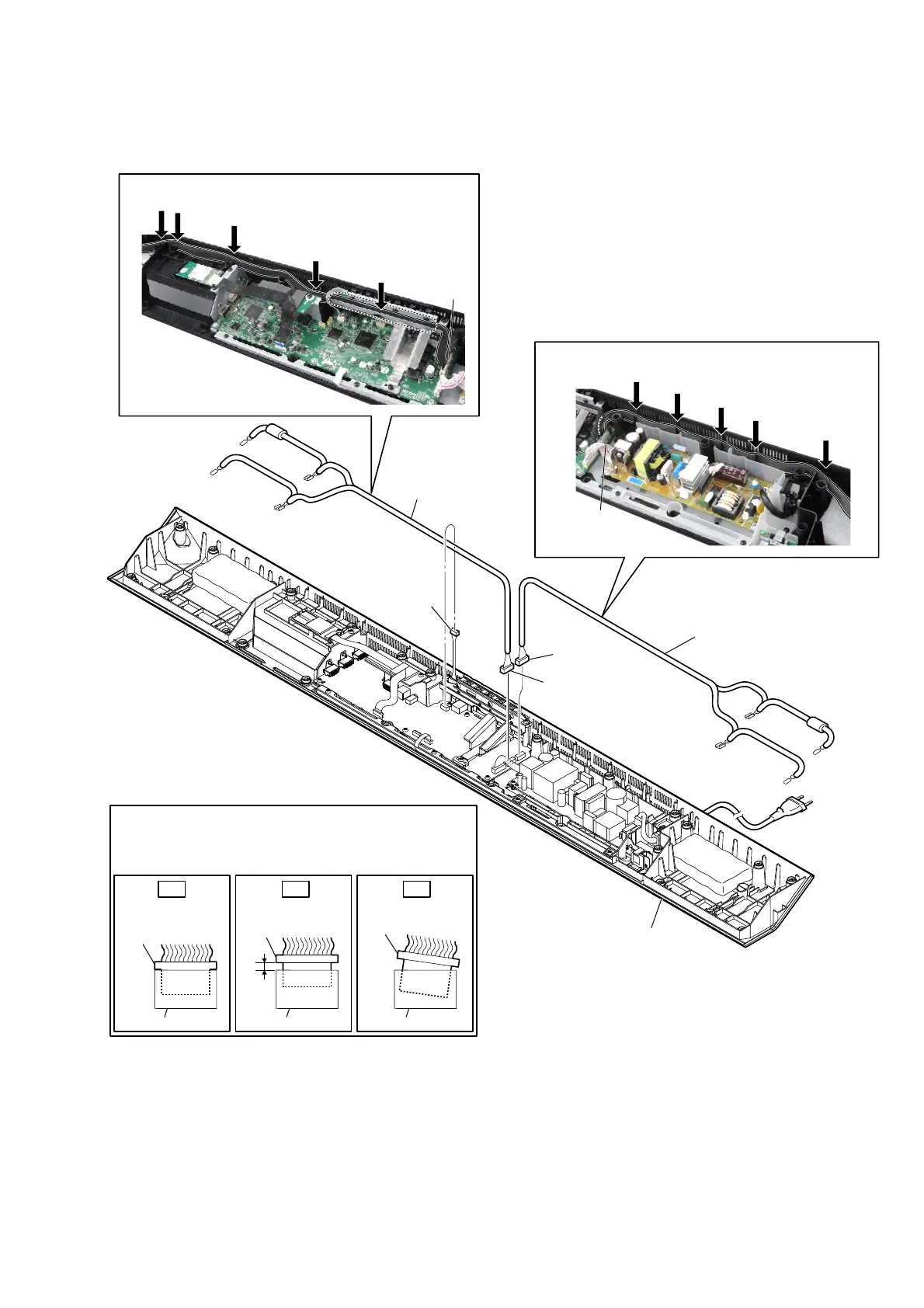

2-9. CONNECTION CABLE WITH SPEAKER (L-CH, R-CH) (SPC1, SPC2)
2 connector
(CN502)
1 connector
(CN105)
2 connector
(CN501)
3 connection cable with speake
r
(R-ch) (SPC2)
3 connection cable
with speaker
(L-ch) (SPC1)
&RQQHFWLRQFDEOHZLWKVSHDNHU/FK63&VHWWLQJ
CN501
CN502
&RQQHFWLRQFDEOHZLWKVSHDNHU5FK63&VHWWLQJ
Push
Push
Push
Push
Push
Push
Push
Push
Push
Push
Insert only part way.Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
+RZWRLQVWDOOWKHFRQQHFWRU
Insert the connector straight into the interior.
There is a possibility that using this unit without
the connector correctly installed will damage it.
bottom block
