BOND FIXATION OF ELECTRIC PARTS
When complete POWER board or the following parts are replaced, it is necessary to fi x the parts by using the bond (SC608Z2) (Refer to
the fi gure below).
• POWER board:
C902, C903, C905, C914 or C915, C941, C967, C970, C977, C978, C980, C988, D901, F931, LF901, R934, TH901, VDR901
(C978, C980: Except US, Canadian and Taiwan models only)

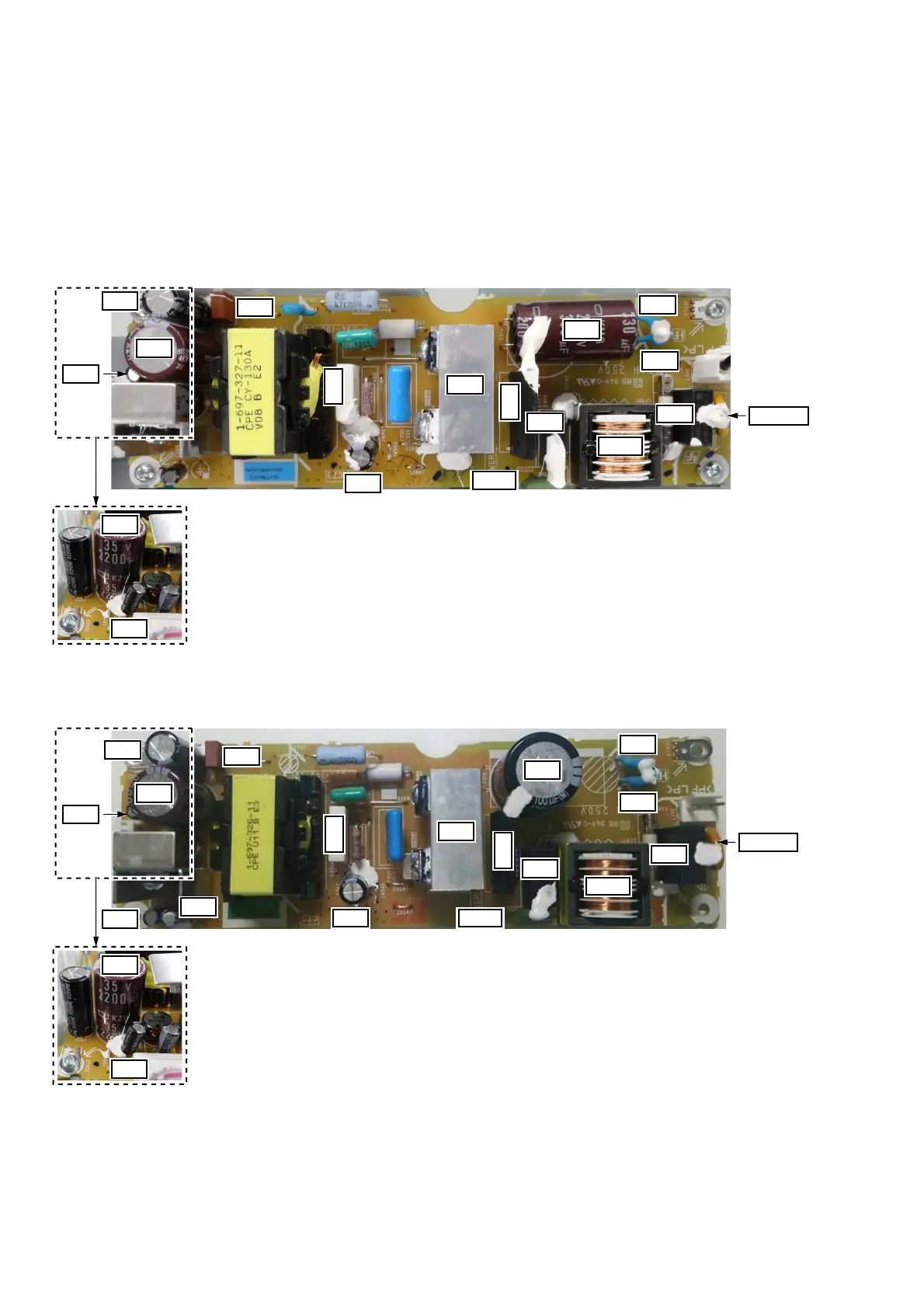

– POWER Board (Component Side) –
(US, Canadian and Taiwan models)
TH901
C988
C914
D901
A932
C941
R934
C967
C970
F931
C903
C902
C905
VDR901
LF901
– POWER Board (Component Side) –
(Except US, Canadian and Taiwan models)
TH901
C988
C915
D901
A932
C941
R934
C978
C980
C967
C977
C970
F931
C903
C902
C905
VDR901
LF901
C967
C977
C967
C977
C977
– Side view –
– Side view –
