Sony SCPH-77004 - Connecting to a TV; Before Connecting the Console; Connecting via Supplied AV Cable

9
Connecting to a TV
Note
For part names of the Analog Controller (DUALSHOCK®2), see “Using the
Analog Controller (DUALSHOCK
®2)” ( page 17).

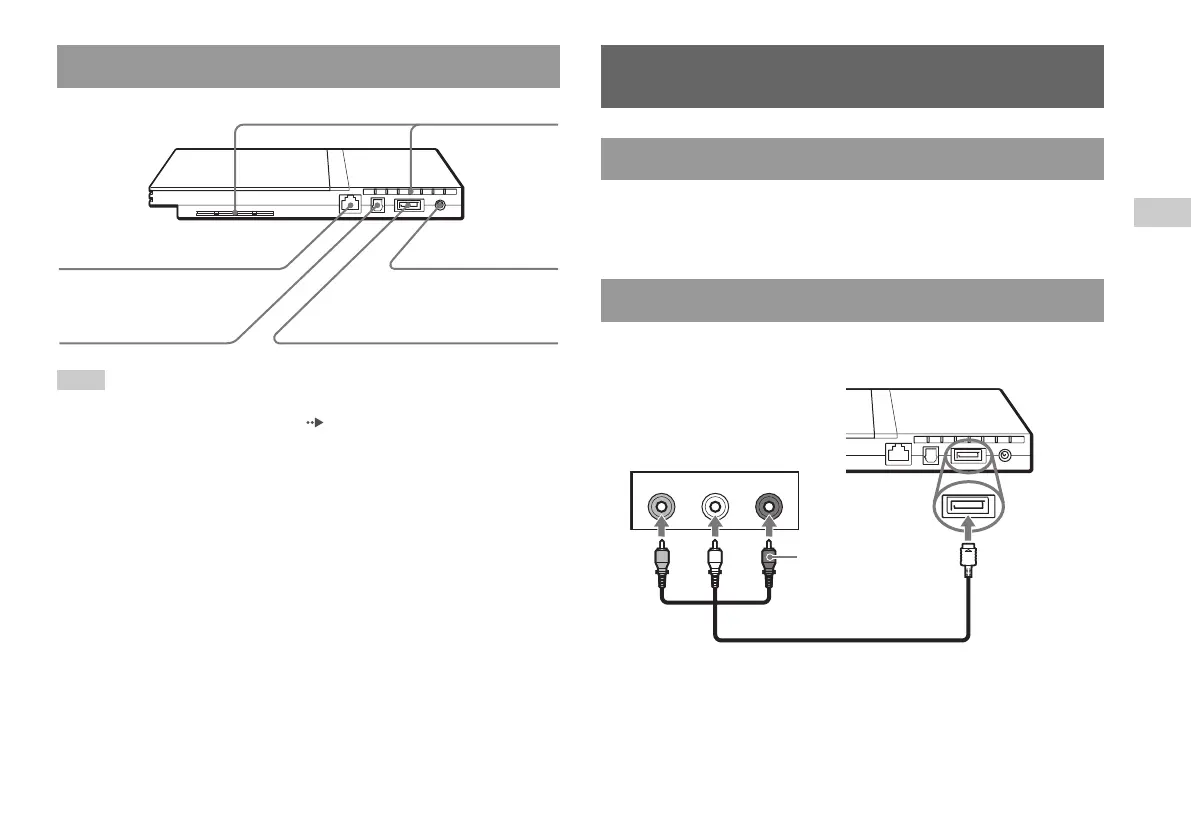

PlayStation ® 2 console rear
• Do not plug the AC power cord for the console into the electrical
outlet until you have made all other connections.
• Check that the TV is turned off.
Connect the console to the TV as shown below.
Connecting to a TV using the supplied AV Cable
Before connecting
Connecting to a TV
GB
Preparation
Rear vent
! DC IN 8.5v
connector
AV MULTI OUT connector
DIGITAL OUT (OPTICAL)
connector
NETWORK connector
VIDEO L-AUDIO-R
Audio and video inputs of the TV
Do not use when
connecting to a
monaural TV.
To the AV MULTI
OUT connector
AV Cable (integrated audio/video)
Console rear
White RedYellow
