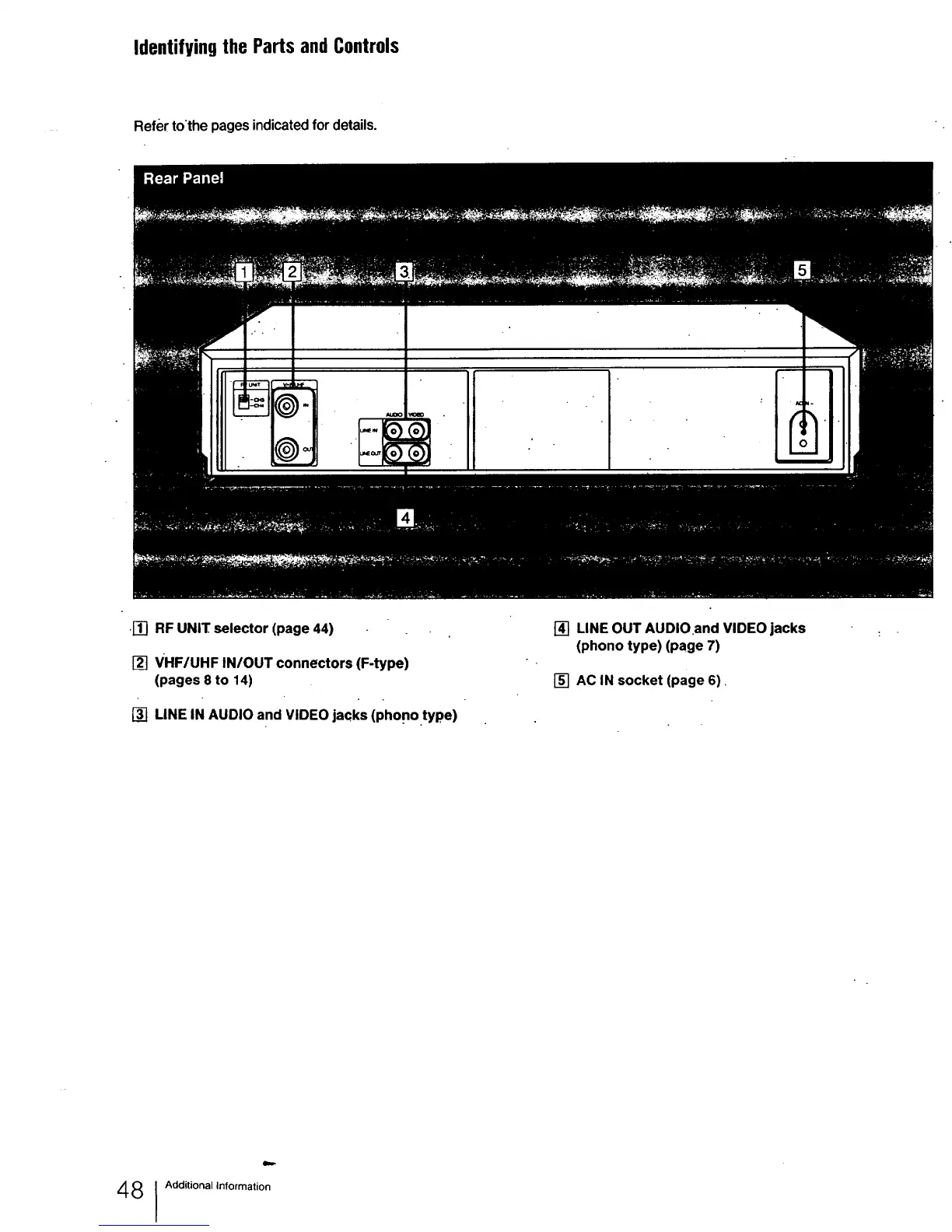

Identifyingthe Parts andControls
Refer tothe pages indicated for details.
•J-_ RF UNIT. selector (page 44)
[] VHF/UHF IN/OUT connectors (F-type)
(pages 8 to 14)
[] LINE IN AUDIO and VIDEO jacks (phonotype)
[] LINE OUT AUDIO.and VIDEO jacks
(phono type) (page 7)
[] AC IN socket (page 6).
48
I Additional Information
