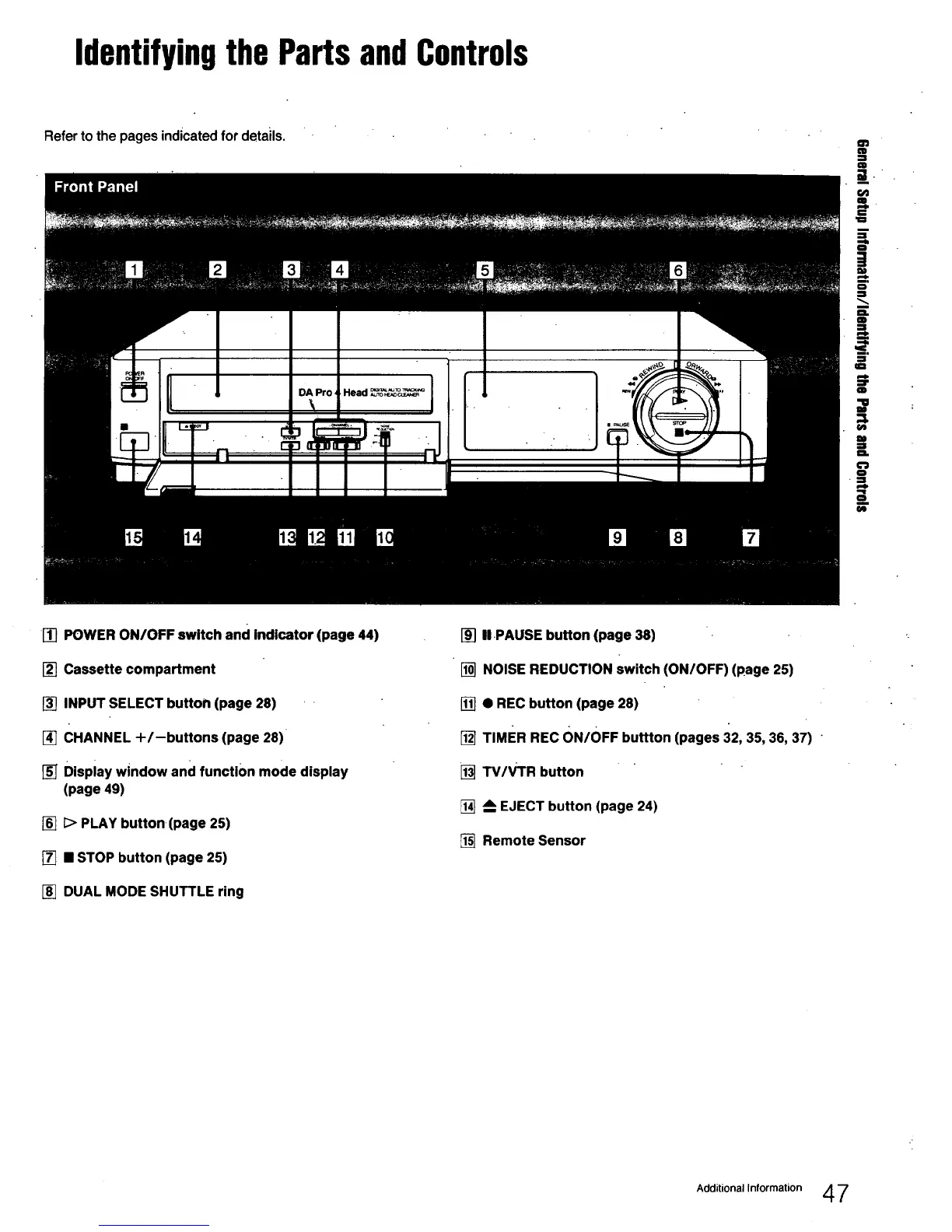

Identifyingthe PartsandControls
Refer to the pages indicated for details.
[] POWER ON/OFF switch and Indicator (page 44)
=
=_.
i"
=
m
==
==.
=
[] Cassette compartment
[] INPUT SELECT button (page 28) •
[] CHANNEL +/-buttons (page 28)
[] Display window and function mode display
(page 49)
[] [_>PLAY button(page 25)
[] • STOP button (page 25)
[] DUAL MODE SHUTTLE ring
[] II.PAUSE button (page 38)
[] NOISE REDUCTION switch (ON/OFF) (page 25)
[] • REC button (page 28)
[] TIMER REC 0N/OFF buttton (pages 32, 35, 36, 37)
[] "rV/VTR button
[] _ EJECT button (page 24)
[] Remote Sensor
Additional Information 4 7
