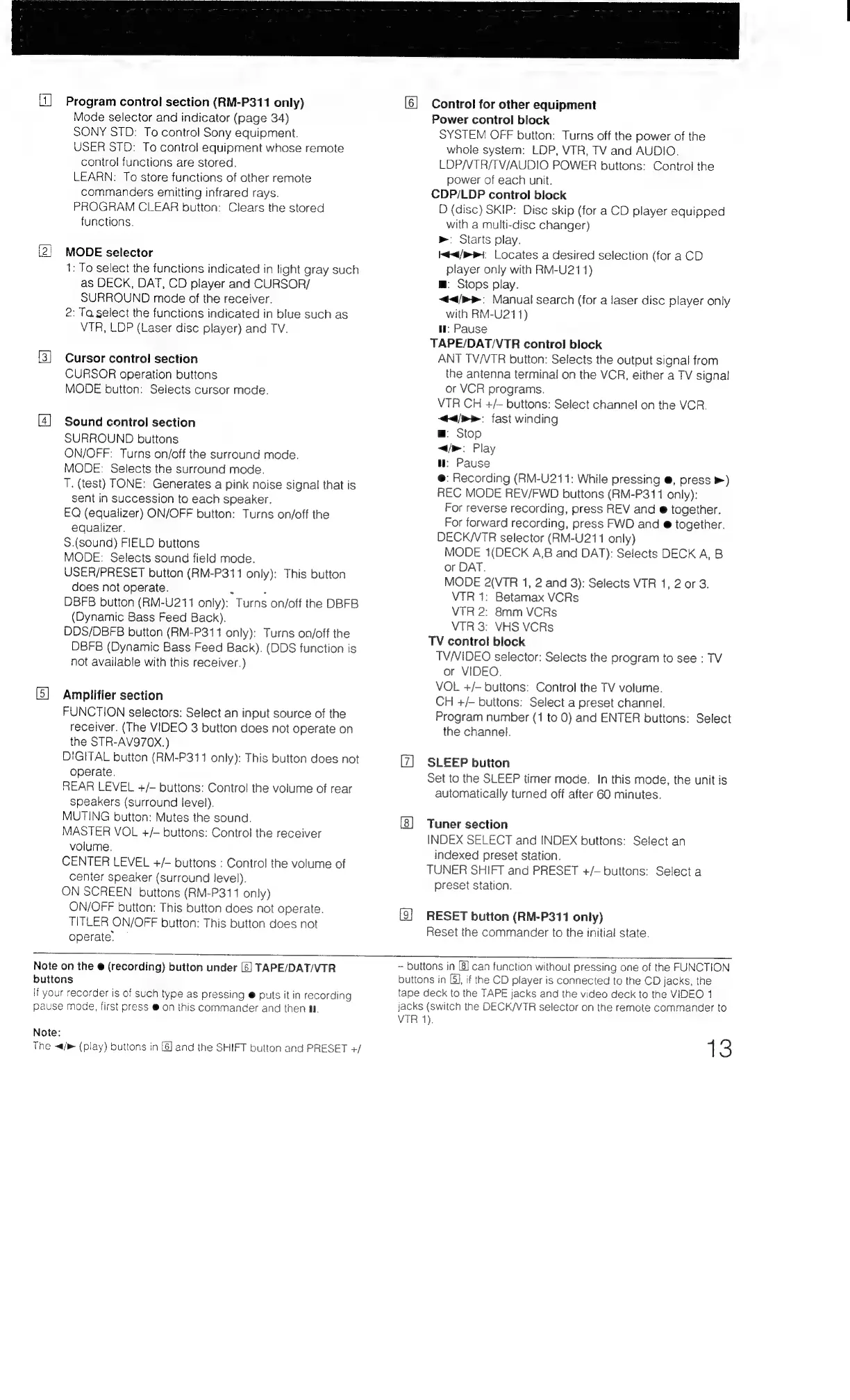

Sony STR-AV970X - Page 13

Program control section (RM-P311 only)
Mode selector and indicator (page 34)
SONY STD: To control Sony equipment.
USER STD: To control equipment whose remote
conirol functions are stored.
LEARN: To store functions of other remote
commanders emitting infrared rays.
PROGRAM CLEAR button: Clears the stored
functions.
2] MODE selector
1: To select the functions indicated in light gray such
as DECK, DAT, CD player and CURSOR/
SURROUND mode of the receiver.
2: Ta gelect the functions indicated in blue such as
VTR, LDP (Laser disc player) and TV.
[3] Cursor control section
CURSOR operation buttons
MODE button: Selects cursor mcede.
Sound control section
SURROUND buttons
ON/OFF: Turns on/off the surround mode.
MODE: Selects the surround mode.
T. (test) TONE: Generates a pink noise signal that is
sent in succession to each speaker.
EQ (equalizer) ON/OFF button: Turns on/off the
equalizer.
S.(sound) FIELD buttons
MODE: Selects sound field mode.
USER/PRESET button (RM-P311 only): This button
does not operate. 5 ‘
DBFB button (RM-U211 only): Turns on/off the DBFB
(Dynamic Bass Feed Back).
DDS/DBFB button (RM-P311 only): Turns on/off the
DBFB (Dynamic Bass Feed Back). (DDS function is
not available with this receiver.)
Amplifier section
FUNCTION selectors: Select an input source of the
receiver. (The VIDEO 3 button does not operate on
the STR-AV970X.)
DIGITAL
button
(RM-P311
only):
This
button
does
not
operate.
REAR LEVEL +/- buttons: Control the volume of rear
speakers (surround level).
MUTING button: Mutes the sound.
MASTER VOL +/- buttons: Control the receiver
volume.
CENTER LEVEL +/- buttons : Control the volume of
center speaker (surround level).
ON SCREEN buttons (RM-P311 only)
ON/OFF button: This button does not operate.
TITLER ON/OFF button: This button does not
operate.
[6] Control for other equipment
Power control block
SYSTEM OFF button: Turns off the power of the
whole system: LDP, VTR, TV and AUDIO.
LDPNVTR/TV/AUDIO POWER buttons: Control the
power of each unit.
CDP/LDP control block
D (disc) SKIP: Disc skip (for a CD player equipped
with a multi-disc changer)
>: Starts play.
Ht</pe: Locates a desired selection (for a CD
player only with RM-U211)
m@: Stops play.
</>: Manual search (for a laser disc player only
with RM-U211)
i: Pause
TAPE/DAT/VTR control block
ANT
TV/VTR
button:
Selects
the
output
signal
from
the antenna terminal on the VCR, either a TV signal
or VCR programs.
VTR CH +/- buttons: Select channel on the VCR.
</>: fast winding
m: Stop
</>: Play
ll: Pause
@: Recording (RM-U211: While pressing @, press >)
REC MODE REV/FWD buttons (RM-P311 only):
For reverse recording, press REV and @ together.
For forward recording, press FWD and @ together.
DECK/VTR selector (RM-U211 only)
MODE 1(DECK A,B and DAT): Selects DECK A, B
or DAT.
MODE 2(VTR 1, 2 and 3): Selects VTR 1, 2 or 3.
VTR 1: Betamax VCRs
VTR 2: 8mm VCRs
VTR 3: VHS VCRs
TV control block
TV/VIDEO selector: Selects the program to see : TV
or VIDEO.
VOL +/- buttons: Control the TV volume.
CH +/- buttons: Select a preset channel.
Program number (1 to 0) and ENTER buttons: Select
the channel.
SLEEP button
Set to the SLEEP timer mode. In this mode, the unit is
automatically turned off after 60 minutes.
Tuner section
INDEX SELECT and INDEX buttons: Select an
indexed preset station.
TUNER SHIFT and PRESET +/- buttons: Select a
preset station.
[9] RESET button (RM-P311 only)
Reset the commander to the initial state.
Note
on
the
@
(recording)
button
under
[6]
TAPE/DAT/VTR
buttons
If
your
recorder
is
of
such
type
as
pressing
@
puts
it
in
recording
pause
mode,
first
press
@
on
this
commander
and
then
Wh.
Note:
The
~4/»
(play)
buttons
in
[6]
and
the
SHIFT
button
and
PRESET
+/
~ buttons in [8] can function without pressing one of the FUNCTION
buttons in [5], if the CD player is connected to the CD jacks, the
tape deck to the TAPE jacks and the video deck to the VIDEO 1
jacks (switch the DECK/VTR selector on the remote commander to
VTR 1).
