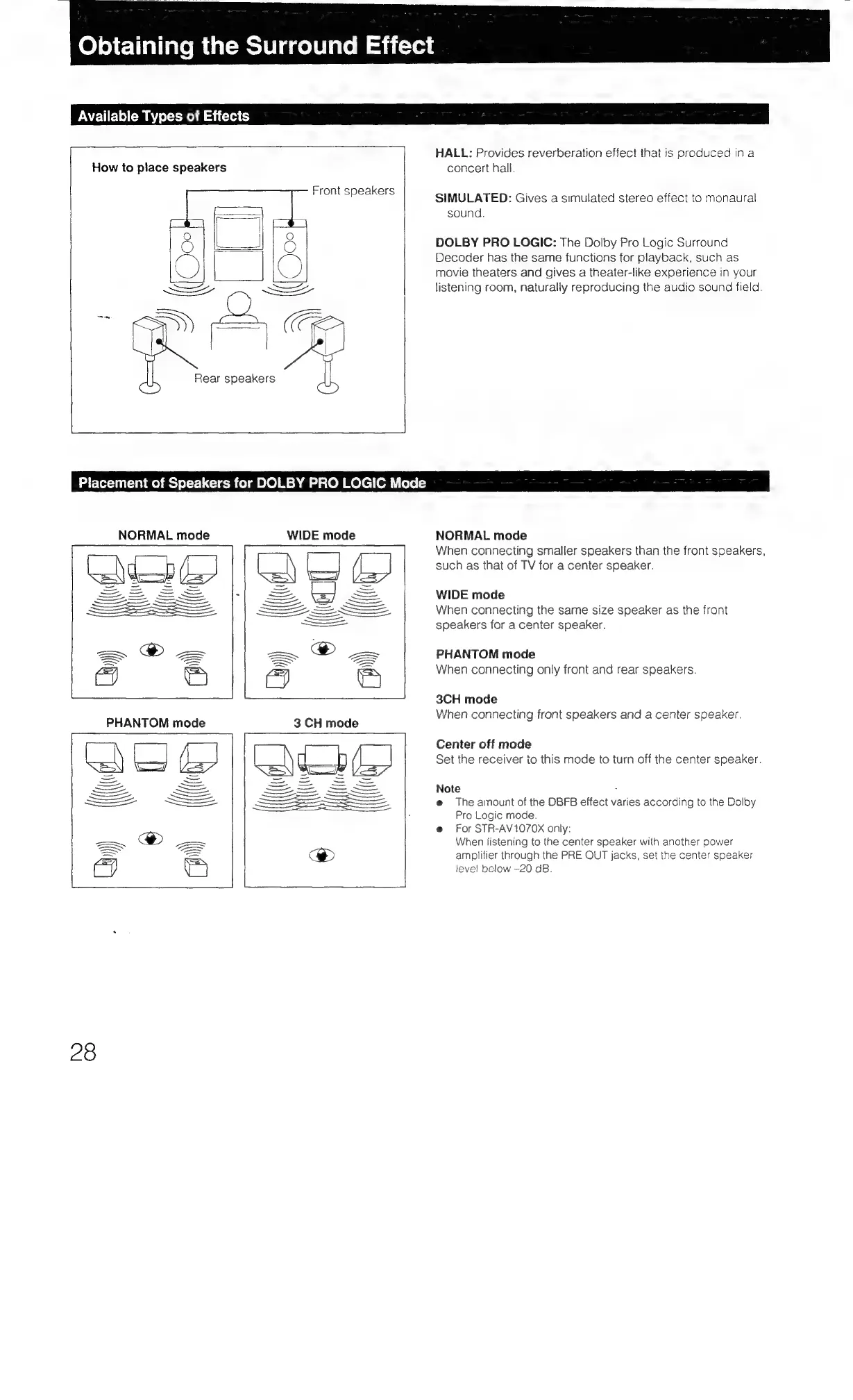

Sony STR-AV970X - Obtaining the Surround Effect; Available Surround Effects; Speaker Placement for DOLBY PRO LOGIC

oye tTinliare Mint=molelenolelalem —ta(cred|
Available Types of Effects
How to place speakers
Rear speakers
Front speakers
ey
HALL: Provides reverberation effect that is produced in a
concert hall.
SIMULATED: Gives a simulated stereo effect to monaural
sound.
DOLBY PRO LOGIC: The Dolby Pro Logic Surround
Decoder has the same functions for playback, such as
movie theaters and gives a theater-like experience in your
listening room, naturally reproducing the audio sound field.
Placement of Speakers for DOLBY PRO LOGIC Mode
WIDE mode
NORMAL mode
== ==
ESS SSS
= ®© &
=
PHANTOM mode
= =
== SS
SS OEEEE
= ez
“el SG
Ee!
3 CH mode
bt Le)
—s = = =
ee ae
<>
28
NORMAL mode
When connecting smaller speakers than the front speakers,
such as that of TV for a center speaker.
WIDE mode
When connecting the same size speaker as the front
speakers for a center speaker.
PHANTOM mode
When connecting only front and rear speakers.
3CH mode
When connecting front speakers and a center speaker.
Center off mode
Set the receiver to this mode to turn off the center speaker.
Note
e The amount of the DBFB cece varies according to the Dolby
Pro Logic mode.
@ For STR-AV1070X only:
When listening to the center speaker with another power
amplifier through the PRE OUT jacks, set the center speaker
level below -20 dB.
