Sony STR-AV970X - FM Antenna Connection; AM Antenna Connection

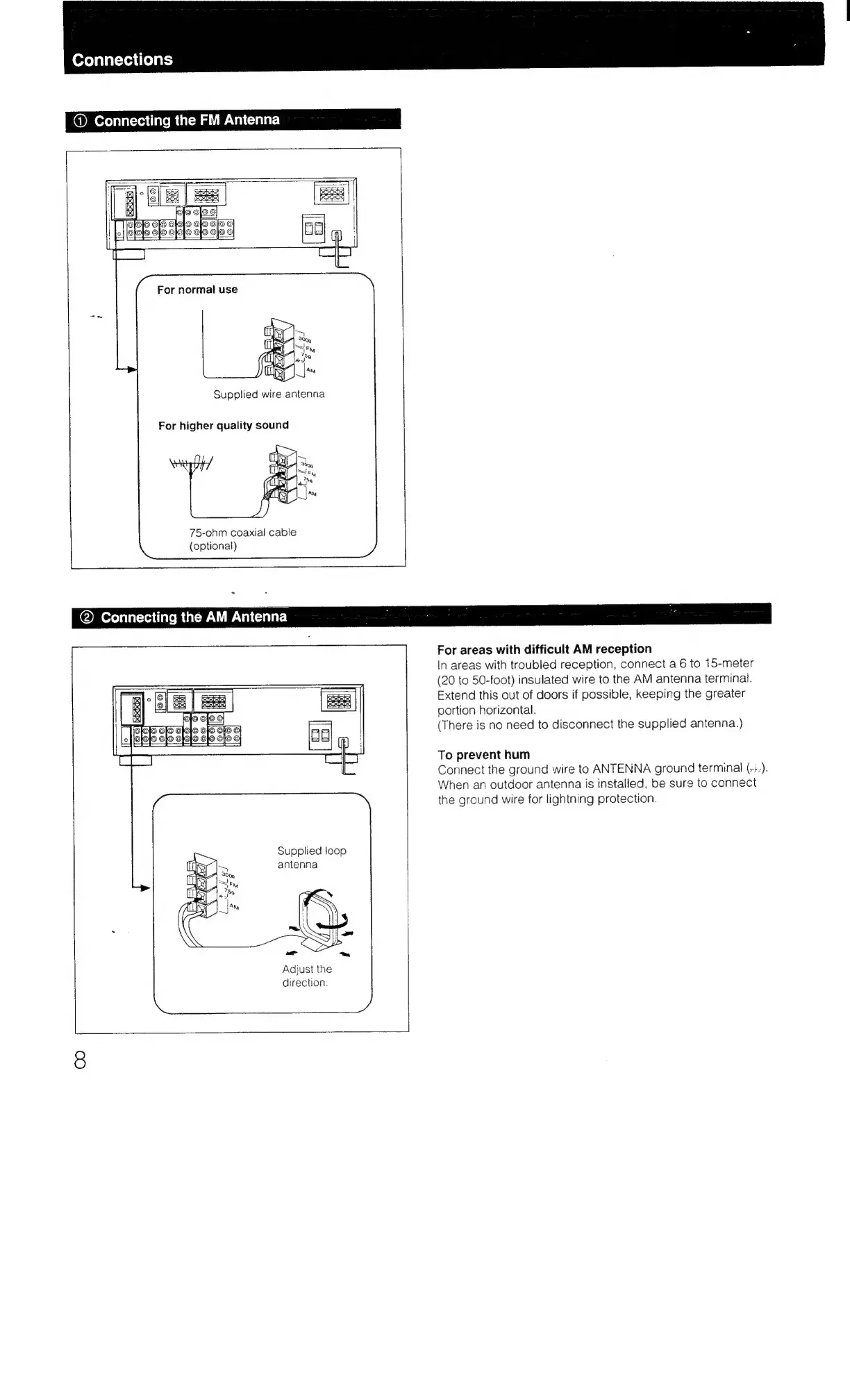

Connections
@
Connecting
the
FM
Antenna
For normal use
Supplied wire antenna
For higher quality sound
75-ohm coaxial cable
(optional)
tl
>
Al
lal
Sop
DO OFS OfAIO OfO OO O}
CLOPO OfO GfGJO Of CFO OF
Supplied loop
antenna
Adjust the
direction.
For areas with difficult AM reception
In areas with troubled reception, connect a 6 to 15-meter
(20
to
50-foot)
insulated
wire
to
the
AM
antenna
terminal.
Extend this out of doors if possible, keeping the greater
portion horizontal.
(There is no need to disconnect the supplied antenna.)
To prevent hum
Connect
the
ground
wire
to
ANTENNA
ground
terminal
(-+,).
When
an
outdoor
antenna
is
installed,
be
sure
to
connect
the
ground
wire
for
lightning
protection.
