Hooking Up the System

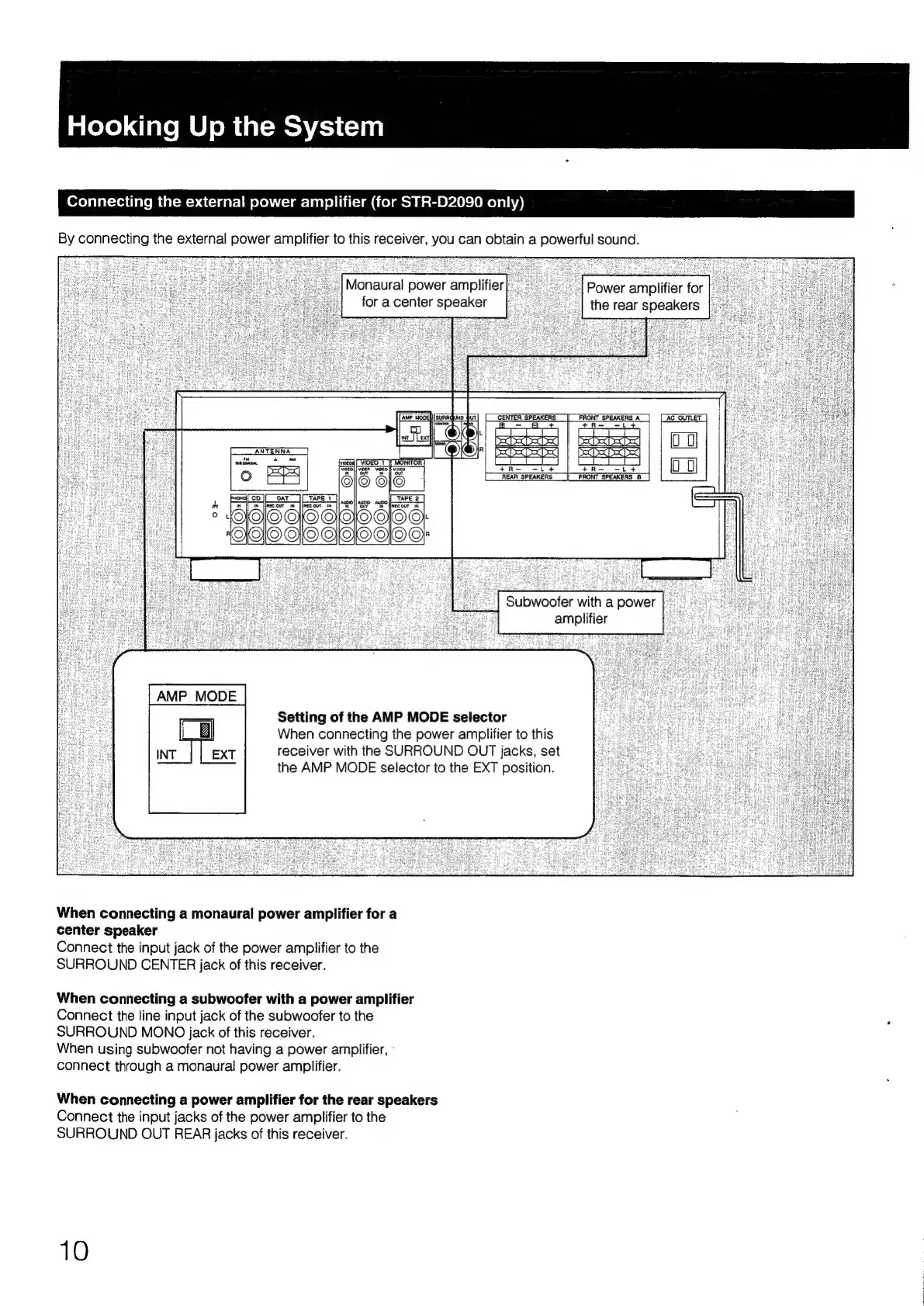

Connecting the external power amplifier (for STR-D2090 only)
By connecting the external power amplifier to this receiver, you can obtain a powerful sound.
Monaural power amplifier} Power amplifier for
foracenter speaker |. the rear speakers
ANTENNA
=e
mee
ordi co [OAT (TAPE Tool,
@
| Subwoofer with a power :
oe amplifier
AMP MODE
Setting of the AMP MODE selector
When connecting the power amplifier to this
receiver with the SURROUND OUT jacks, set
the AMP MODE selector to the EXT position.
When connecting a monaural power amplifier for a
center speaker
Connect the input jack of the power amplifier to the
SURROUND CENTER jack of this receiver.
When connecting a subwoofer with a power amplifier
Connect the line input jack of the subwoofer to the
SURROUND MONO jack of this receiver.
When using subwoofer not having a power amplifier, -
connect through a monaural power amplifier.
When connecting a power amplifier for the rear speakers
Connect the input jacks of the power amplifier to the
SURROUND OUT REAR jacks of this receiver.
10
